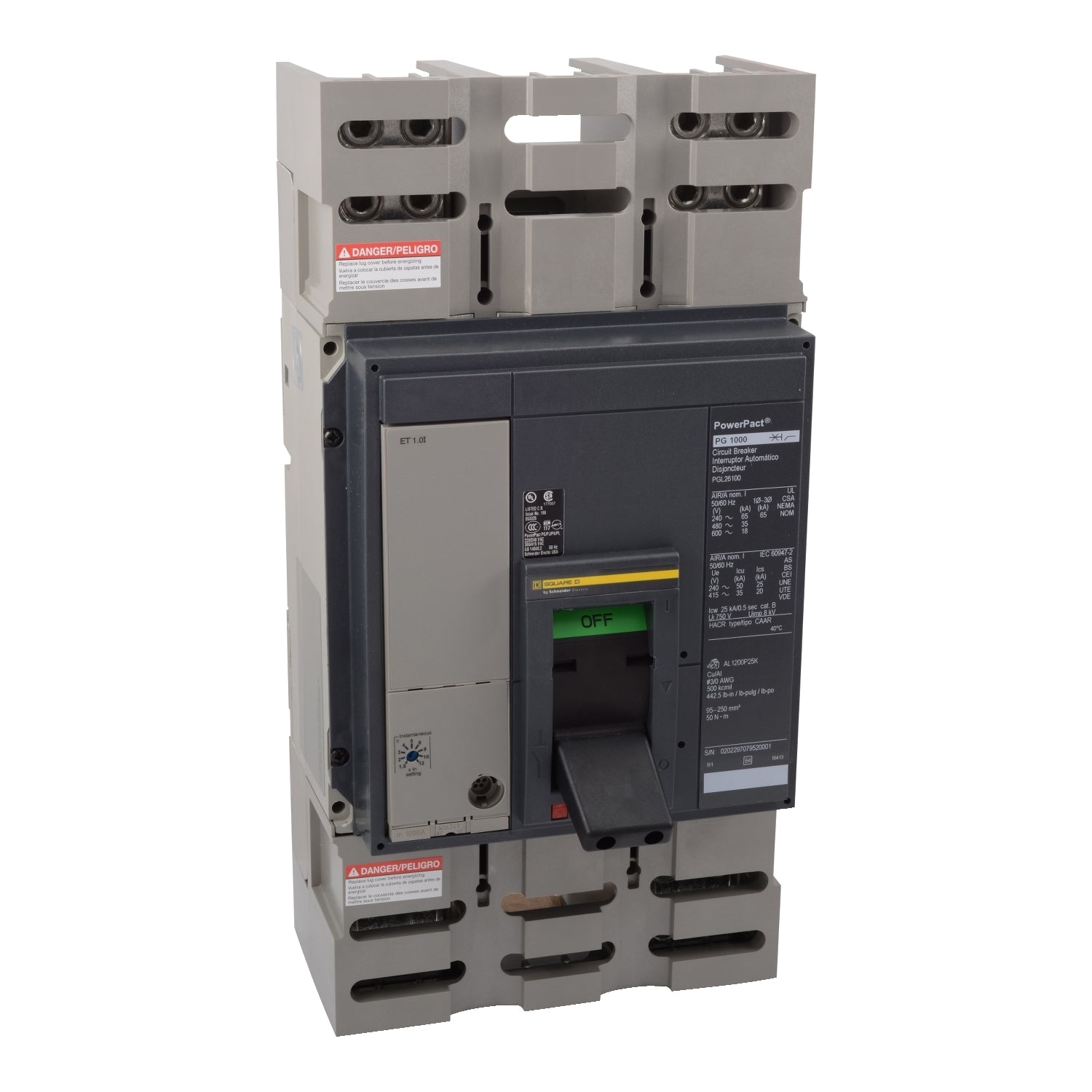

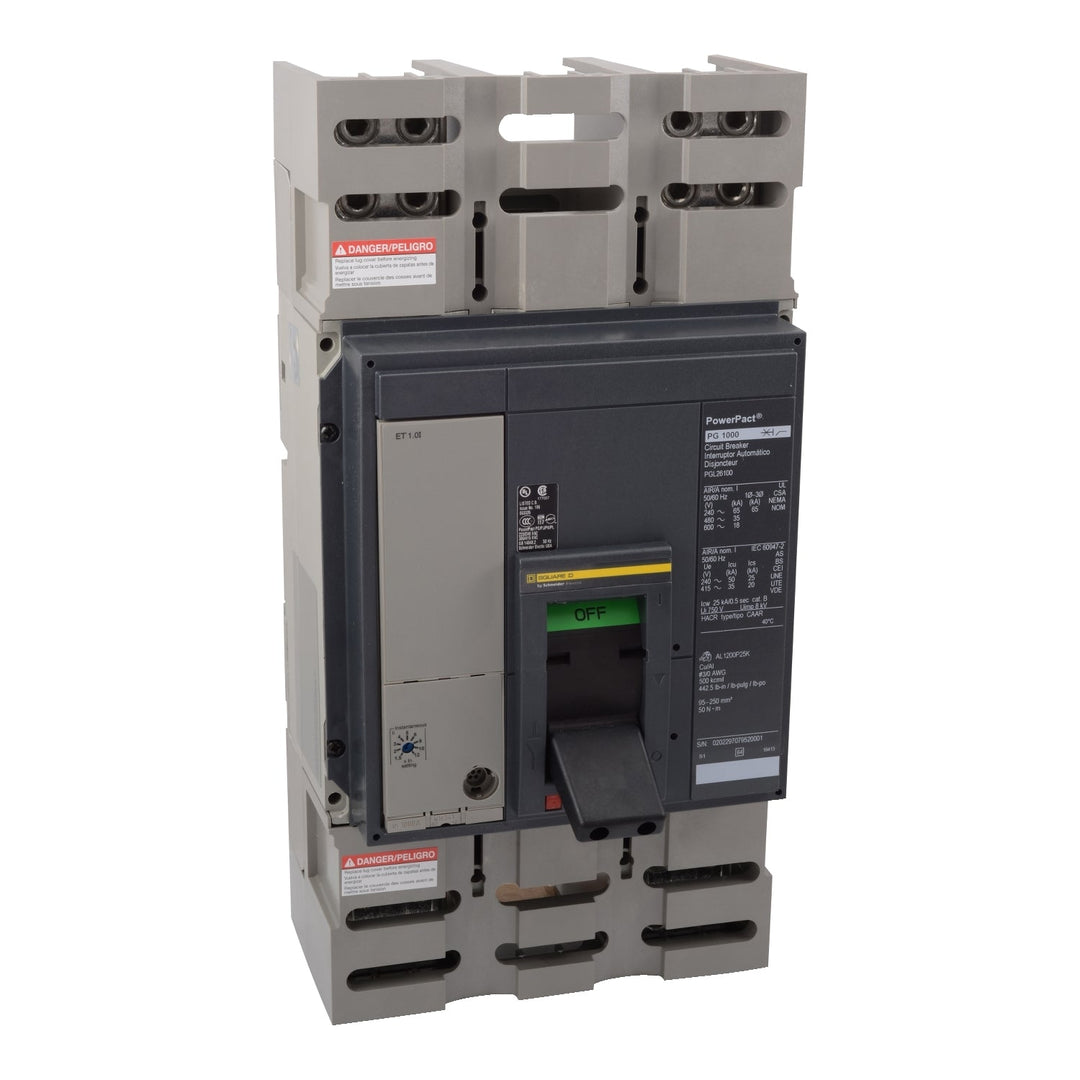

Square D PJL36100U31A - Molded Case Circuit Breaker 1000A 600V
Square D PJL36100U31A - Molded Case Circuit Breaker 1000A 600V

Square D PJL36100U31A - Molded Case Circuit Breaker 1000A 600V

Square D
Price
Save $9,382.33
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
The Square D PJL36100U31A is a 3-pole molded case circuit breaker from the Powerpact family, designed to provide long-time and instantaneous (LI) trip protection for industrial distribution equipment. It is rated for 1000A continuous current at 600VAC, with an interrupting capacity of 65kA at 480V, and supports 3-phase systems. The unit measures 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (H x W x D), weighs 32 lb, and features a feed-thru connection with wire size accommodating 4 x AWG 3/0 to 500 kcmil aluminum or copper. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, and is certified for use in environments with a temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include main or feeder protection in switchboards, panelboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded case circuit breaker, Powerpact family, LI trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 1000A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Main or feeder protection in industrial switchboards, panelboards, and control panels
  • Switch Type: Circuit breaker
  • Configuration: 3-pole
  • Coil Voltage Maximum: Not applicable (thermal-magnetic)
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: 16.16 in x 8.27 in x 8.05 in
  • Phase: 3
  • Voltage: 600V
  • Amperage: 1000A
  • AIC rating: 65kA@480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Long-Time and Instantaneous (LI)
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: Powerpact
  • Trip Type: Thermal-magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: 500 kcmil maximum
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 1000A
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: 1000A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Amperage Maximum: 1000A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: Powerpact
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Powerpact
  • Current Rating: 1000A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901869474
  • GTIN: 00785901869474
