Square D PJA36120U64AE1 - Molded Case Circuit Breaker 1200A 600V
Square D PJA36120U64AE1 - Molded Case Circuit Breaker 1200A 600V

Square D PJA36120U64AE1 - Molded Case Circuit Breaker 1200A 600V

Square D
Price
Save $-20,842.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

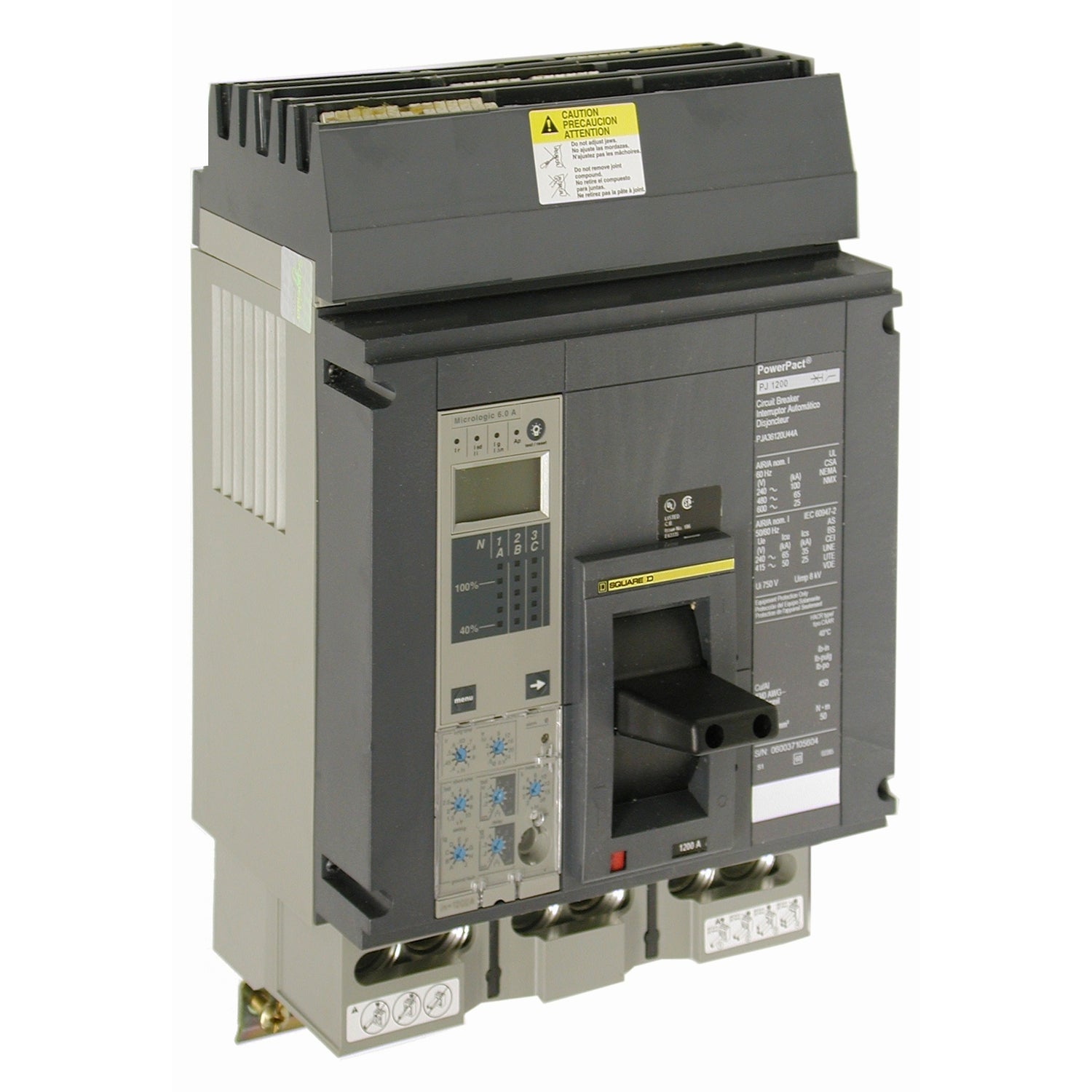

Square D PJA36120U64AE1 is a Powerpact molded case circuit breaker from Schneider Electric designed for solid-state protection of electrical systems. It carries a 600V voltage rating and a 1200A current rating, with an AIC rating of 65kA at 480V, and operates on a 3-phase system. The unit measures 16.16 in x 8.27 in x 8.05 in (410.46 mm x 210.06 mm x 204.47 mm), weighs 32 lb, and features an I-Line style plug-in connection with AL800M23K terminal connections, accommodating wire sizes from 4 x AWG 3/0 to 500 kcmil aluminum/copper. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with certifications from UL, CSA, and NOM, and operates within a temperature range of 13-158 °F (-25-70 °C). This circuit breaker is typically applied in industrial settings requiring LSIG (Long Time, Short Time, Instantaneous and Ground Fault) protection functions within a P Frame size.

Key Features & Specifications
  • Type: Powerpact PJA molded case circuit breaker, solid state protection, I-Line style plug-in connection
  • Voltage Rating: 600V
  • Current Rating: 1200A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution requiring LSIG protection
  • Switch Type: Molded case circuit breaker
  • Configuration: 3-pole
  • Coil Voltage Maximum: Not specified
  • Temp Rating: 13-158 °F (-25-70 °C)
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 600V
  • Amperage: 1200A
  • AIC rating: 65kA@480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: LSIG - Long Time, Short Time, Instantaneous and Ground Fault
  • Frame Size: P Frame
  • Trip Type: Solid state
  • Panel Type: Not specified
  • Breaker Type: Powerpact PJA
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: Not specified
  • MCM Size: 500 kcmil maximum
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: I-Line style plug-in
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: 1200A
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: 1200A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not specified
  • Wire: 4 x AWG 3/0...500 kcmil aluminum/copper
  • Amperage Maximum: 1200A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: I-Line style plug-in
  • Terminal Connection: AL800M23K
  • Frequency Rating: Not specified
  • Phase Connection: 3-phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: P Frame
  • Installation Type: I-Line style plug-in
  • Item QTY: 1
  • Nema Starter Size: Not specified
  • Breaker Frame: P Frame
  • Current Rating: 1200A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: 762179035831
  • GTIN: 03606486285473
