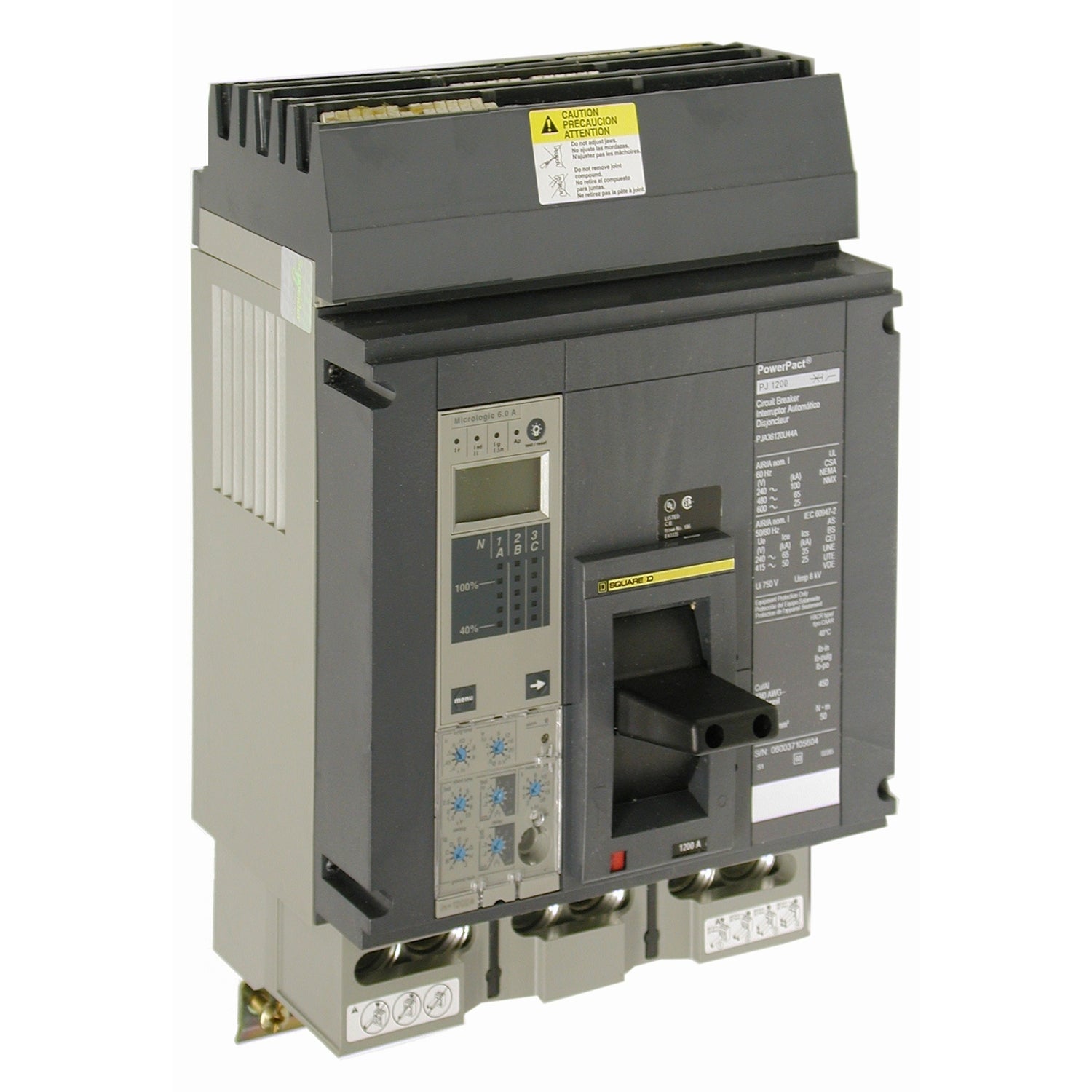

Square D PJA36120U44AYP - 1200A 3-Pole Molded Case Breaker (600V)
Square D PJA36120U44AYP - 1200A 3-Pole Molded Case Breaker (600V)

Square D PJA36120U44AYP - 1200A 3-Pole Molded Case Breaker (600V)

Square D
Price
Save $-13,997.85
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D PJA36120U44AYP is a three-pole, 1200A molded case circuit breaker from the Powerpact family, designed for primary overcurrent and ground fault protection in industrial power distribution systems. It operates at a maximum voltage rating of 600V AC with a 65kA interrupting capacity at 480V, utilizing a solid-state LSIG trip unit for long-time, short-time, instantaneous, and ground fault protection. This P Frame breaker features an I-Line style plug-in connection with AL800M23K terminals, measures 12.86 inches in height, 8.27 inches in width, and 8.05 inches in depth, and weighs 32 lb. It is certified to CE, UL, CSA, NEMA, NOM, IEC, and RoHS standards, with an operating temperature range of 13 to 158 °F (-25 to 70 °C). Typical applications include main or feeder protection in switchboards, panelboards, and motor control centers in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Trip, LSIG Protection
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Dimensions: Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
  • Standards: CE, UL, CSA, NEMA, NOM, IEC, RoHS
  • Applications: Main or feeder protection in switchboards, panelboards, motor control centers
  • Poles: 3
  • Connection: I-Line Style Plug-In
  • AIC Rating: 65kA@480V
  • Phase: 3
  • Frame Size: P Frame
  • Trip Type: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Terminal Connection: AL800M23K
  • Temp Rating: 13-158 °F (-25-70 °C)
  • Weight: 32 lb
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 762179035732
  • GTIN: 00785901282273
