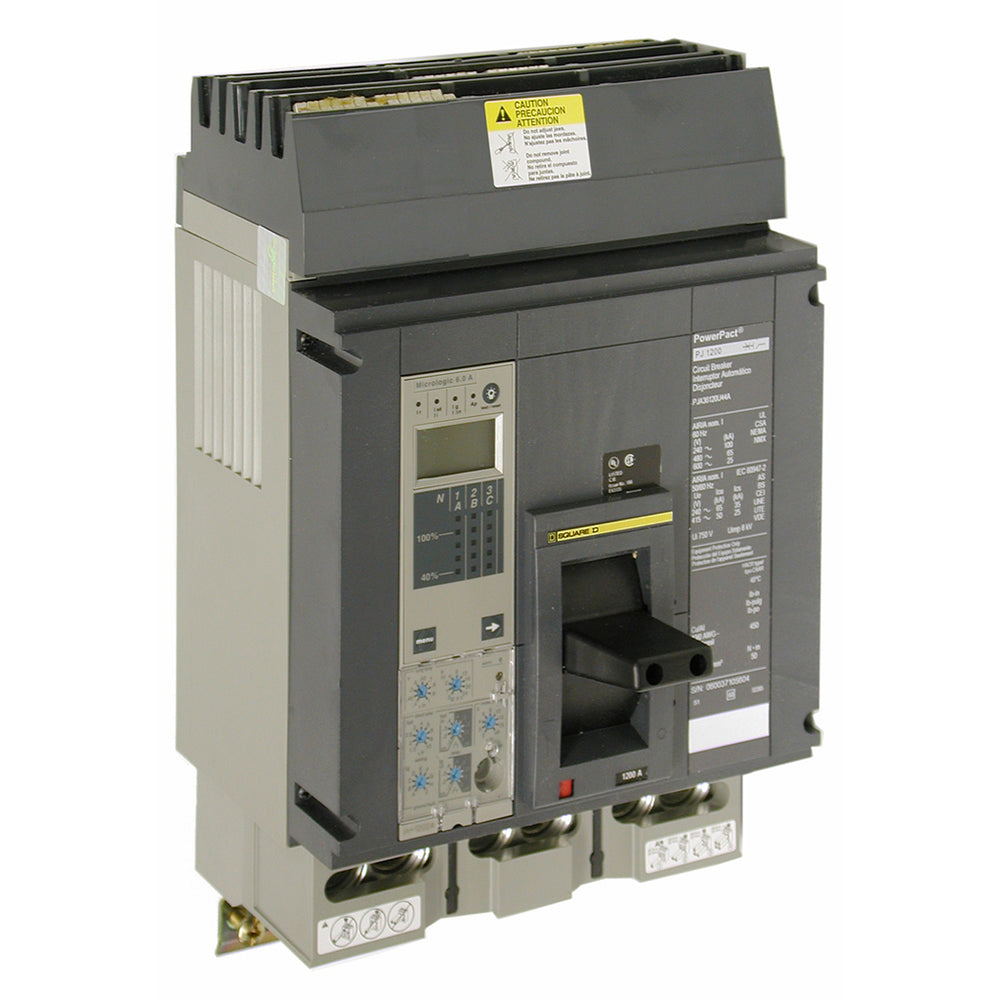

The Square D PJA36100U64AE1 is a 3-pole molded case circuit breaker from the Powerpact family, designed for primary overcurrent and ground fault protection in industrial power distribution systems. It is rated for 600V AC, 1000A continuous current, and delivers a 65kA interrupting capacity at 480V AC, utilizing a solid-state trip unit with LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault) protection functions. The breaker features an I-Line style plug-in connection, a P Frame size, and accommodates 4 x AWG 3/0 to 500 kcmil aluminum or copper conductors via AL800M23K terminals, with dimensions of 16.16 in x 8.27 in x 8.05 in (H x W x D) and a weight of 32 lb. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, and is certified for operation within a temperature range of 13 to 158 °F (-25 to 70 °C). This breaker is suited for main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers requiring high-current solid-state protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Powerpact PJA Series, Solid State Trip
  • Voltage Rating: 600V AC
  • Current Rating: 1000A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Main or feeder protection in industrial switchboards, panelboards, and motor control centers
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA@480V
  • Connection: I-Line Style Plug-In
  • Protection: Solid State, LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault)
  • Frame Size: P Frame
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Terminal Connection: AL800M23K
  • Temp Rating: 13-158 °F (-25-70 °C)
  • Weight: 32 lb
  • Certification: UL, CSA, NOM
  • Country of Origin: United States


Product Identification
  • UPC: 762179033899
  • GTIN: 03606486285442
