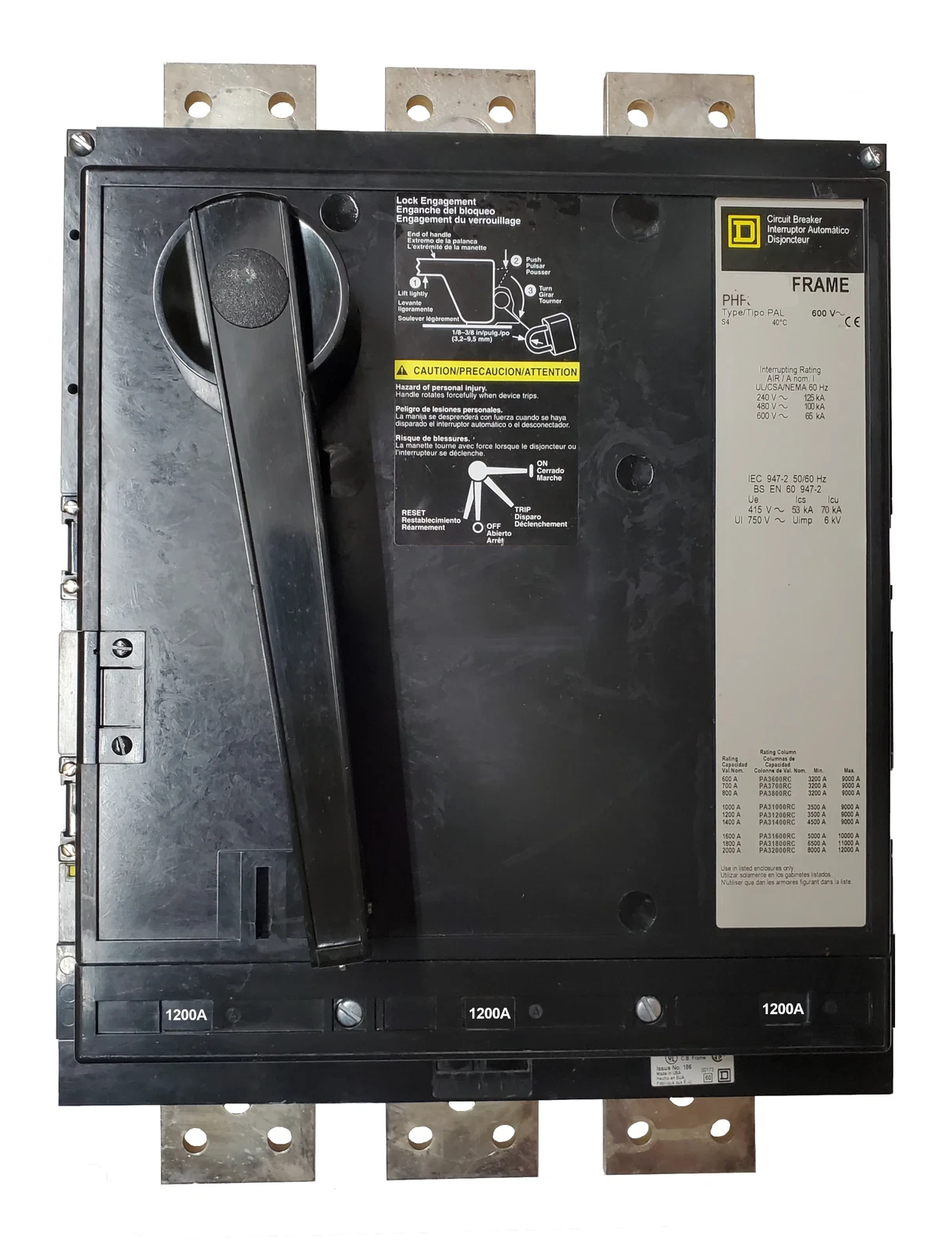

Square D PHF361200 is a three-pole molded case circuit breaker designed for primary overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 1200A continuous current, with a 100kA interrupting capacity at 480V AC. This P Frame breaker features a bolt-on connection, thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions, and weighs 90 lb. It complies with applicable UL and NEMA standards for industrial circuit protection. Typical applications include main or feeder protection in switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, P Frame
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • AIC rating: 100kA@480V
  • Phase: 3
  • Functions: LI - Long-Time and Instantaneous
  • Weight: 90 lb
  • Additional Info: This item does not include lugs.


Product Identification
  • UPC: 762179022411
