Square D PGP36120U31A - Molded Case Breaker 1200A 600V
Square D PGP36120U31A - Molded Case Breaker 1200A 600V

Square D PGP36120U31A - Molded Case Breaker 1200A 600V

Square D
Price
Save $8,360.93
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

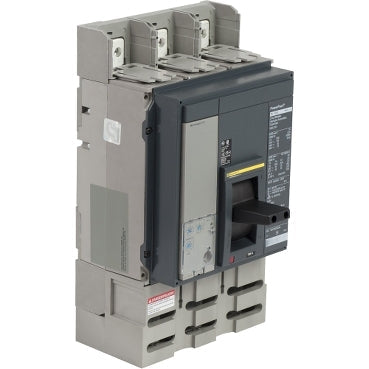

The Square D PGP36120U31A is a 3-pole molded case circuit breaker from the Powerpact family, designed to provide solid-state protection with long time and instantaneous trip functions for industrial power distribution systems. It is rated for 1200A at 600VAC, with an AIC rating of 35kA at 480V, and supports 3-phase operation with a bolt-on connection. This unit measures 16.16 inches in height, 8.27 inches in width, and 8.05 inches in depth, weighing 32 lb, and accepts wire sizes from 4 x AWG 3/0 to 500 kcmil for aluminum or copper conductors. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, and is manufactured in Mexico by Schneider Electric. Typical applications include main or feeder protection in industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Trip
  • Voltage Rating: 600V
  • Current Rating: 1200A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, main and feeder protection
  • Poles: 3
  • Phase: 3
  • Connection: Bolt-On
  • Protection: Solid State (Long Time and Instantaneous Trip)
  • AIC rating: 35kA@480V
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Certification: UL, CSA, NOM
  • Weight: 32 lb
  • Family: Powerpact
  • Item Subcategory: Molded Case
  • Country of Origin: Mexico


Product Identification
  • GTIN: 03606486285305
