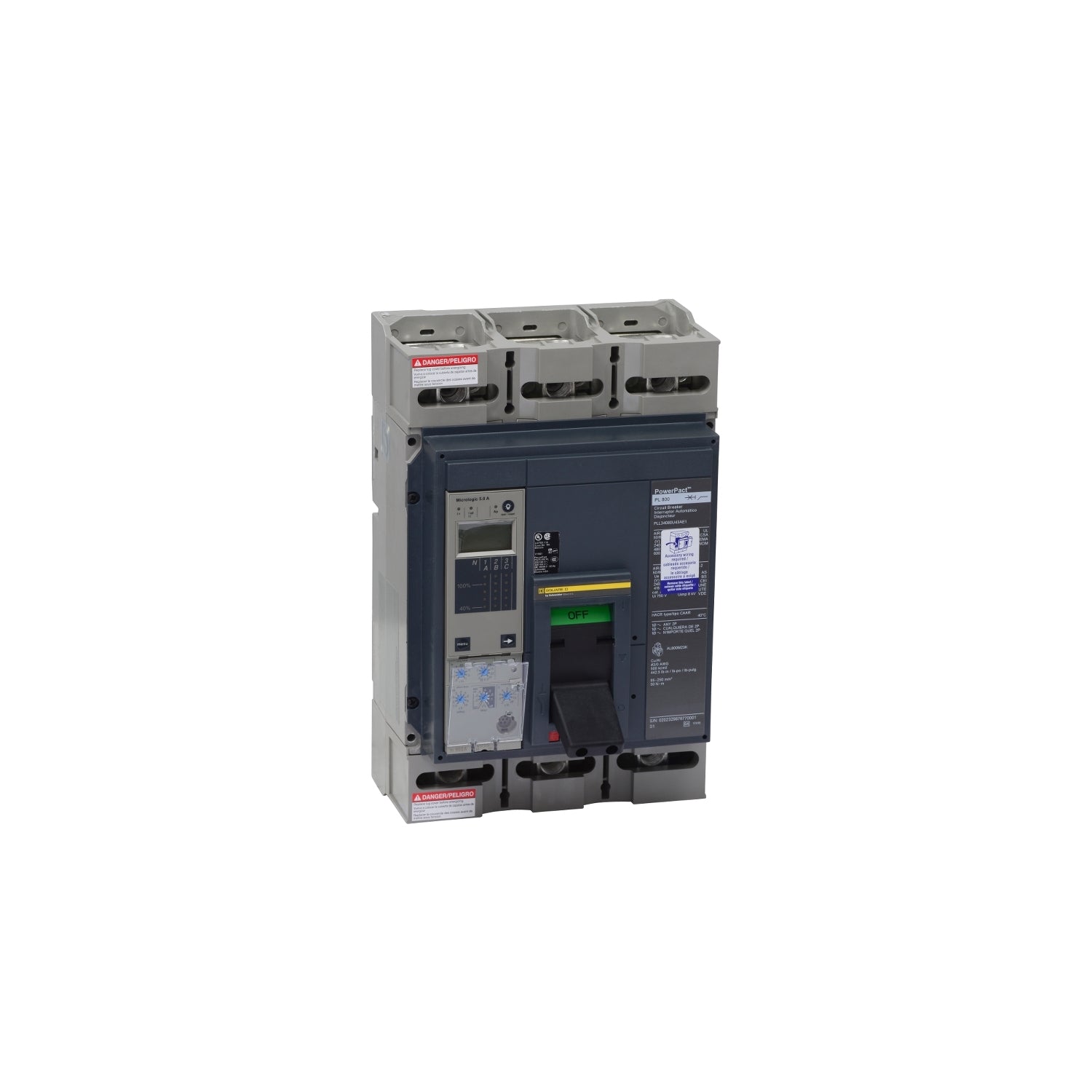

Square D PGL36060U43A - Molded Case 600A 600V LSI Trip
Square D PGL36060U43A - Molded Case 600A 600V LSI Trip

Square D PGL36060U43A - Molded Case 600A 600V LSI Trip

Square D
Price
Save $5,024.66
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D PGL36060U43A Circuit Breaker - Molded Case 600A 600V LSI Trip The Square D PGL36060U43A is a Powerpact molded case circuit breaker from Schneider Electric, designed for overcurrent protection in industrial power distribution systems. This three-phase unit is rated for 600V AC and 600A continuous current, with a 35kA interrupting capacity at 480V AC. The breaker features solid-state LSI (Long-Time, Short-Time, and Instantaneous) trip protection and a feed-thru connection, housed in a compact enclosure measuring 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) and weighing 32 lb. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). Typical applications include main or feeder protection in switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Powerpact family, solid-state trip
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, switchboards, panelboards, motor control centers
  • Switch Type: LSI - Long-Time, Short-Time and Instantaneous Trip
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not applicable (solid-state trip)
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: 12.86 in x 8.27 in x 8.05 in
  • Phase: 3
  • Voltage: 600V
  • Amperage: 600A
  • AIC rating: 35kA@480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Solid State
  • Functions: LSI - Long-Time, Short-Time and Instantaneous Trip
  • Frame Size: Powerpact
  • Trip Type: Solid State
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: 3 x AWG 3/0...500 kcmil aluminium/copper
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Not specified
  • Hz: Not specified
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: 3 x AWG 3/0...500 kcmil aluminium/copper
  • Amperage Maximum: 600A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: LSI
  • Wire Size: 3 x AWG 3/0...500 kcmil aluminium/copper
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Feed-Thru
  • Frequency Rating: Not specified
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: Powerpact
  • Installation Type: Not specified
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Powerpact
  • Current Rating: 600A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 3.60649E+12
