Square D PGF36100U31A - Molded Case Circuit Breaker 1000A 600V (3-Pole Solid State)
Square D PGF36100U31A - Molded Case Circuit Breaker 1000A 600V (3-Pole Solid State)

Square D PGF36100U31A - Molded Case Circuit Breaker 1000A 600V (3-Pole Solid State)

Square D
Price
Save $16,134.77
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

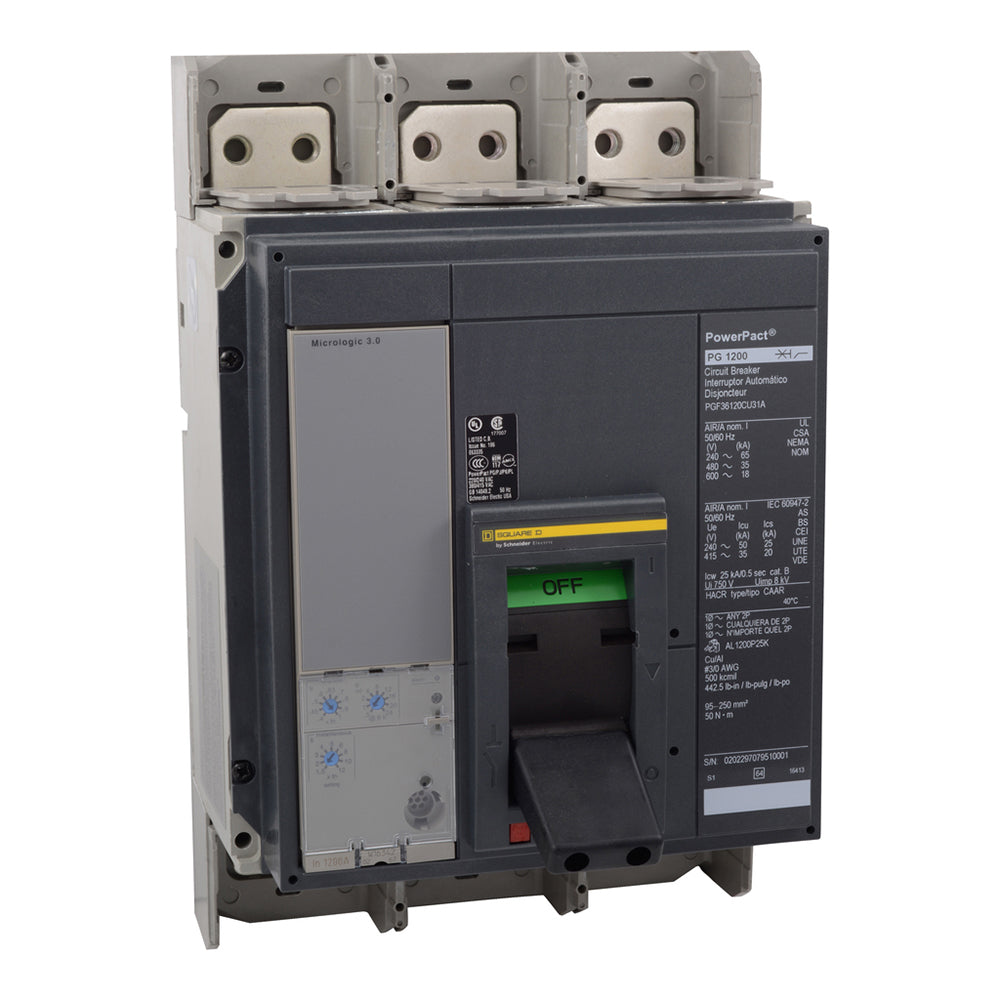

Square D PGF36100U31A is a 3-pole molded case circuit breaker designed to provide solid-state long-time and instantaneous (LI) protection for electrical systems. It is rated for 1000A at 600VAC and 35kA interrupting capacity at 480VAC, supporting 3-phase applications with a bolt-on connection. The unit measures 16.16 in x 8.27 in x 8.05 in (410.46 mm x 210.06 mm x 204.47 mm), weighs 32.03 lb, and accepts 4 x AWG 3/0 to 500 kcmil aluminum or copper wire. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with an operating temperature range of 28 to 158 °F (-2 to 70 °C). This breaker is typically used in industrial power distribution and motor control centers requiring high-current, solid-state protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Protection, LI (Long-Time and Instantaneous) Functions
  • Voltage Rating: 600V
  • Current Rating: 1000A
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, motor control centers, high-current protection
  • Switch Type: Not specified
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not specified
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 600V
  • Amperage: 1000A
  • AIC rating: 35kA@480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Solid State
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: Not specified
  • Trip Type: Solid State
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not specified
  • Control Voltage Maximum: Not specified
  • MCM Size: 500 kcmil
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Bolt-On
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not specified
  • Wire: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Amperage Maximum: 1000A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On
  • Frequency Rating: Not specified
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: Not specified
  • Installation Type: Bolt-On
  • Item QTY: Not specified
  • Nema Starter Size: Not specified
  • Breaker Frame: Not specified
  • Current Rating: 1000A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: 785901616771
  • GTIN: 785901616771
