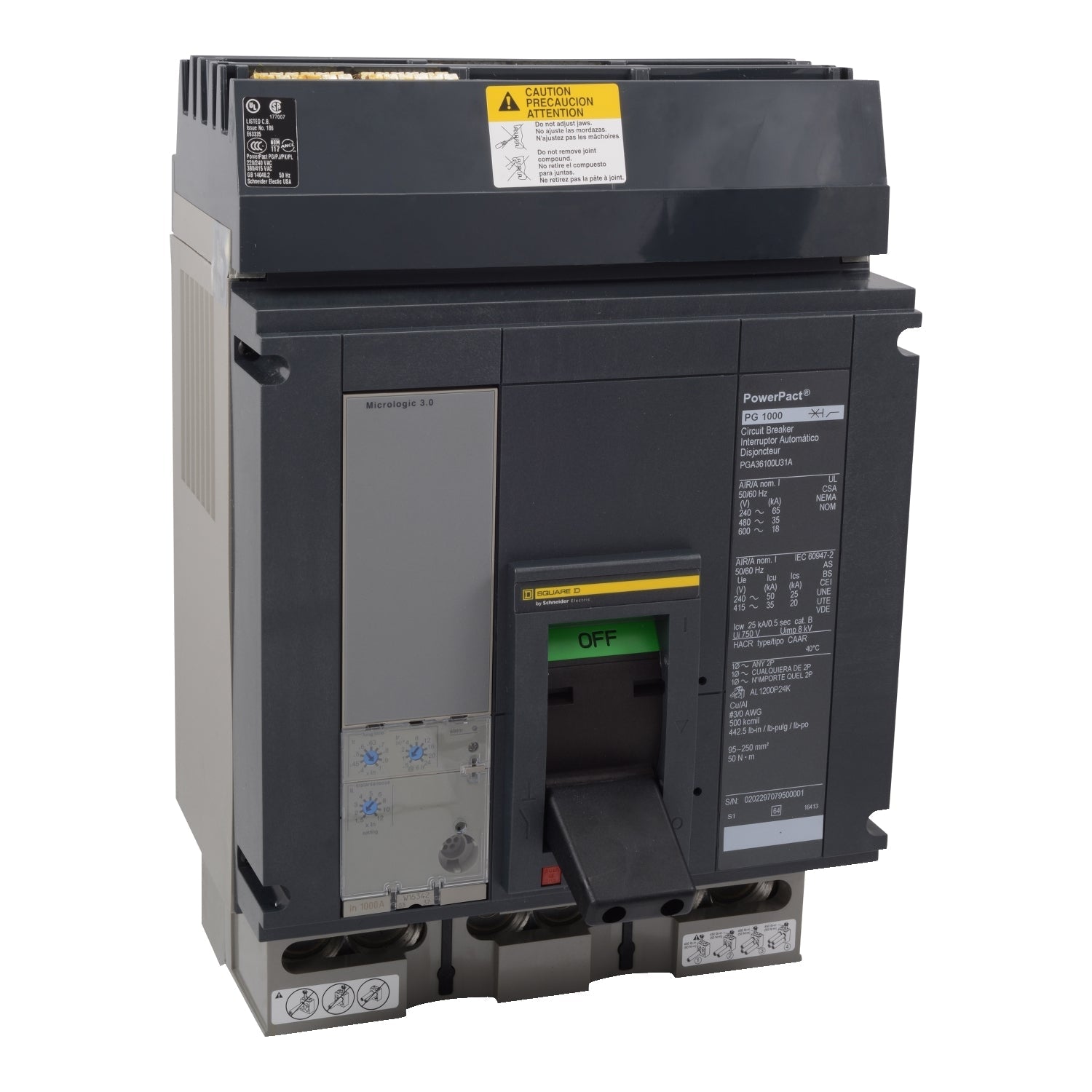

Schneider Electric PGA261202 - Molded Case Circuit Breaker 1200A 600V
Schneider Electric PGA261202 - Molded Case Circuit Breaker 1200A 600V

Schneider Electric PGA261202 - Molded Case Circuit Breaker 1200A 600V

Square D
Price
Save $19,920.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric Powerpact PGA261202 is a 2-pole molded case circuit breaker designed for thermal magnetic protection with long time and instantaneous trip functions. It is rated for 600V AC, 1200A continuous current, and provides a 35kA interrupting capacity at 480V AC in a 1-phase configuration. The unit features an I-Line style plug-in connection, accepts 4 x AWG 3/0 to 500 kcmil aluminum or copper wire, and measures 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) with a weight of 35.999 lb. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, making it suitable for industrial power distribution and motor protection applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Poles: 2
  • AIC Rating: 35kA@480V
  • Phase: 1
  • Connection: I-Line Style Plug-In
  • Wire Size: 4 x AWG 3/0...500 kcmil aluminium/copper
  • Functions: Long Time and Instantaneous Trip
  • Dimensions: 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight: 35.999 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 785901583738
  • GTIN: 00785901583738
