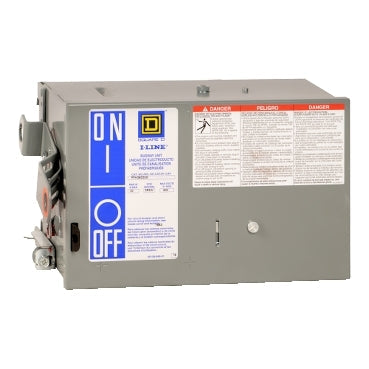

Square D PFH36100G is a 100A, 600V, 3-phase I-Line bus plug designed for circuit protection and power distribution in industrial electrical systems. It features a 3-wire configuration with an 18kA interrupting capacity at 600VAC, housed in a compact unit measuring 1.8 inches wide, 1.48 inches high, and 15 inches deep, weighing 38 lb. This breaker-type bus plug is constructed with a metal enclosure and is compatible with FHP frames, utilizing a bolt-on mounting style for secure installation. It complies with applicable UL and NEMA standards for industrial electrical equipment. Typical applications include branch circuit protection in panelboards, switchboards, and motor control centers within manufacturing facilities and commercial buildings.

Key Features & Specifications
  • Type: Breaker-type bus plug, I-Line family, metal enclosure
  • Voltage Rating: 600VAC
  • Current Rating: 100A
  • Dimensions: Depth 15 in (381.00 mm) Width 1.8 in (45.72 mm) Height 1.48 in (37.59 mm)
  • Weight: 38 lb
  • Wire: 3
  • Phase: 3
  • AIC rating: 18kA@600V
  • Compatible Frames: FHP
  • Mounting: Bolt-on
  • Country of Origin: United States


Product Identification
  • GTIN: 00785901086932
