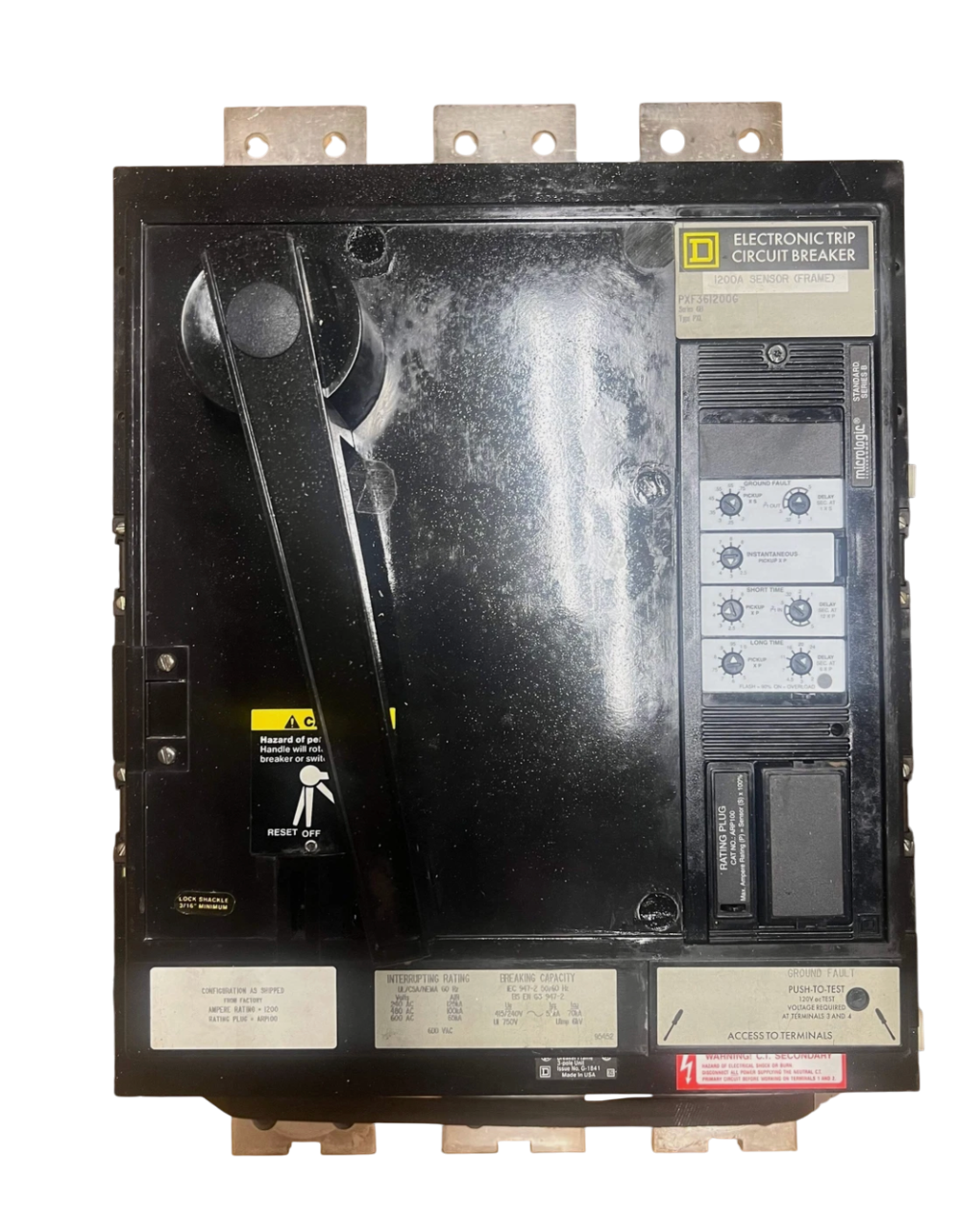

Square D PEF362000LSG - Molded Case Breaker 2000A 600V
Square D PEF362000LSG - Molded Case Breaker 2000A 600V

Square D PEF362000LSG - Molded Case Breaker 2000A 600V

Square D
Price
Save $-19,900.24
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D PEF362000LSG is a 3-pole molded case circuit breaker designed for solid-state LSIG protection (Long-Time, Short-Time, Instantaneous, and Ground Fault) in high-capacity industrial power distribution systems. It is rated for 2000A continuous current at 600V AC, with an interrupting capacity of 100kA at 480V, and utilizes a bolt-on connection for secure panel mounting. Weighing 100 lb, this PEF-type breaker features a compact frame for its class and does not include lugs, requiring separate wiring termination hardware. It complies with applicable industry standards for overcurrent and ground fault protection in three-phase systems. Typical applications include main or feeder protection in large commercial and industrial switchboards, motor control centers, and distribution panels.

Key Features & Specifications
  • Type: PEF Molded Case Circuit Breaker, Solid State Trip
  • Voltage Rating: 600V AC
  • Current Rating: 2000A
  • Dimensions: Standard PEF frame size
  • Standards: UL, CSA, NEMA (typical for Square D PEF series)
  • Applications: Industrial power distribution, main switchboards, feeder protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not applicable (solid state trip)
  • Temp Rating: 40°C ambient
  • Shipping Dimensions: Varies by packaging
  • Phase: 3
  • Voltage: 600V
  • Amperage: 2000A
  • AIC rating: 100kA@480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Functions: Solid State Trip
  • Frame Size: PEF
  • Trip Type: Solid State
  • Panel Type: Distribution
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-On
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not included
  • CPT: Not included
  • Full Load Amps: 2000A
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 2000A
  • Full Load Amp Minimum: Not specified
  • Enclosure: Open (no enclosure)
  • Relay Style: Solid State Trip Unit
  • Coil Voltage Minimum: Not applicable
  • Wire: Not applicable
  • Amperage Maximum: 2000A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Circuit Breaker
  • Wire Size: Not specified
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On (lugs not included)
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 489, CSA C22.2
  • Compatible Frames: PEF series
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: PEF
  • Current Rating: 2000A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 762179021605
