Eaton PDG53P1200E3MN - 1200A 3-Pole Molded Case Breaker
Eaton PDG53P1200E3MN - 1200A 3-Pole Molded Case Breaker

Eaton PDG53P1200E3MN - 1200A 3-Pole Molded Case Breaker

Eaton
Price
Save $-7,478.26
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

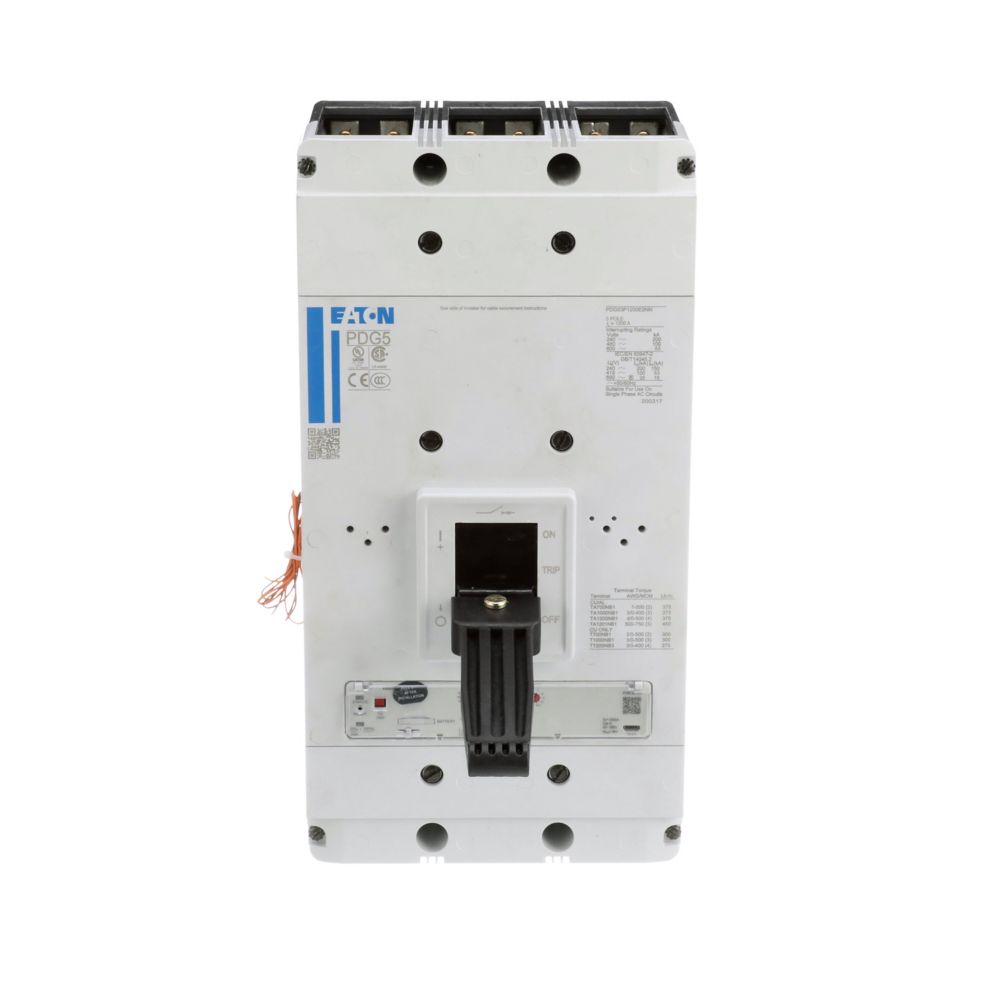

Eaton PDG53P1200E3MN is a Power Defense Series molded case circuit breaker designed for primary overcurrent and ground fault protection in industrial power distribution systems. This three-phase, 1200A rated breaker operates at 600V with a 100kA interrupting capacity at 480V, utilizing solid-state LSIG trip technology for precise coordination of long-time, short-time, instantaneous, and ground fault protection. The unit features a bolt-on connection, measures 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width), and weighs 47.5 lb, constructed for robust panelboard and switchboard installation. It complies with applicable UL and NEMA standards for molded case circuit breakers. Typical applications include main or feeder protection in commercial and industrial facilities requiring high-amperage, adjustable trip settings.

Key Features & Specifications
  • Type: Molded case circuit breaker, solid state trip, bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Dimensions: 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width)
  • Standards: UL, NEMA
  • Applications: Main or feeder protection in industrial power distribution
  • Poles: 3
  • Phase: 3
  • AIC rating: 100kA@480V
  • Protection: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Connection: Bolt-On
  • Frame Size: PDG5
  • Trip Type: Solid State
  • Breaker Type: Power Defense Series
  • Weight: 47.5 lb


Product Identification
  • UPC: 786679325780
