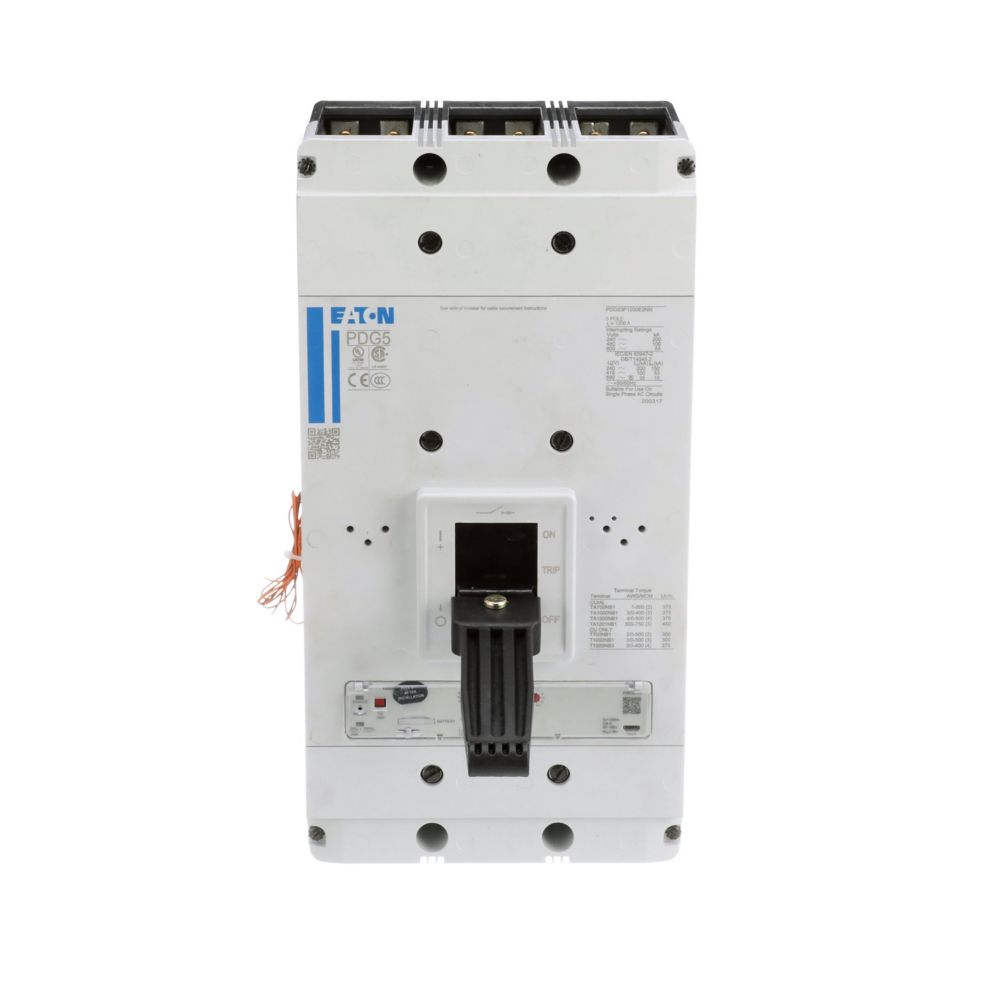

Eaton PDG53M1200E3MN - 1200A 3-Pole Molded Case Breaker (LSIG)
Eaton PDG53M1200E3MN - 1200A 3-Pole Molded Case Breaker (LSIG)

Eaton PDG53M1200E3MN - 1200A 3-Pole Molded Case Breaker (LSIG)

Eaton
Price
Save $-1,249.80
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Eaton PDG53M1200E3MN is a 3-pole molded case circuit breaker from the Power Defense Series, designed to provide LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault) protection for industrial power distribution systems. This unit is rated for 1200A at 600VAC with a 65kA interrupting capacity at 480VAC, utilizing solid-state trip technology for precise fault management. The breaker measures 139.7 mm in depth, 406.4 mm in height, and 209.5 mm in width, weighs 47.5 lb, and features a bolt-on connection for secure installation. It complies with global industry standards for reliable performance in demanding environments. Typical applications include main and feeder protection in commercial and industrial electrical systems.

Key Features & Specifications
  • Manufacturer: Eaton
  • Family: Power Defense Series
  • Type: PDG
  • Item Subcategory: Molded Case
  • Poles: 3
  • Current Rating: 1200A
  • Voltage Rating: 600VAC
  • AIC Rating: 65kA@480V
  • Protection: Solid State
  • Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
  • Connection: Bolt-On
  • Dimensions: 139.7 mm x 406.4 mm x 209.5 mm (Length/Depth x Height x Width)
  • Weight: 47.5 lb
  • Phase: 3
  • Frame: 5
  • Mounting Type: Chassis Mount
  • Trip Unit: PXR20 LSIG with Modbus RTU
  • Breaker Type: Thermal Magnetic
  • Terminals: None
  • Series: Power Defense (PD5 Global)
  • Certifications: Globally rated


Product Identification
  • UPC: 786679293188
