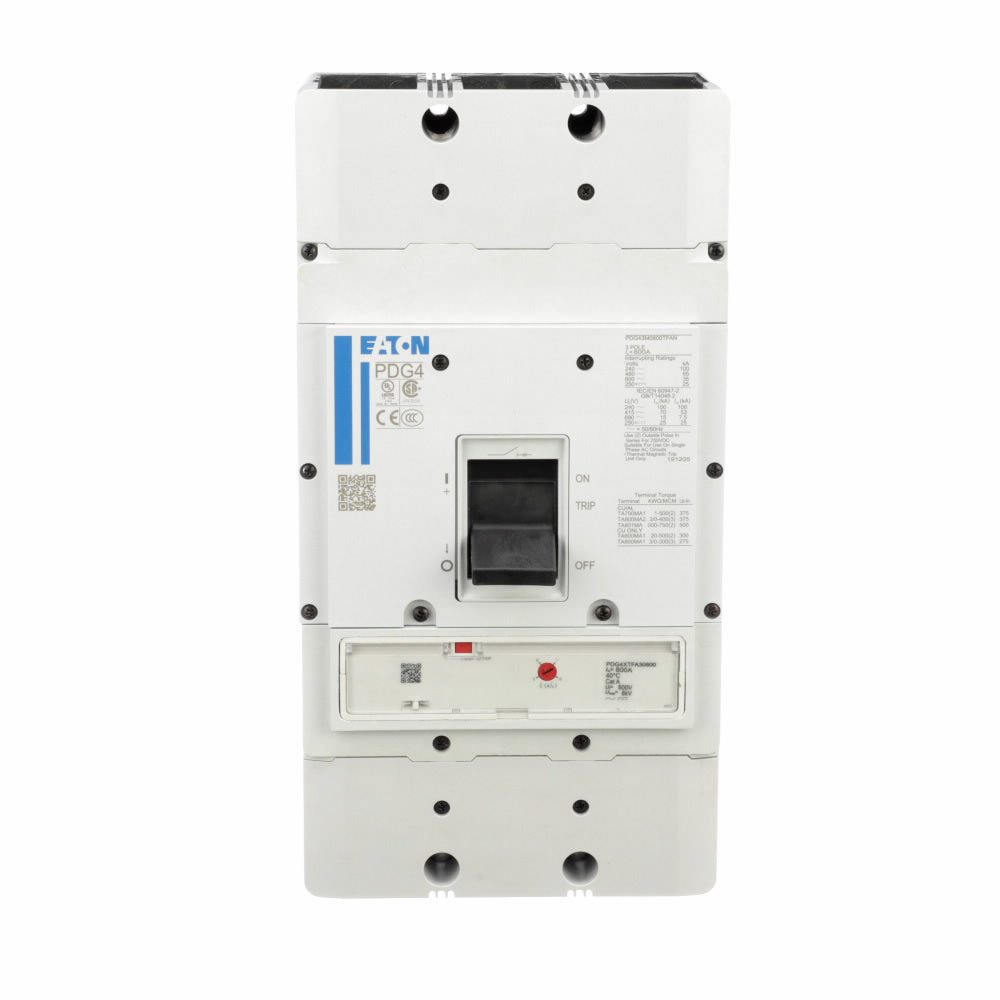

Eaton PDG43M0800TFAN is a 3-pole molded case circuit breaker from the Power Defense Series designed for thermal-magnetic overcurrent protection in industrial power distribution systems. It is rated for 800A continuous current at 600VAC with a 65kA interrupting capacity at 480VAC, supporting three-phase applications. The unit measures 111.2 mm deep by 406.4 mm high by 209.6 mm wide, weighs 29.4 lb, and features bolt-on connection with standard line and load side lugs. It is CCC marked and certified to IEC 60947-2, CSA, and UL 489 standards, with an operating temperature range of -13°F to 158°F (-25°C to 70°C). This breaker is suited for main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Power Defense Series
  • Voltage Rating: 600VAC
  • Current Rating: 800A
  • Dimensions: 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
  • Standards: CCC Marked IEC 60947-2, CSA, UL 489
  • Applications: Main or feeder protection in switchboards, panelboards, motor control centers
  • Switch Type: Thermal-Magnetic
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: 111.2 mm x 406.4 mm x 209.6 mm
  • Phase: 3
  • Voltage: 600V
  • Amperage: 800A
  • AIC rating: 65kA@480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LSI - Long-Time, Short-Time and Instantaneous Trip
  • Frame Size: PDG
  • Trip Type: LSI
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-On
  • Hz: Not specified
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 800A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Thermal-Magnetic
  • Wire Size: Not specified
  • Certification: CCC Marked IEC 60947-2, CSA, UL 489
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Standard Line and Load Side Lug
  • Frequency Rating: Not specified
  • Phase Connection: 3-Phase
  • Standards: IEC 60947-2, CSA, UL 489
  • Compatible Frames: Power Defense Series
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: PDG
  • Current Rating: 800A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 786679416259
  • GTIN: 00786679416259
