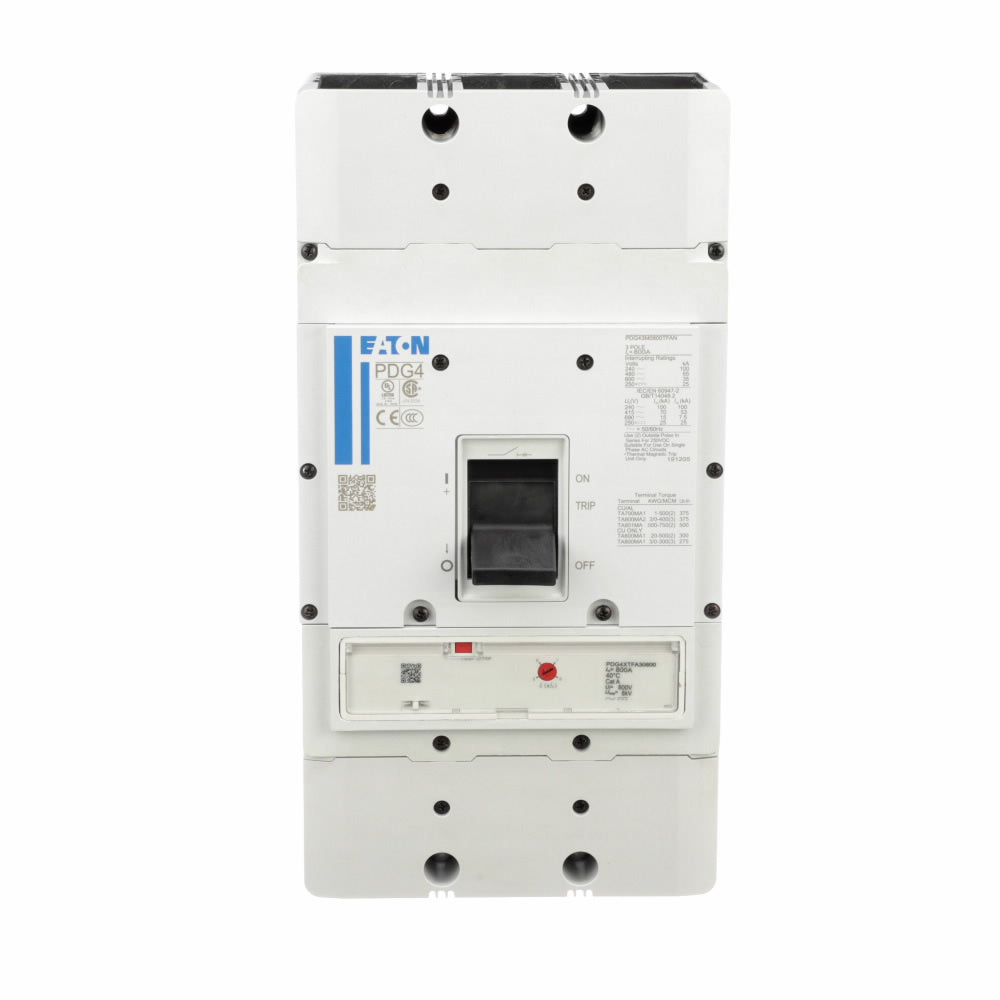

Eaton PDG43G0800TFAN is a 3-pole molded case circuit breaker from the Power Defense Series, designed to provide thermal magnetic protection for industrial power distribution systems. It is rated for 600V AC, 800A continuous current, and delivers an interrupting capacity of 35kA at 480V AC, with LI (Long-Time and Instantaneous Trip) protection functions. The unit measures 111.2 mm (depth) x 406.4 mm (height) x 209.6 mm (width), weighs 29.4 lb, and features bolt-on mounting with standard line and load side lug terminals. It complies with CCC, CSA, IEC 60947-2, RoHS, and UL 509 standards, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). This breaker is suitable for three-phase applications requiring reliable overcurrent protection in switchboards, panelboards, and industrial machinery.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Power Defense Series, Thermal Magnetic
  • Voltage Rating: 600V AC
  • Current Rating: 800A
  • Dimensions: 111.2 mm x 406.4 mm x 209.6 mm (Length/Depth x Height x Width)
  • Standards: CCC, CSA, IEC 60947-2, RoHS, UL 509
  • Applications: Industrial power distribution, switchboards, panelboards
  • Switch Type: Molded Case
  • Configuration: 3-Pole
  • Coil Voltage Maximum: N/A
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: N/A
  • Phase: 3
  • Voltage: 600V
  • Amperage: 800A
  • AIC rating: 35kA@480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: PDG
  • Trip Type: Thermal Magnetic
  • Panel Type: N/A
  • Breaker Type: Molded Case
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: N/A
  • Metal Type: N/A
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: N/A
  • Insulation Temperature: N/A
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: N/A
  • Class Rating: N/A
  • Diameter: N/A
  • Velocity: N/A
  • Clip Center: N/A
  • Clas: N/A
  • Mounting: Bolt-On
  • Hz: N/A
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: N/A
  • Dist Voltage: N/A
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: N/A
  • Full Load Amp Minimum: N/A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: N/A
  • Amperage Maximum: 800A
  • Amperage Minimum: N/A
  • Nema Rating: N/A
  • Switch Style: N/A
  • Wire Size: N/A
  • Certification: CCC, CSA, IEC 60947-2, RoHS, UL 509
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Standard Line and Load Side Lug
  • Frequency Rating: N/A
  • Phase Connection: 3-Phase
  • Standards: CCC, CSA, IEC 60947-2, RoHS, UL 509
  • Compatible Frames: N/A
  • Installation Type: Bolt-On
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: PDG
  • Current Rating: 800A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 786679453360
