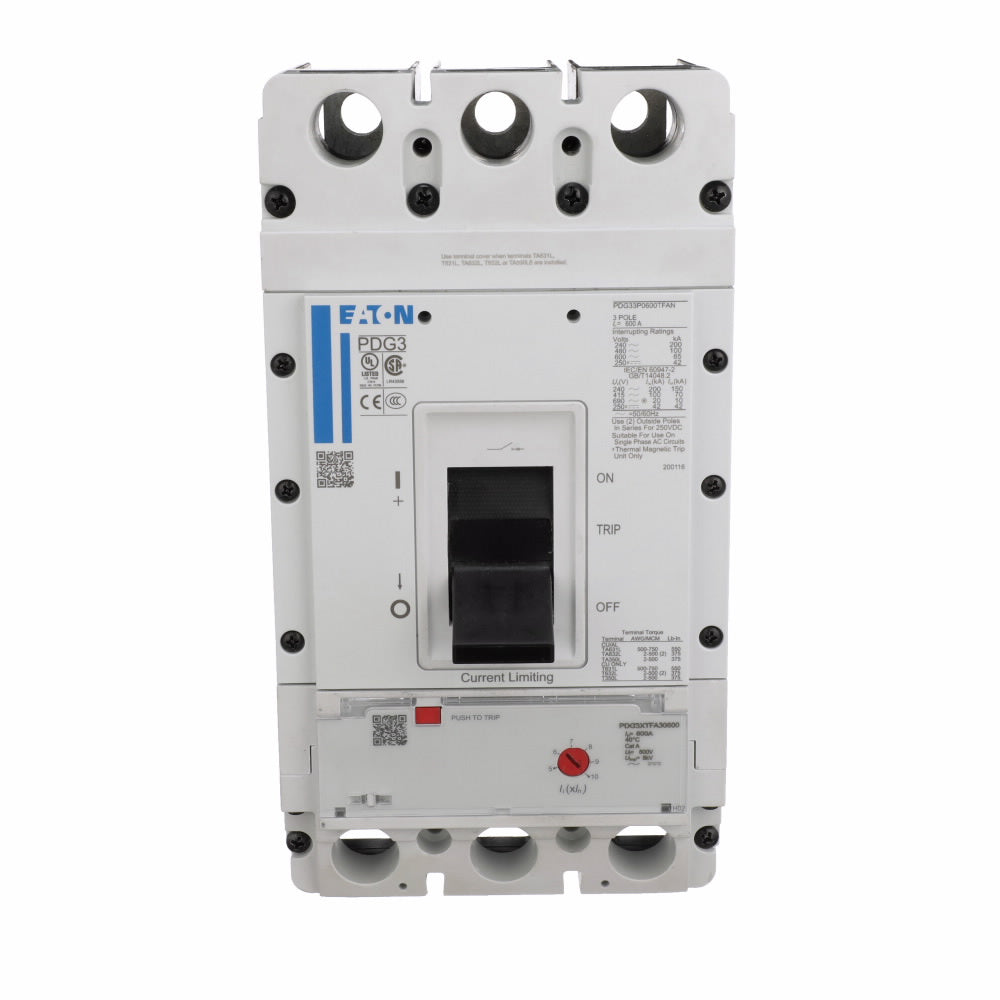

PDG33M0600TFAJ Eaton 600A 3-Pole Molded Case Circuit Breaker

Trying to figure out if the PDG33M0600TFAJ is the right breaker for your panel? Here is the short version. This is an Eaton Power Defense circuit breaker built for 600 amps across three poles, and it protects the wiring in a commercial or industrial electrical system by shutting off power automatically when there is an overload or short circuit. If your equipment list or existing breaker calls out this exact part number, this is the one you want.

It is a complete, ready-to-install breaker (not a part or add-on) with the trip mechanism already built in. It works on systems up to 600 volts AC and can safely interrupt very high fault currents, up to 65,000 amps at 480 volts. The wire connection lugs come on the breaker, and optional accessories can be added later if you need them.

Common Applications

• Main or feeder breaker in commercial and industrial panels
• Protecting large motors and heavy electrical loads
• Building power distribution and service equipment
• Machinery and equipment that needs 600A protection
• Systems with high fault current, rated to 65kA at 480V

Key Features

• Complete breaker: Arrives ready to install with the trip unit already inside.
• 600A, three-pole: Handles 600 amps across three phases at up to 600 volts AC.
• Strong fault protection: Interrupts up to 65,000 amps at 480 volts.
• Thermal-magnetic trip: Reliable overload and short-circuit protection, no programming.
• Lugs included: Standard wire terminals come on the breaker (PDG3X3TA630).
• Safety certified: UL 489 listed, plus IEC, CSA, and CCC, and RoHS compliant.

Specifications

• Part number: PDG33M0600TFAJ
• Brand: Eaton
• Current: 600 A
• Poles: Three-pole
• Voltage: 600 Vac
• Interrupting rating: 65 kAIC at 480 Vac
• Trip type: Thermal-magnetic (fixed-adjustable)
• Product line: Eaton Power Defense, Frame 3

Product Identification

• Dimensions: 10.12 in H x 5.47 in W x 4.30 in D
• Weight: 12.37 lb (5.61 kg)
• UPC: 786679570272

FAQ

What does this breaker do? It protects a 600A, three-phase electrical circuit by automatically cutting power during an overload or short circuit.

Is this a complete breaker? Yes. It comes ready to install with the trip mechanism and wire lugs already on it.

How do I know if this is the right part? Match the full part number, PDG33M0600TFAJ, to your equipment specs or the breaker you are replacing.

What voltage and fault rating does it handle? Up to 600 volts AC, and it interrupts up to 65,000 amps at 480 volts.

Do I need to program or set it up? No. It is a thermal-magnetic breaker, so there is no electronic setup required.
