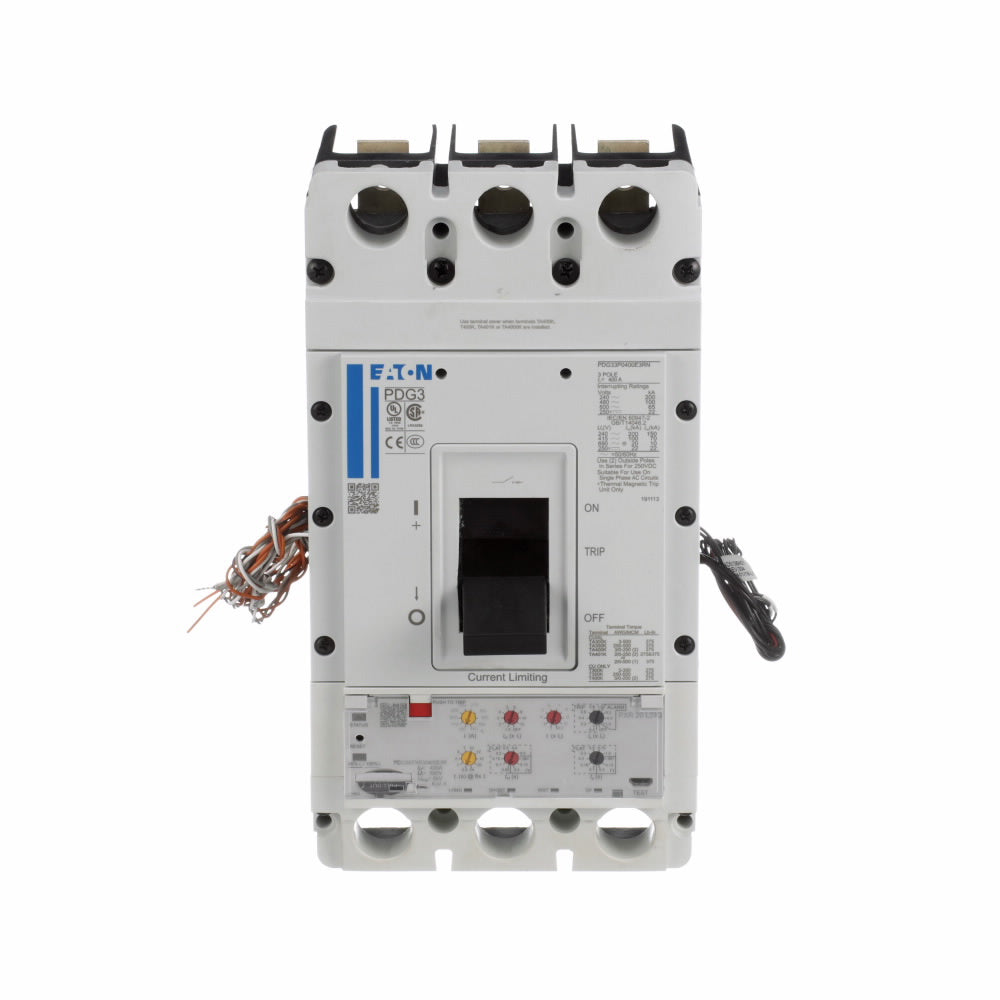

Eaton PDG33M0400E3RN is a 3-pole molded case circuit breaker from the Power Defense Series, designed for thermal magnetic protection in industrial power distribution systems. It is rated for 600V AC, 400A continuous current, and delivers a 65kA interrupting capacity at 480V, with LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault) trip functions for selective coordination. The unit measures 109.1 mm (depth) x 257.1 mm (height) x 138.9 mm (width), weighs 13.2016 lb, and features bolt-on connection with standard line and load side lugs. It complies with UL 489, CSA, IEC 60947-2, CCC, and RoHS standards, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). This breaker is suitable for main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Power Defense Series, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA@480V
  • Connection: Bolt-On
  • Terminal Connection: Standard Line and Load Side Lug
  • Protection: Thermal Magnetic
  • Functions: LSIG (Long-Time, Short-Time, Instantaneous and Ground Fault Trip)
  • Dimensions: 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
  • Weight: 13.2016 lb
  • Temp Rating: -25–70 °C (-13–158 °F)
  • Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679224151
