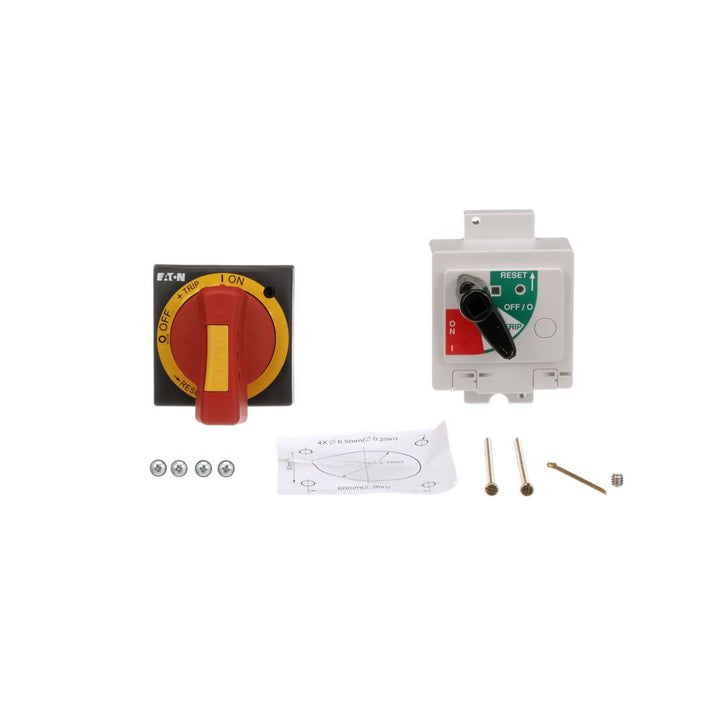

Eaton PDG1XHMDS is a molded case circuit breaker operating handle designed for the Power Defense Series, providing manual switching and lockout capability for circuit protection. This accessory supports voltage ratings up to 600V AC and current ratings up to 100A, compatible with PDG frame sizes. The unit measures 14 inches in depth, 4.5 inches in height, and 4.75 inches in width, weighing 1.6 lb, with a durable thermoplastic construction for industrial environments. It complies with UL 489 and CSA C22.2 standards for safety and performance in electrical distribution systems. Typical applications include panelboards, switchboards, and motor control centers in commercial and industrial facilities.

Key Features & Specifications
  • Type: Operating handle for Eaton Power Defense Series PDG circuit breakers
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 14 in x 4.5 in x 4.75 in (Length/Depth x Height x Width)
  • Weight: 1.6 lb
  • Standards: UL 489, CSA C22.2
  • Applications: Panelboards, switchboards, motor control centers
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Not applicable (handle accessory)
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single or three-phase
  • Installation Type: External handle mechanism
  • Item QTY: 1
  • Breaker Frame: PDG
  • Current Rating: 100A
  • Operating Temperature Maximum Celsius: 40°C
  • Section: Operating Handles
  • Family: Power Defense Series
  • Type: PDG
  • Manufacturer: Eaton
  • Item Subcategory: Parts & Accessories


Product Identification
  • UPC: 786689320928
