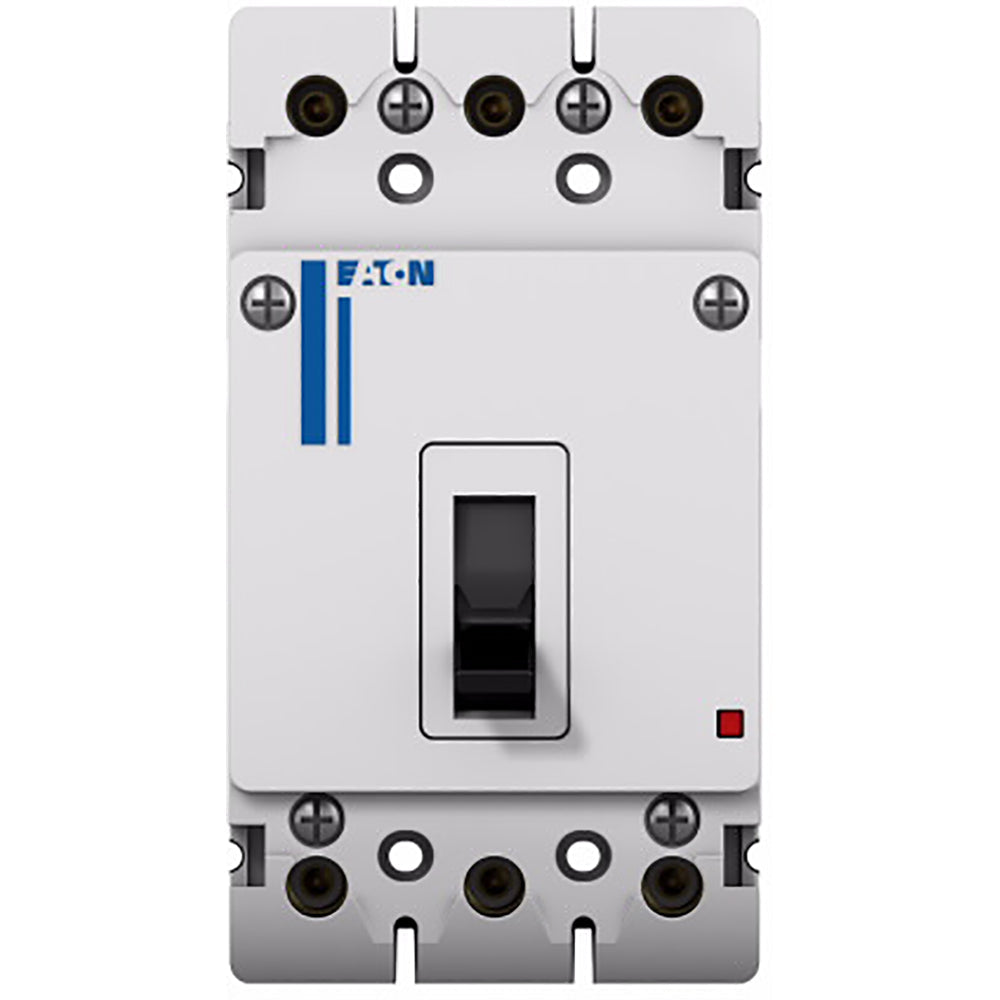

Eaton PDG13F0040TFFJ - 3-Pole 40A Molded Case Breaker (600V)
Eaton PDG13F0040TFFJ - 3-Pole 40A Molded Case Breaker (600V)

Eaton PDG13F0040TFFJ - 3-Pole 40A Molded Case Breaker (600V)

Eaton
Price
Save $-344.98
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton PDG13F0040TFFJ is a 3-pole molded case circuit breaker from the Power Defense Series, designed to provide thermal magnetic protection against overloads and short circuits in electrical distribution systems. It is rated for 600V AC, 40A continuous current, and offers a 25kA interrupting capacity at 480V AC, ensuring reliable fault interruption in three-phase applications. The unit features a compact bolt-on design with standard line and load side lugs, measuring 76 mm in depth, 107.95 mm in height, and 76.2 mm in width, with a weight of 2.8322338 lb. It complies with CCC, CSA, IEC 60947-2, RoHS, and UL 489 standards, and operates within a temperature range of -13 to 158 °F (-25 to 70 °C). This breaker is suited for industrial panelboards, switchboards, and motor control centers requiring robust circuit protection in harsh environments.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 76 mm x 107.95 mm x 76.2 mm (Length/Depth x Height x Width)
  • Standards: CCC, CSA, IEC 60947-2, RoHS, UL 489
  • Applications: Industrial panelboards, switchboards, motor control centers
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • AIC rating: 25kA@480VAC
  • Phase: 3
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Terminal Connection: Standard Line and Load Side Lug
  • Family: Power Defense Series
  • Country of Origin: Dominican Republic
  • Weight: 2.8322338 lb


Product Identification
  • UPC: 78667931820
  • GTIN: 00786679318201
