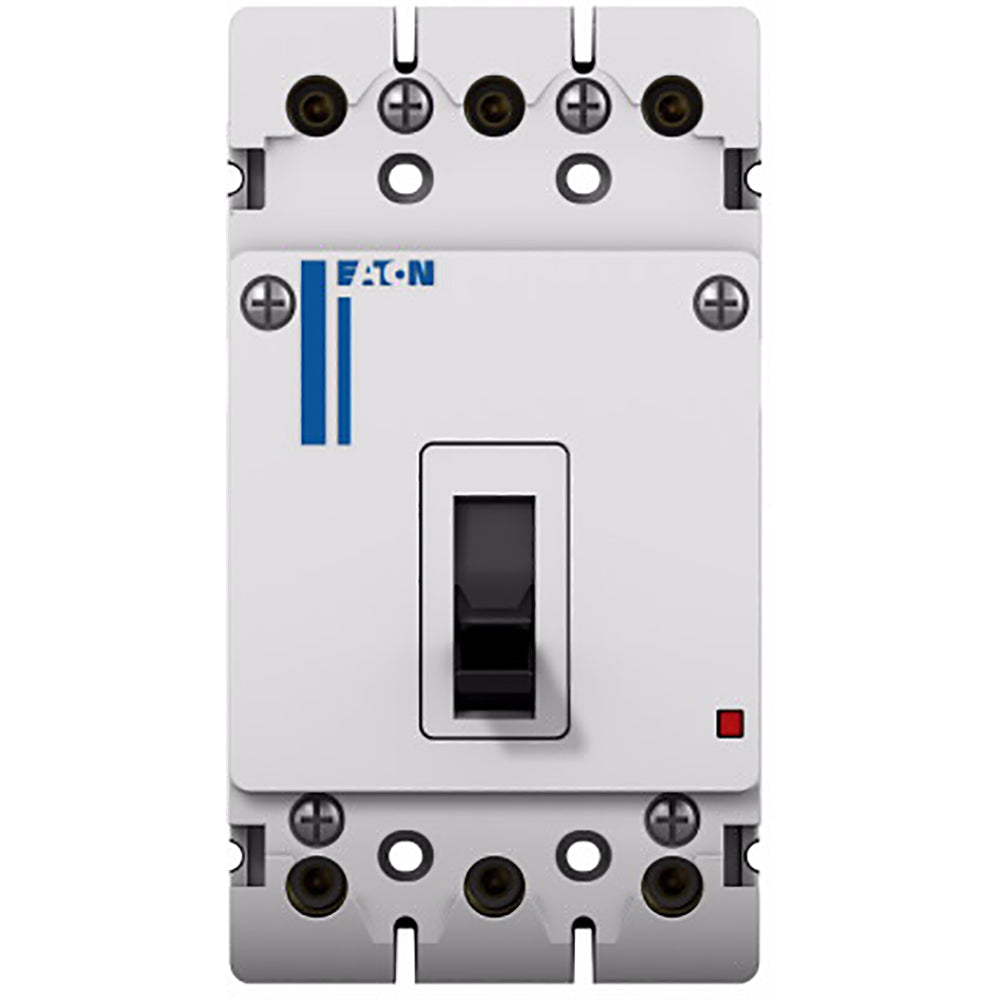

Eaton PDG13C0125TFFJ - 3-Pole Molded Case Breaker 125A 600V
Eaton PDG13C0125TFFJ - 3-Pole Molded Case Breaker 125A 600V

Eaton PDG13C0125TFFJ - 3-Pole Molded Case Breaker 125A 600V

Eaton
Price
Save $-283.84
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Eaton PDG13C0125TFFJ is a 3-pole molded case circuit breaker from the Power Defense Series, designed to provide thermal magnetic protection for electrical circuits. It is rated for 600V AC, 125A continuous current, and an interrupting capacity of 18kA at 480V, with a bolt-on connection and standard line and load side lugs. The unit measures 71.12 mm x 114.3 mm x 76.2 mm (L x H x W), weighs 3.03 lb, and operates within a temperature range of -13 to 158 °F (-25 to 70 °C). It complies with CCC, CSA, IEC 60947-2, RoHS, and UL 489 standards, making it suitable for industrial panelboard and switchboard applications requiring reliable overcurrent protection in 3-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 71.12 mm x 114.3 mm x 76.2 mm (Length/Depth x Height x Width)
  • Standards: CCC, CSA, IEC 60947-2, RoHS, UL 489
  • Applications: Industrial panelboards, switchboards, 3-phase systems
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 18kA@480V
  • Phase: 3
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Terminal Connection: Standard Line and Load Side Lug
  • Weight: 3.03 lb
  • Family: Power Defense Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667921243
  • GTIN: 00786679212431
