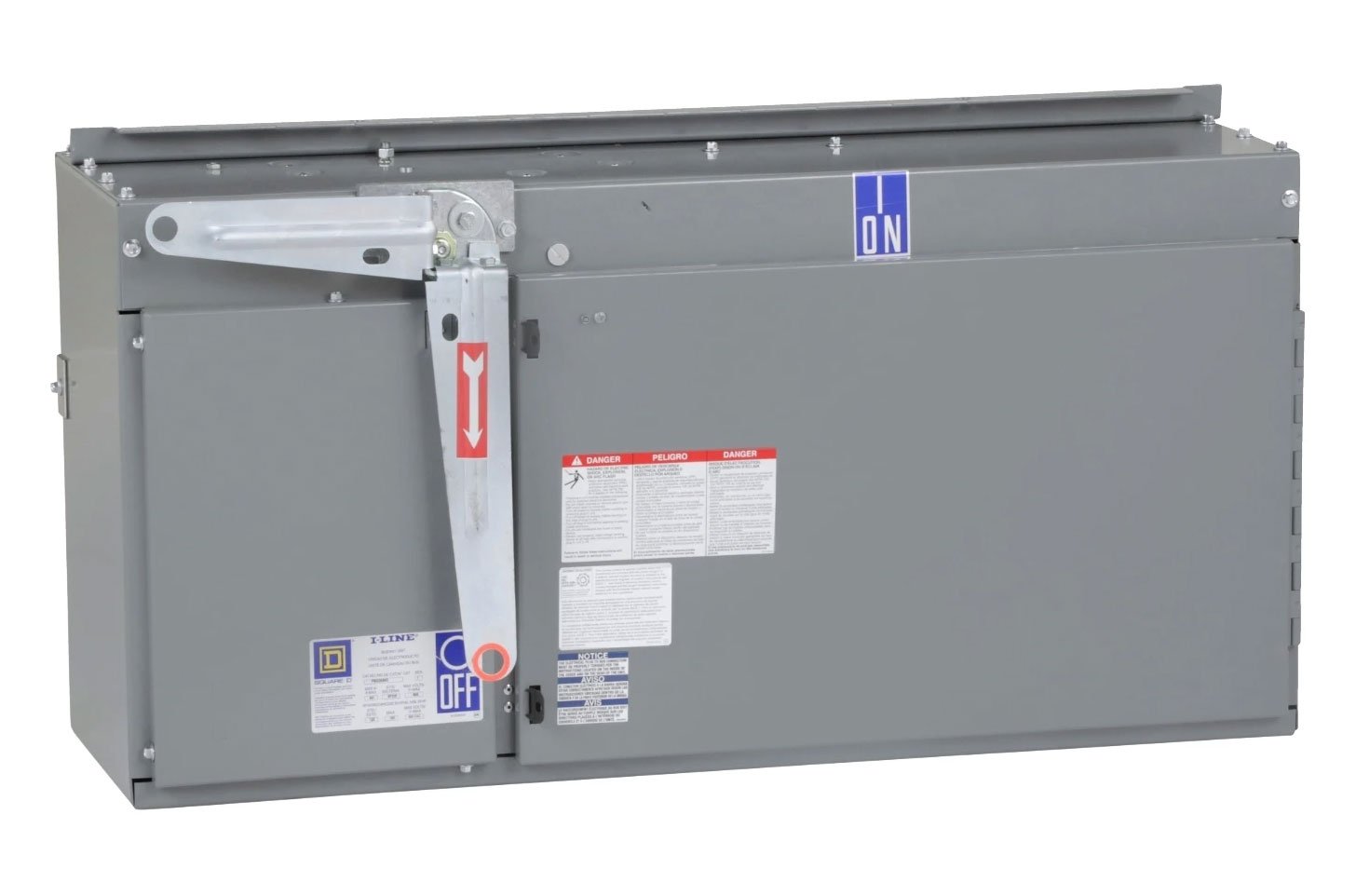

Square D PBQ4660G - Fusible Bus Plug 600A 600V (200kA AIC)
Square D PBQ4660G - Fusible Bus Plug 600A 600V (200kA AIC)

Square D PBQ4660G - Fusible Bus Plug 600A 600V (200kA AIC)

Square D
Price
Save $3,444.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D PBQ4660G is a fusible bus plug designed for branch circuit protection and isolation in industrial power distribution systems. It provides a 600A current rating and 600V voltage rating for three-phase applications, featuring a compact design with dimensions of 3.09 in (78.49 mm) depth by 4.44 in (112.78 mm) width and a weight of 198.99 lb. The unit is certified to UL and CSA standards and offers a high interrupting capacity of 200kA at 480V. It is typically applied in panelboards and switchboards for protecting feeders and machinery.

Key Features & Specifications
  • Type: Fusible bus plug, I-Line family, PBQ type
  • Voltage Rating: 600V
  • Current Rating: 600A
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Dimensions: 3.09 in (78.49 mm) Depth x 4.44 in (112.78 mm) Width
  • Weight: 198.99 lb
  • Fuse Class: H, K, J, R
  • Wire: 4
  • Certification: UL, CSA
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901510284
  • GTIN: 00785901510284
