Square D PBQ4640G - Fusible Bus Plug 400A 600V (200kA AIC)
Square D PBQ4640G - Fusible Bus Plug 400A 600V (200kA AIC)

Square D PBQ4640G - Fusible Bus Plug 400A 600V (200kA AIC)

Square D
Price
Save $914.94
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

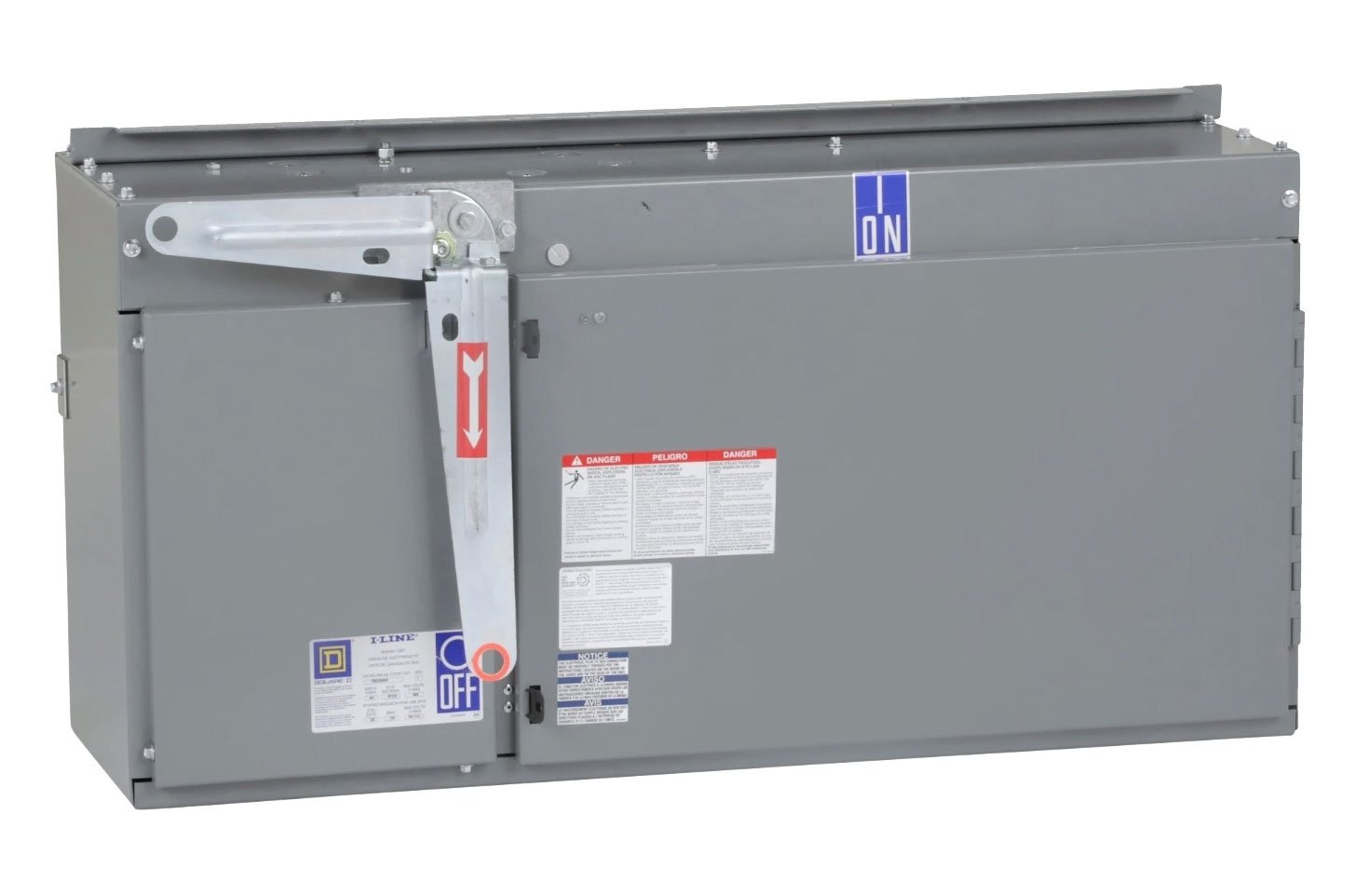

Square D PBQ4640G is a fusible bus plug designed for providing branch circuit protection and isolation in industrial power distribution systems. It features a 400A current rating and a 600V voltage rating for robust electrical performance. The unit is constructed with a compact form factor measuring 532 mm in height, 112.78 mm in width, and 78.49 mm in depth, and it weighs 199 lb for durable installation. It is certified to CSA C22.2 No 27 and is UL listed (file E22182), ensuring compliance with industry safety standards for use in demanding three-phase applications such as manufacturing plants and data centers.

Key Features & Specifications
  • Type: Fusible I-Line bus plug (PBQ type) for branch circuit protection
  • Voltage Rating: 600V
  • Current Rating: 400A
  • Phase: 3
  • AIC Rating: 200kA at 480V
  • Fuse Class: H, K, R
  • Wire: 4
  • Dimensions: Height 20.94 in (532 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight: 199 lb
  • Standards: CSA C22.2 No 27, UL listed (file E22182)
  • Family: I-Line


Product Identification
  • UPC: 785901040279
  • GTIN: 00785901040279
