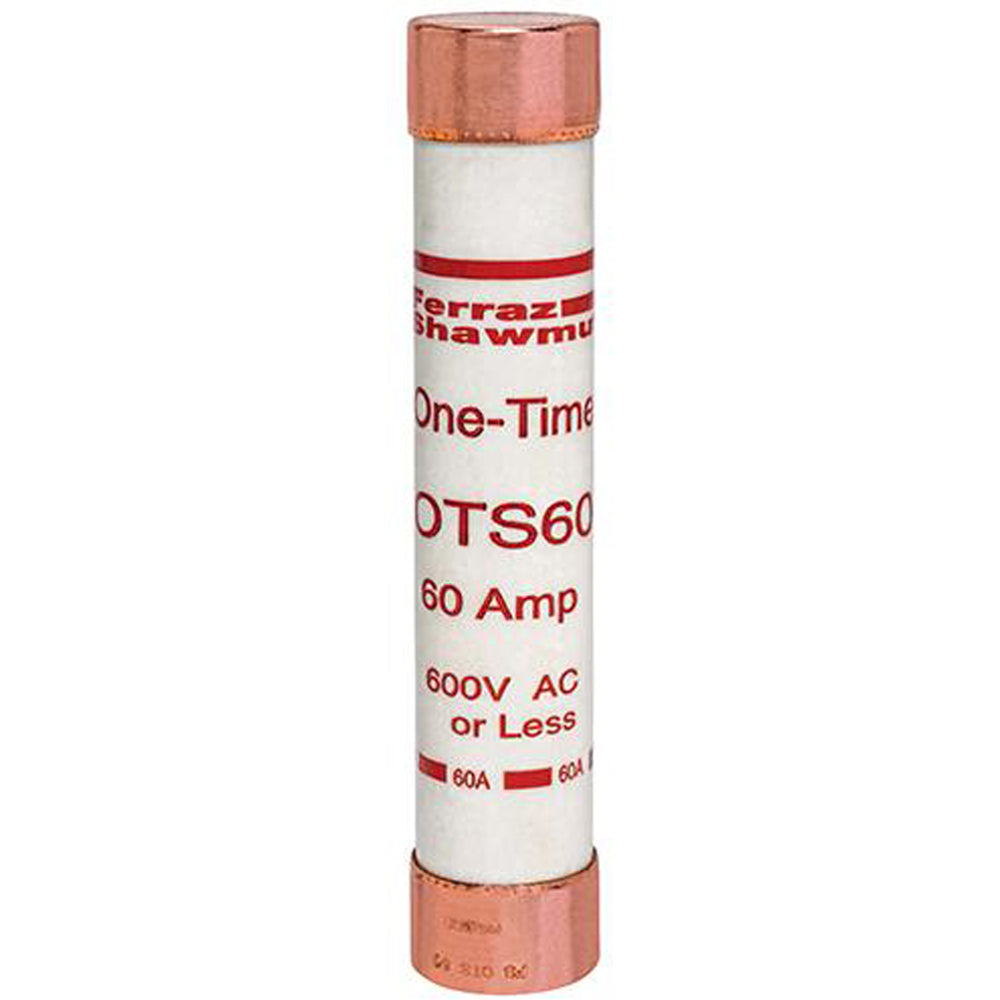

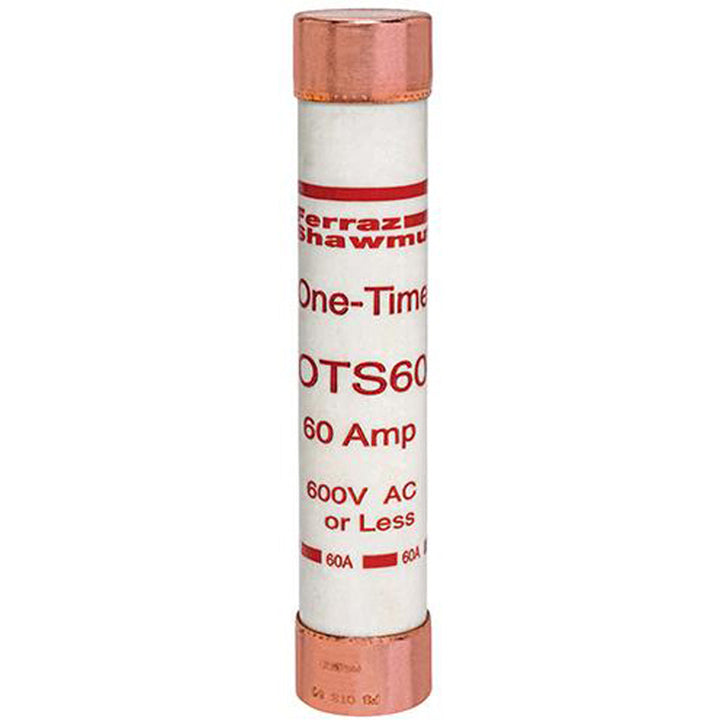

Ferraz Shawmut OTS60 - Class K-5 Fuse 60A@600V (50kA AIC)

Ferraz Shawmut OTS60 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This K-5 class fuse features a 600V AC rating with a 60A current capacity and 50kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel construction measures 5-1/2 inches in length with a 1.06-inch diameter, weighing 0.23 lb for compact panel integration. Compliant with industry standards for low-voltage protection devices, it's commonly used in motor control centers, switchgear, and power distribution equipment requiring Class K-5 protection.

Key Features & Specifications

• Type: Current-limiting fuse, OTS series, single-element design
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 5-1/2 in length x 1.06 in diameter
• Weight: 0.23 lb
• Class Rating: K-5
• AIC Rating: 50kA@600V
• Barrels: 1
• Standards: UL/CSA recognized
• Applications: Motor controls, switchgear, power distribution panels

Product Identification

• UPC: 782001700805
• GTIN: 00782001700805
