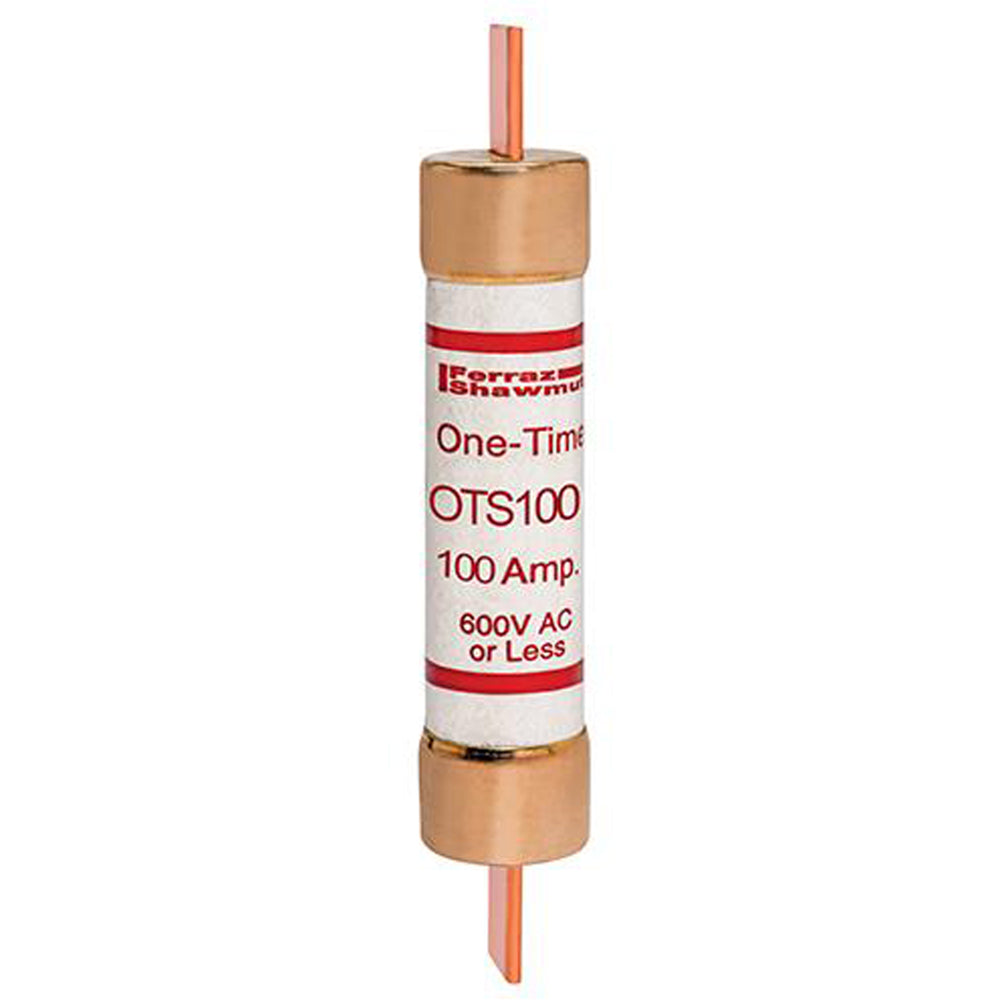

Ferraz Shawmut OTS100 - K-5 Class Fuse 100A@600V (50kA AIC)

Ferraz Shawmut OTS100 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This K-5 class fuse features a 600V AC rating with a 100A current capacity and 50kA interrupting rating at 600V for reliable short-circuit protection. The single-barrel design measures 1.31" in diameter with a durable construction weighing 0.55 lb, compliant with industry standards for electrical safety. Typical applications include motor branch circuits, transformer protection, and feeder protection in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: OTS Series current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 1.31" diameter
• Standards: UL/CSA certified
• Applications: Motor circuits, transformers, feeders
• Class Rating: K-5
• Barrels: 1
• AIC rating: 50kA@600V
• Weight: 0.55 lb

Product Identification

• UPC: 782001700867
• GTIN: 00782001700867
