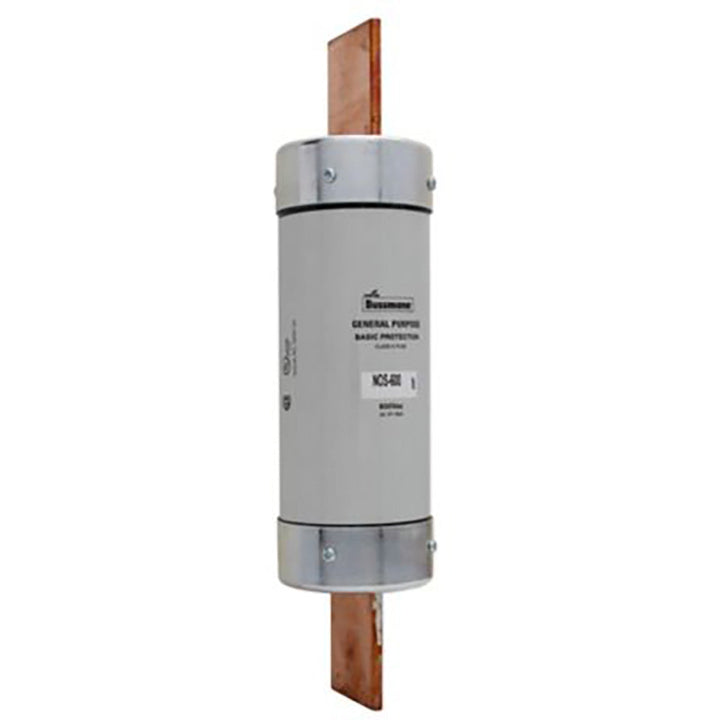

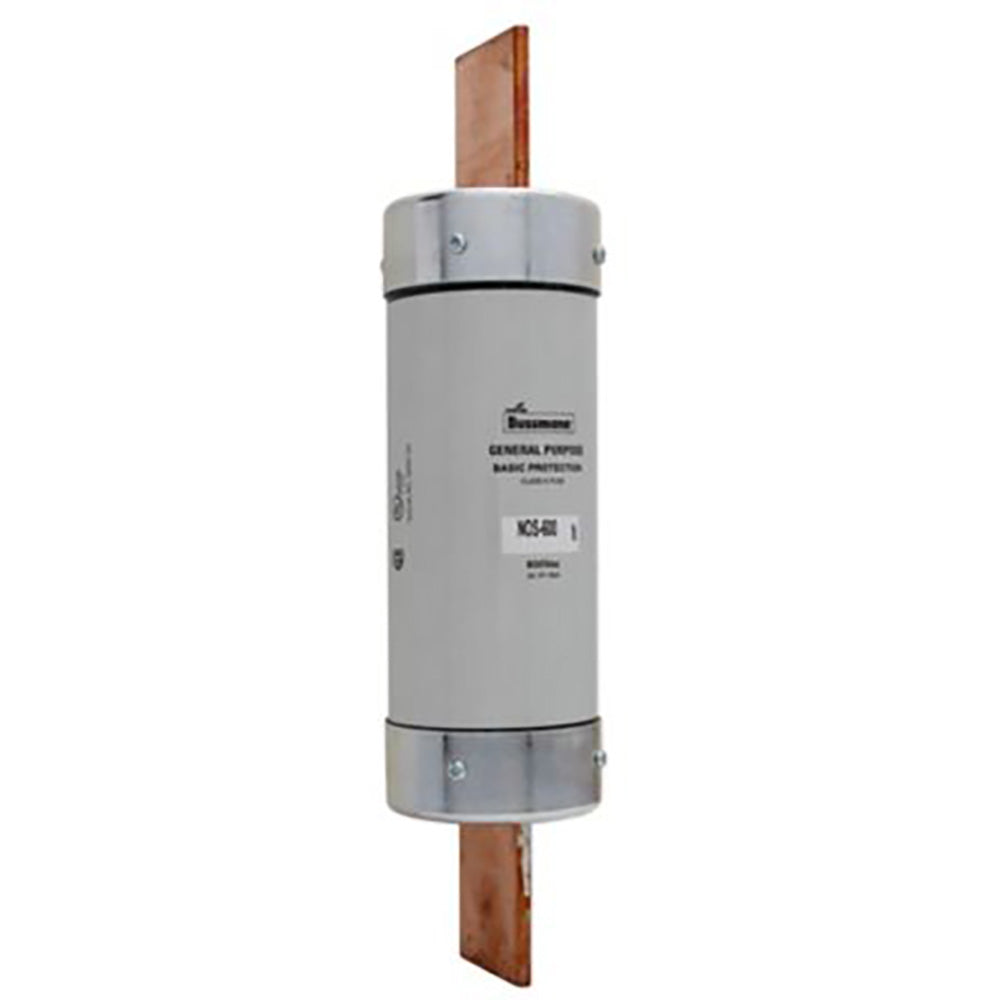

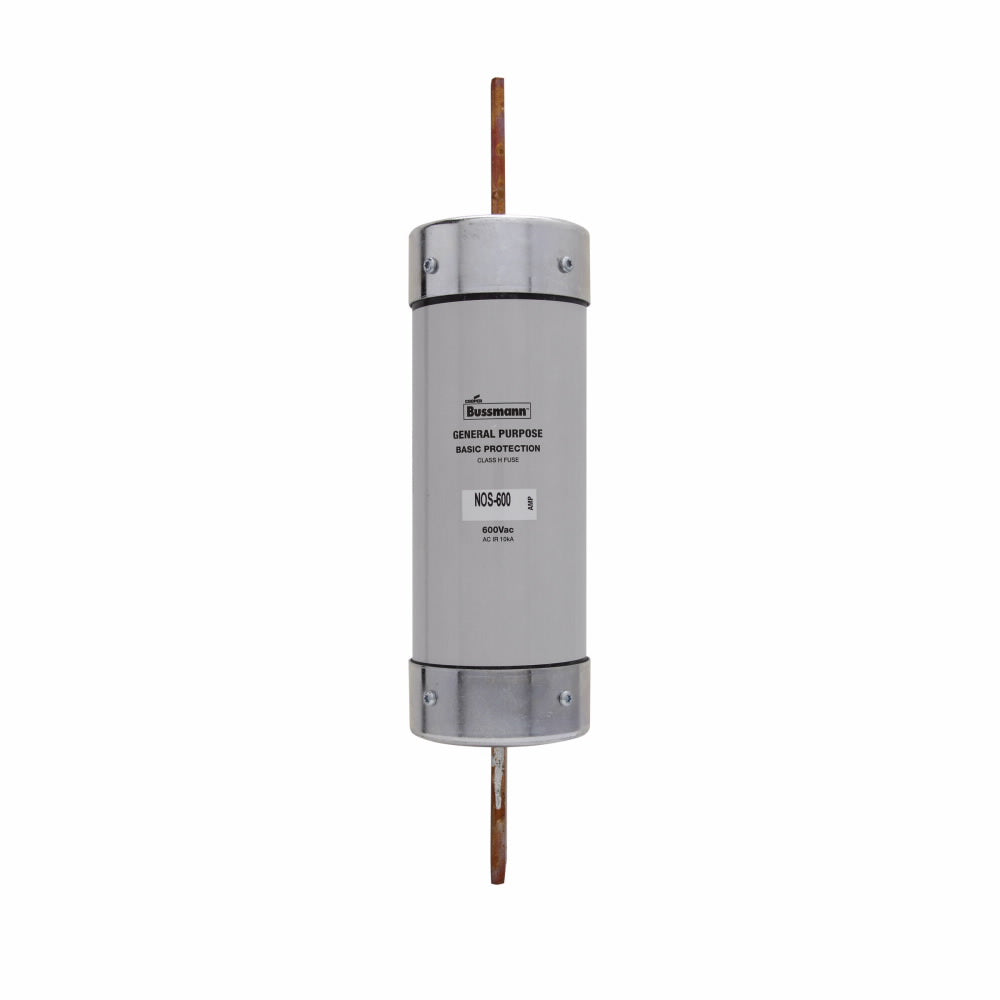

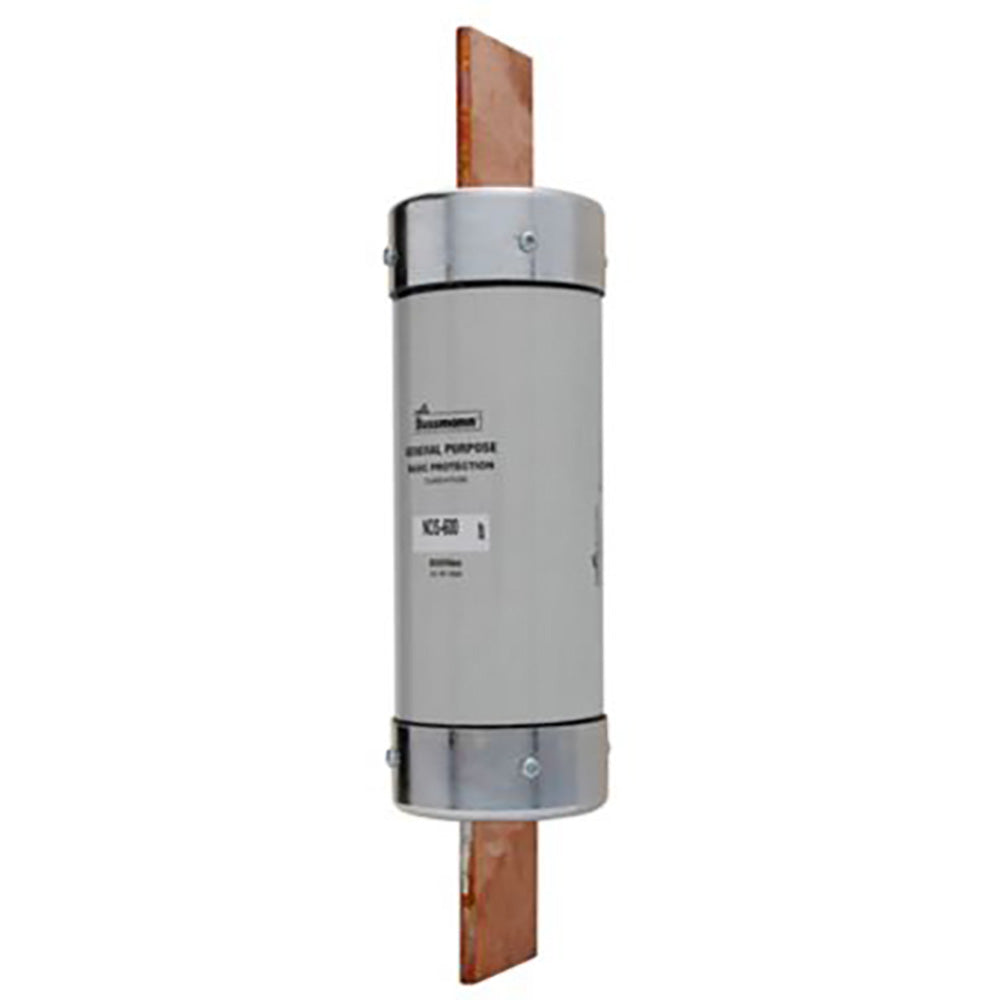

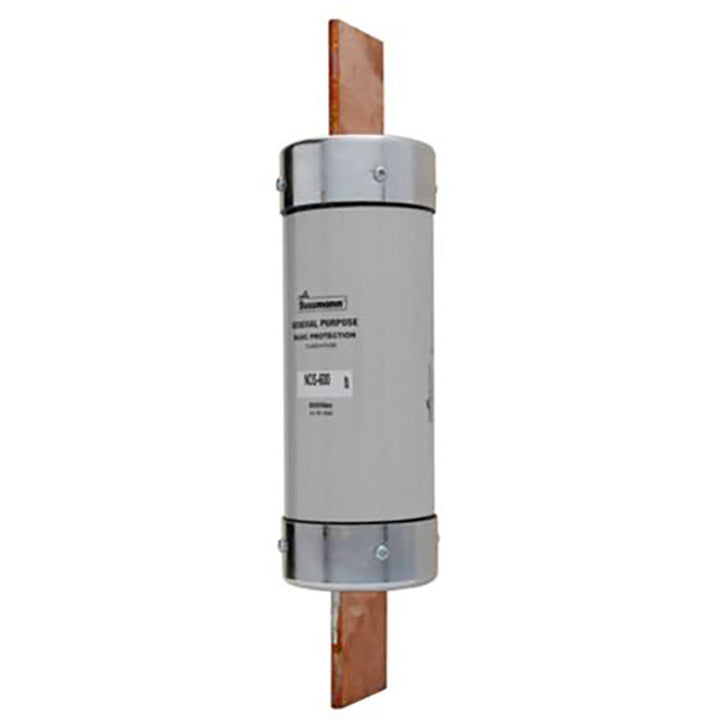

Bussmann NOS-600 - Class H Fuse 600A (10kA@600V AIC)

Bussmann NOS-600 is a low voltage fuse designed for high-current circuit protection in industrial applications. This Class H fuse operates at 600V with a 600A current rating and provides 10kA interrupting capacity at 600V for reliable fault protection. The single-barrel construction features a 3.13-inch diameter cylindrical design with overall dimensions of 13.38 inches in length and 3.13 inches in both height and width, weighing 3 lb. Manufactured to meet industry standards for low voltage protection devices, this NOS Series fuse is typically deployed in industrial power distribution systems, motor control centers, and heavy equipment protection circuits where robust overcurrent protection is required.

Key Features & Specifications

• Type: Low Voltage Fuse, Class H, Single Barrel
• Voltage Rating: 600V
• Current Rating: 600A
• Dimensions: 13.38" L x 3.13" H x 3.13" W
• Diameter: 3.13 inches
• Weight: 3 lb
• AIC Rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Family: NOS Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712316002
• GTIN: 00051712316002
