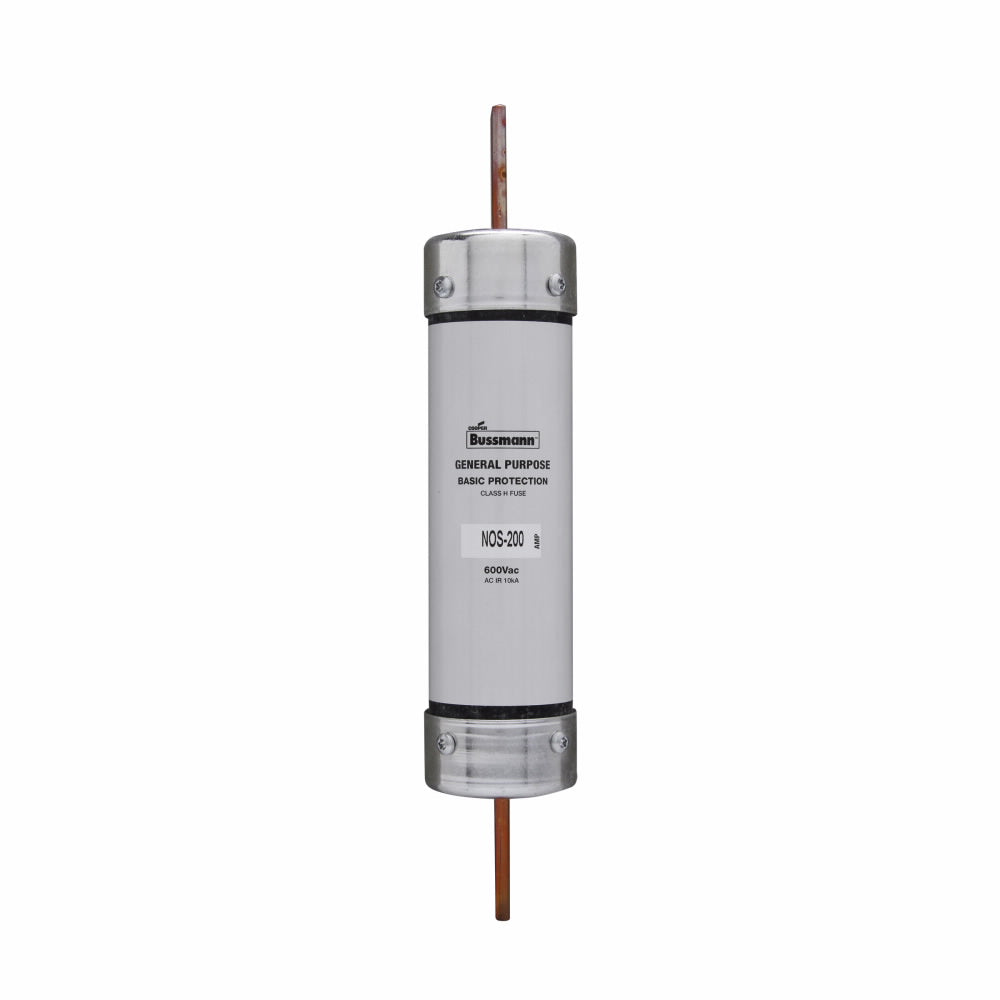

Bussmann NOS-200 - Class H Fuse 200A 600V (10kA AIC Rating)

Bussmann NOS-200 is a Class H low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 200A current rating and 600V voltage rating with a 10kA interrupting capacity at rated voltage. The fuse construction includes a single-barrel design with a 1.84-inch diameter and 9-5/8-inch length, manufactured to meet rigorous industry standards including UL listing and CSA certification. This fuse complies with UL STD 248-6 requirements and carries CE marking for international applications. Typical applications include motor branch circuit protection, feeder circuit protection, and industrial control panel protection where high-interrupting capacity is required.

Key Features & Specifications

• Type: Class H low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 9-5/8 inches length, 1.84 inches diameter
• Standards: UL Listed (File E4273), CSA Certified (Class 1421-01, File 53787), CE, Guide JDDZ, STD 248-6
• Applications: Industrial power distribution, motor circuit protection, feeder circuits
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb
• Family: NOS Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712312004
• GTIN: 00051712312004
