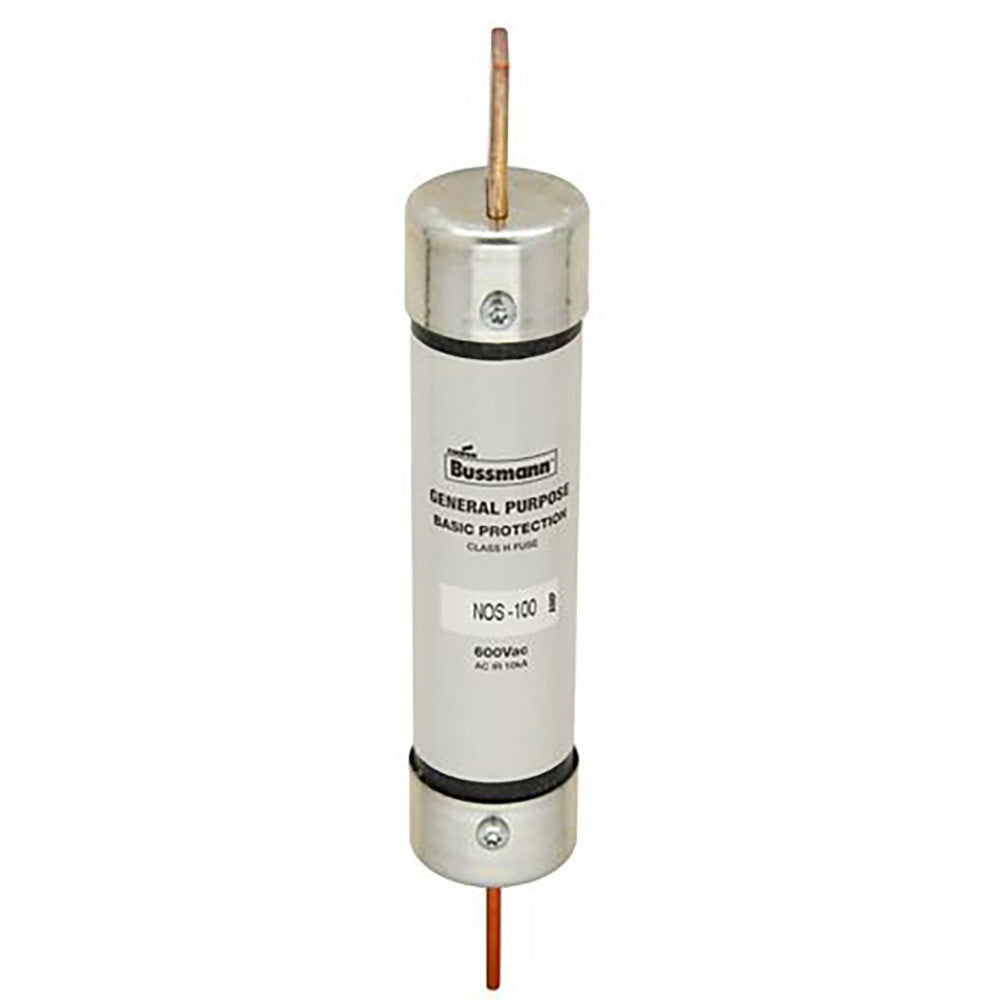

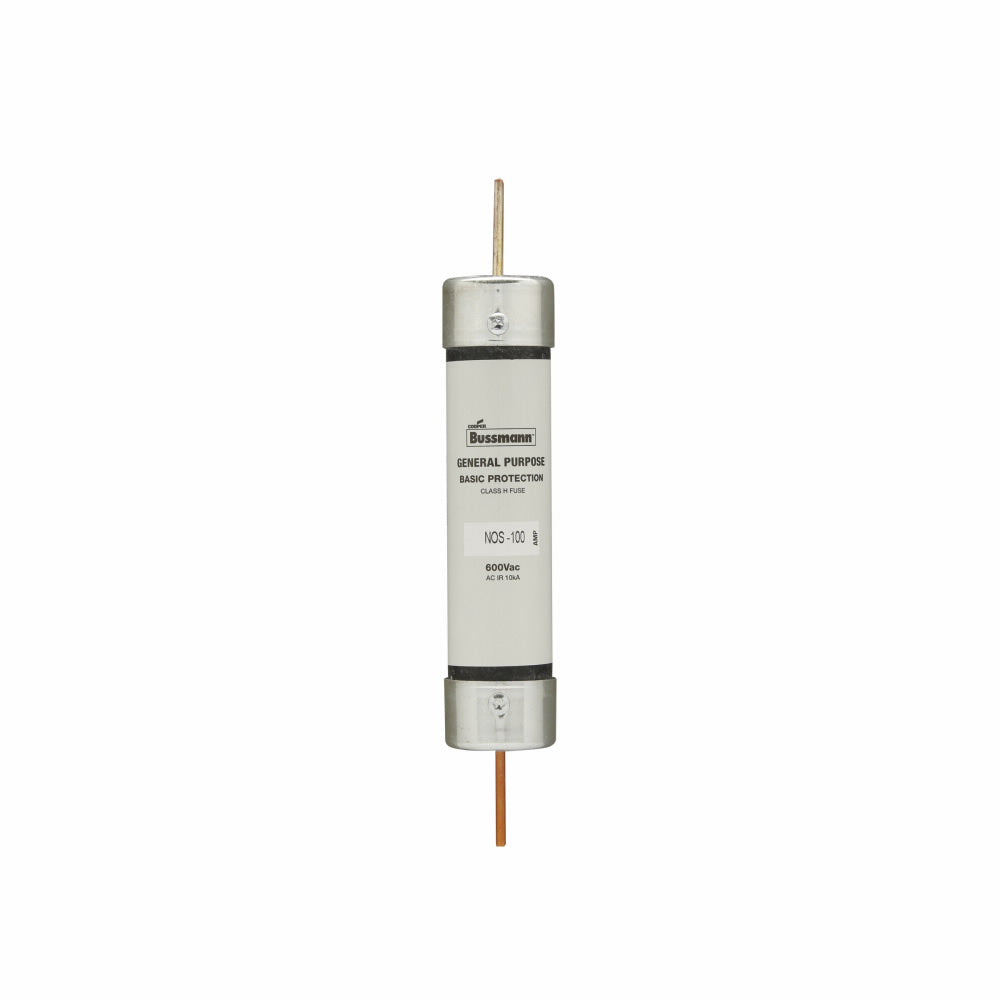

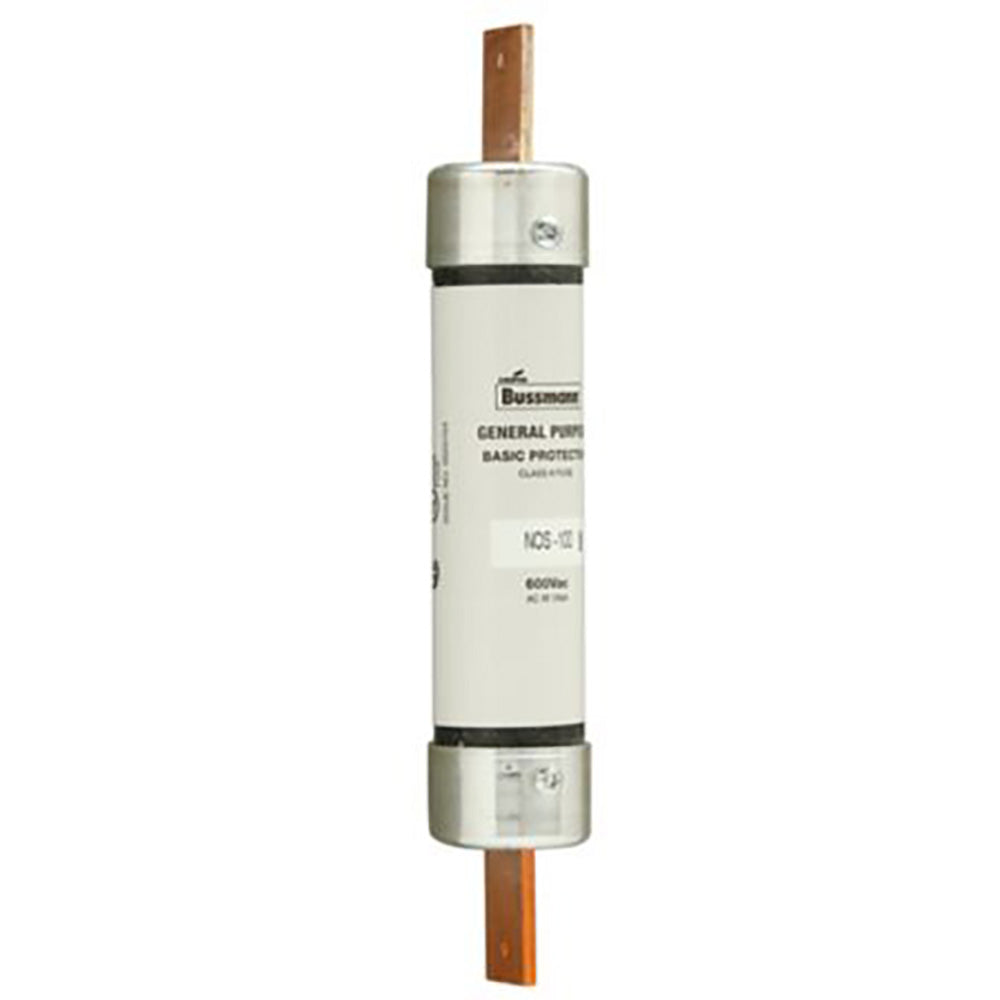

Bussmann NOS-100 - Class H Fuse 100A 600V (10kA AIC Rating)

Bussmann NOS-100 is a Class H low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 100A current rating and 600V voltage rating with an interrupting capacity of 10kA at 600V. The fuse construction includes a single-barrel design with a 1.34-inch diameter and overall dimensions of 7-15/16 inches, weighing 1.55 lb. This component meets multiple industry standards including UL Listing, CSA Certification, and CE compliance. Typical applications include motor branch circuit protection and general purpose electrical distribution systems in commercial and industrial facilities.

Key Features & Specifications

• Type: Class H low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 7-15/16 inches length, 1.34-inch diameter
• Weight: 1.55 lb
• Standards: UL Listed (File E4273), CSA Certified (Class 1421-01, File 53787), CE, Guide JDDZ, STD 248-6
• Applications: Motor branch circuit protection, industrial electrical distribution
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Family: NOS Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712311007
• GTIN: 00051712311007
