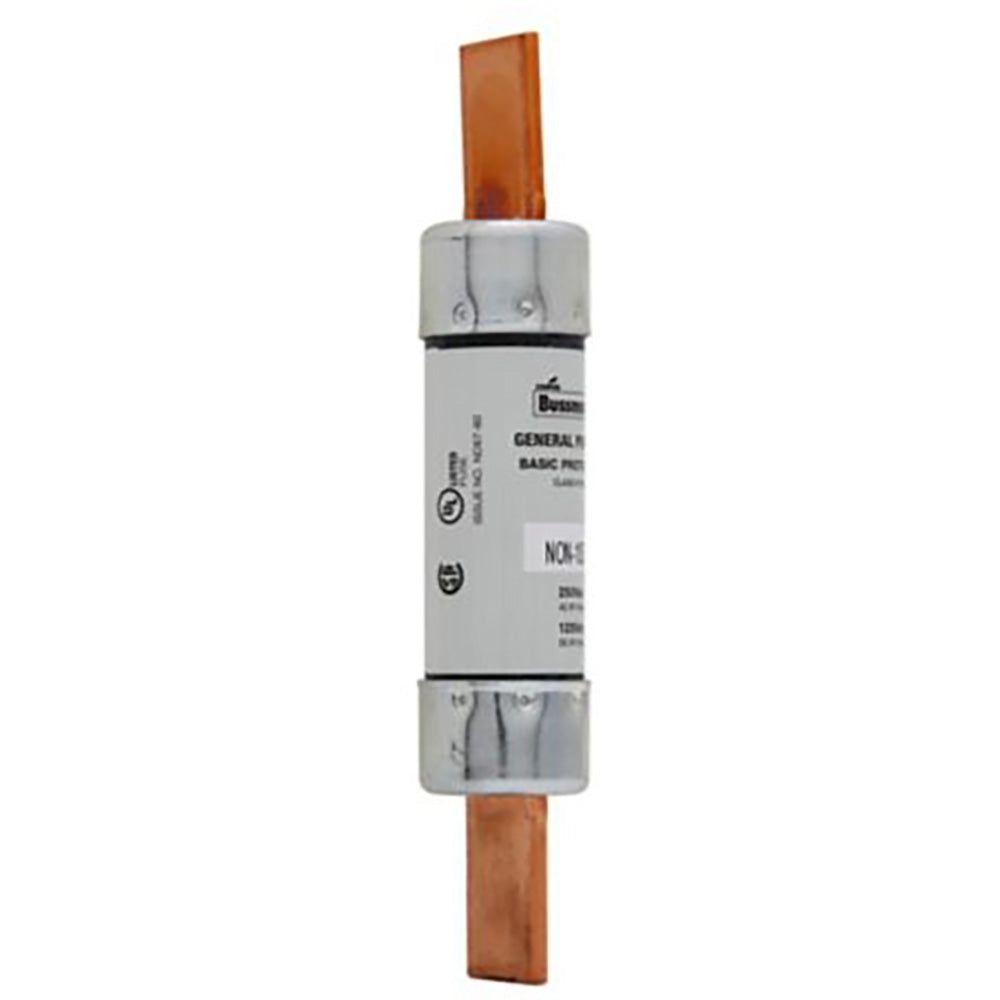

Eaton Bussmann NON-90 - Class H Time-Delay Fuse 90A 250V

Bussmann
Price
Save $141.73
/
Title
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Eaton Bussmann NON-90 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 90A current rating and a 250V AC voltage rating, with a 10kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel, Class H device with a 1.06-inch diameter and overall dimensions of 1.6 in x 5.88 in x 1.6 in, weighing 0.3 lb. It complies with key industry standards, including UL and CSA certifications, ensuring reliable performance. Typical applications include protecting motors, transformers, and other equipment where a time-delay characteristic is required to handle inrush currents.

Key Features & Specifications
  • Type: Low-voltage, time-delay, Class H fuse, single barrel construction
  • Voltage Rating: 250V AC
  • Current Rating: 90A
  • Dimensions: 1.6 in (L) x 5.88 in (H) x 1.6 in (W)
  • Diameter: 1.06 in
  • Weight: 0.3 lb
  • Standards: CE, UL Listed (File E4274), CSA Certified (Class 1421-01, File 53787), Guide JDDZ, STD 248-6
  • AIC Rating: 10kA @ 250V
  • Class Rating: H
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712101677
  • GTIN: 00051712101677
