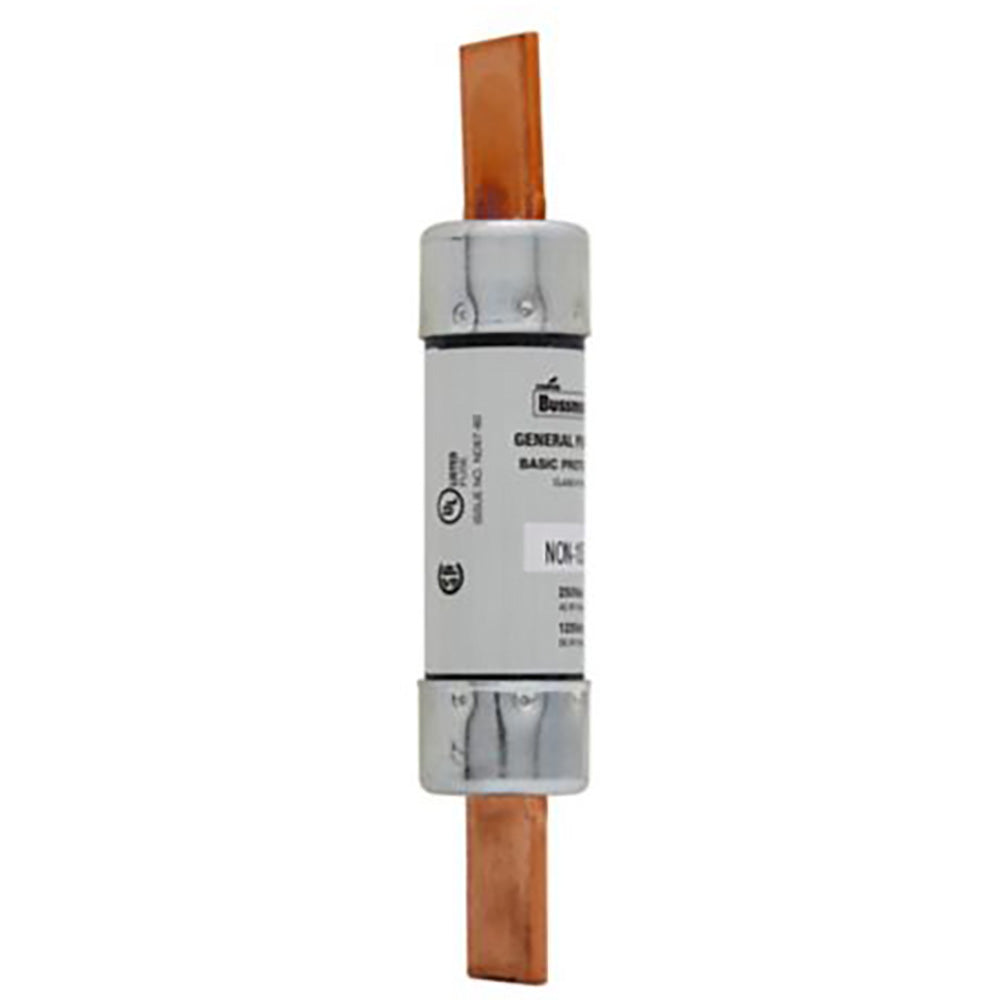

Bussmannn NON-80 - Class H Fuse 80A@250V (10kA AIC Rating)

Bussmannn NON-80 is a Class H low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 80A current rating with a 10kA interrupting capacity, housed in a durable 1.06-inch diameter barrel construction measuring 5-7/8 inches in length. The fuse meets UL, CSA, and CE standards (File E4274, Class 1421-01) with its non-renewable design, providing reliable protection for motor circuits and power distribution equipment.

Key Features & Specifications

• Type: NON series non-renewable fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 80A
• Dimensions: 5-7/8 in length, 1.06 in diameter
• Weight: 1.3 lb
• Standards: UL Listed (File E4274), CSA Certified (Class 1421-01, File 53787), CE, STD 248-6
• Applications: Motor circuit protection, industrial power distribution
• Class Rating: H
• AIC rating: 10kA@250V
• Certification: Guide JDDZ, STD 248-6
• Country of Origin: Mexico

Product Identification

• UPC: 051712101660
• GTIN: 00051712101660
