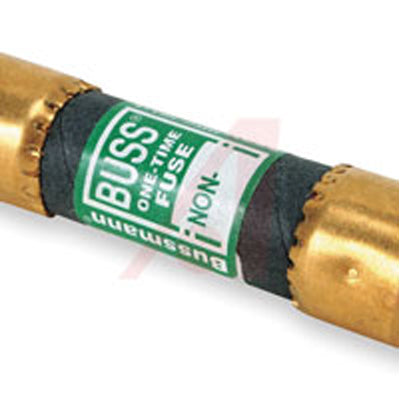

Bussmann NON-8 - Class K5 Fuse 8A 250V (50kA AIC Rating)

Bussmann NON-8 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating with an 8A current rating and 50kA interrupting capacity at 250V for reliable overcurrent protection. The fuse construction includes a single-barrel design with 0.56-inch diameter and 2-inch length, weighing 1.35 lb for compact installation. It meets UL 248-9 standards and carries CE, UL Listed, and CSA certifications for industrial compliance. Typical applications include motor branch circuits, transformer protection, and industrial control panels requiring Class K5 performance.

Key Features & Specifications

• Type: NON Series current-limiting fuse, single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 8A
• Dimensions: 2-inch length, 0.56-inch diameter
• Weight: 1.35 lb
• Standards: UL 248-9, CSA Certified Class 1421-01
• Applications: Motor circuits, transformer protection, industrial control panels
• Certification: CE, UL Listed, Guide JDDZ, File E4274, CSA Certified Class 1421-01, File 53787
• AIC rating: 50kA@250V
• Class Rating: K5
• Barrels: 1
• Family: NON Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712300162
• GTIN: 00051712300162
