Bussmann NON-70 - Class H Time-Delay Fuse 70A 250V

Bussmann
Price
Save $122.83
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

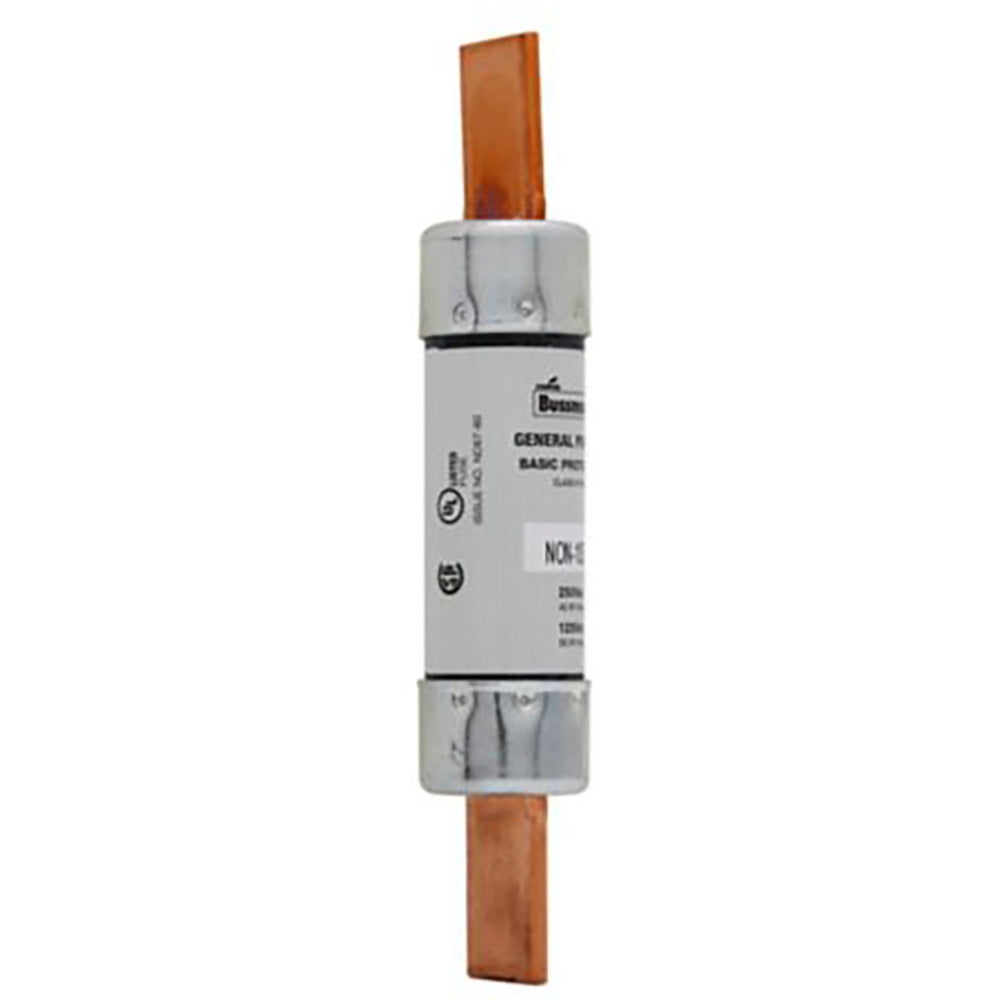

Bussmann NON-70 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 70A current rating and a 250V AC voltage rating, with a 10kA interrupting capacity at that voltage to safely clear high-level faults. The fuse is constructed as a single-barrel, 1.06-inch diameter device with a length of 5.88 inches and a weight of 0.3 lb, built to Class H performance standards. It complies with key industry certifications including UL and CSA, ensuring reliable operation. Typical applications include protecting motors, transformers, and other equipment where a time-delay characteristic is required to handle inrush currents.

Key Features & Specifications
  • Type: Low Voltage, Time-Delay, Single Barrel, Class H Fuse
  • Voltage Rating: 250V AC
  • Current Rating: 70A
  • Dimensions: 5.88 in L x 1.06 in H x 1.06 in W
  • Standards: UL Listed (File E4274), CSA Certified (Class 1421-01, File 53787), CE, Guide JDDZ, STD 248-6
  • Applications: Branch Circuit & Feeder Protection for Motors, Transformers
  • AIC rating: 10kA @ 250V
  • Class Rating: H
  • Diameter: 1.06 in
  • Barrels: 1
  • Weight: 0.3 lb


Product Identification
  • UPC: 051712101653
  • GTIN: 00051712101653
