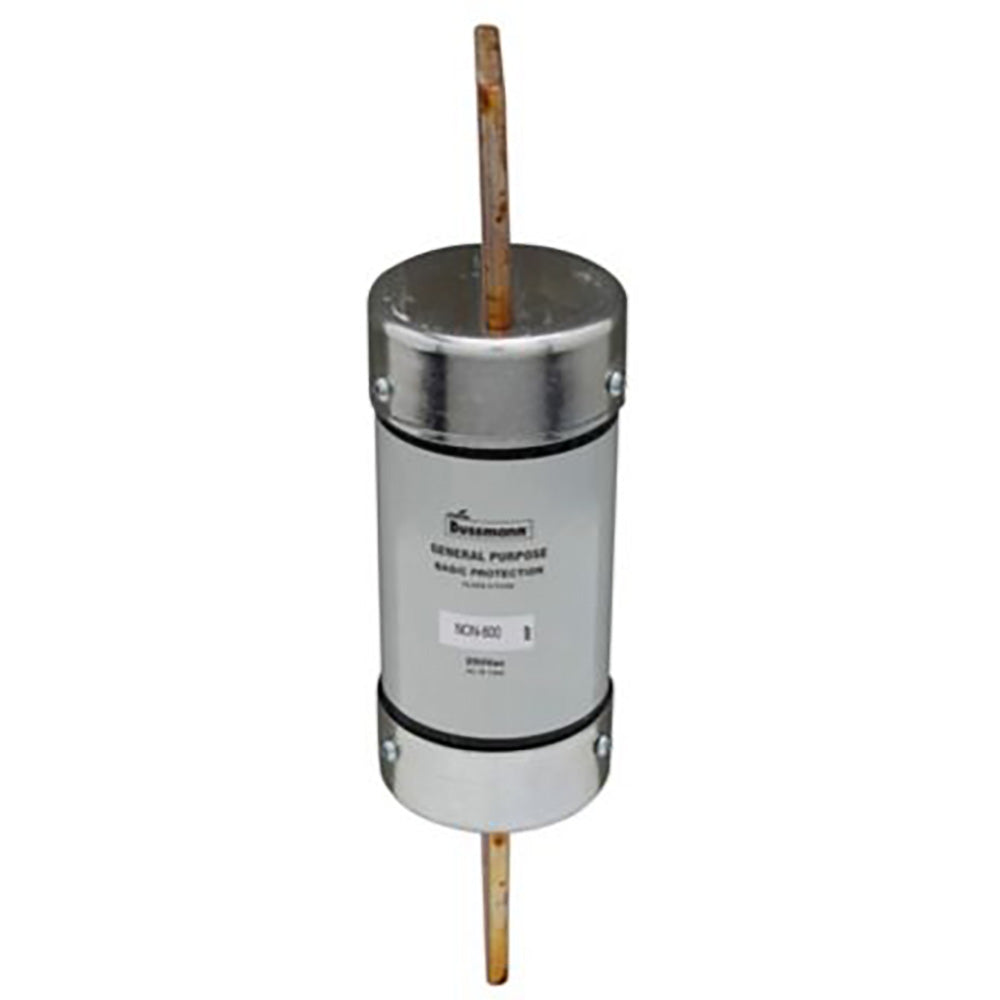

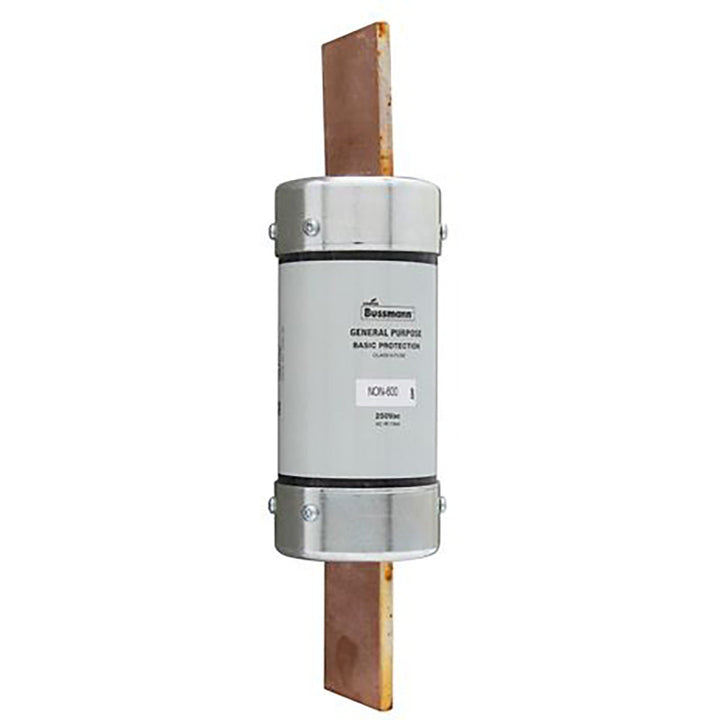

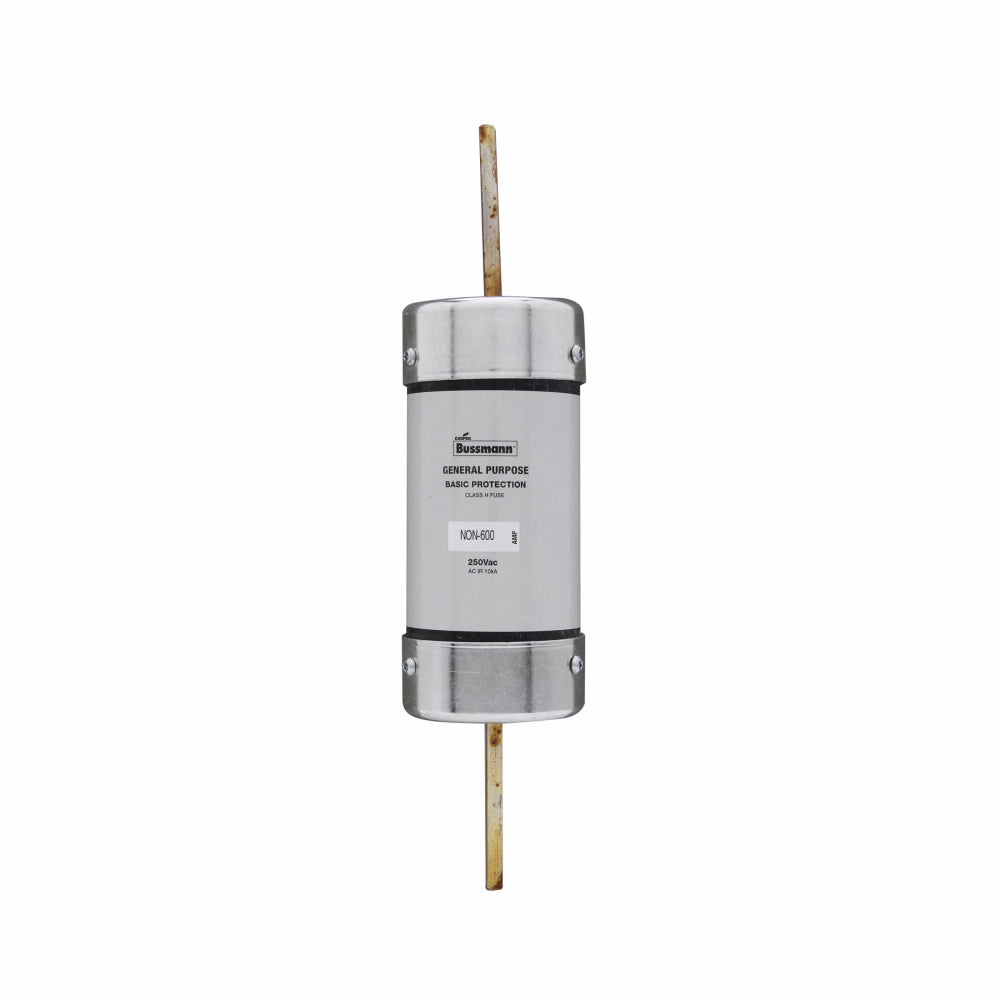

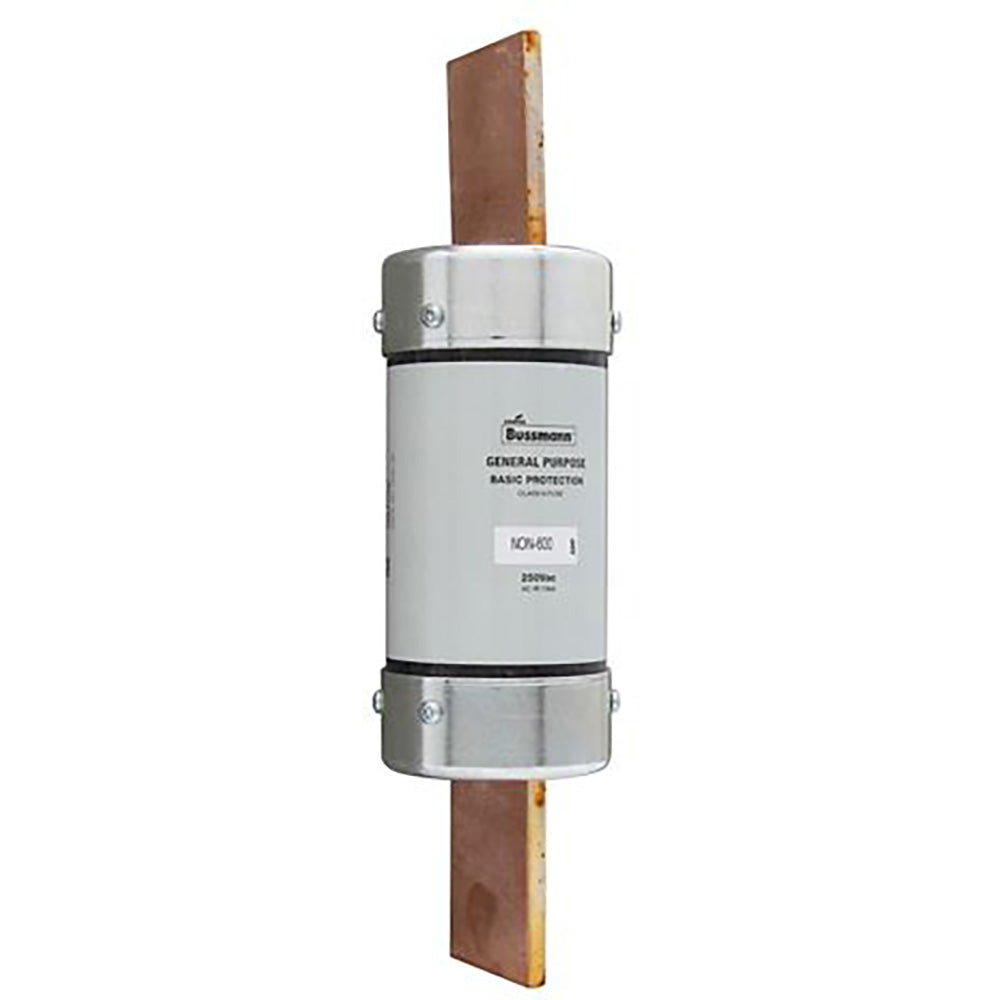

Bussmann NON-600 - Low Voltage Fuse 600A (10kA AIC @250V)

Bussmann NON-600 is a low-voltage current-limiting fuse designed for overcurrent protection in industrial electrical systems. It features a 600A current rating and 250V voltage rating with a 10kA interrupting capacity at 250VAC. The fuse construction includes a single-barrel design with 0.81-inch diameter and measures 10-3/8 inches in length, weighing 2 lb. It complies with UL 248-6 standards and carries CE, UL Listed, and CSA certifications for industrial safety requirements. Typical applications include motor circuit protection, feeder circuits, and industrial control panels where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 600A
• Dimensions: 10-3/8 inches length, 0.81 inches diameter
• Standards: UL 248-6, CE, UL Listed, CSA Certified Class 1421-01
• Applications: Motor circuit protection, feeder circuits, industrial control panels
• AIC rating: 10kA@250V
• Class Rating: K5
• Barrels: 1
• Weight: 2 lb
• Certification: CE, UL Listed, Guide JDDZ, File E4274, STD 248-6, CSA Certified Class 1421-01, File 53787

Product Identification

• UPC: 051712306003
• GTIN: 00051712306003
