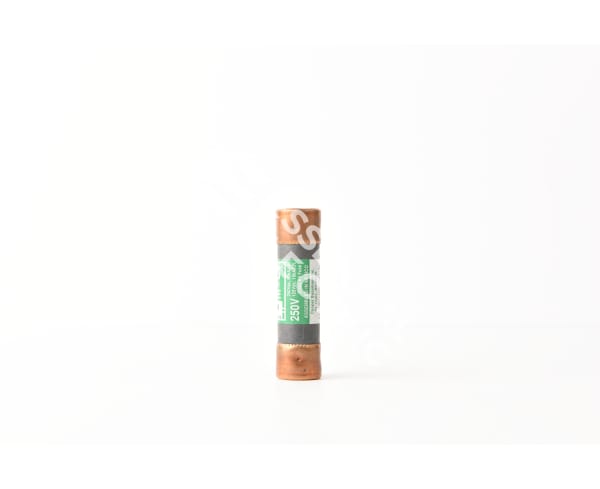

Bussmann NON-60 - Low Voltage Fuse 60A (50kA AIC @250V)

Bussmann NON-60 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 60A current rating and 250V voltage rating with a 50kA interrupting capacity, providing reliable overcurrent protection. The fuse construction includes a single-barrel design with 0.81-inch diameter and 3-inch length, weighing 1 lb for robust performance. It meets multiple industry standards including UL listing and CSA certification for safety compliance. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where reliable circuit protection is essential.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 60A
• Dimensions: 3-inch length, 0.81-inch diameter
• Standards: UL Listed, CSA Certified, CE marked
• Applications: Motor circuits, feeder protection, industrial control panels
• AIC rating: 50kA@250V
• Class Rating: K5
• Weight: 1 lb
• Certification: UL File E4274, CSA File 53787, STD 248-9
• Barrels: 1
• Family: NON Series
• Country of Origin: Mexico

Product Identification

• UPC: 051712101646
• GTIN: 00051712101646
