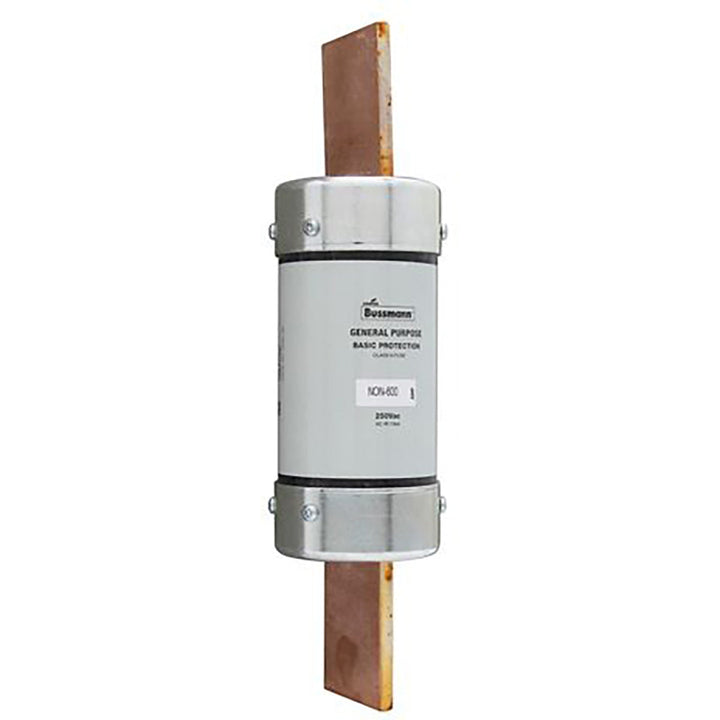

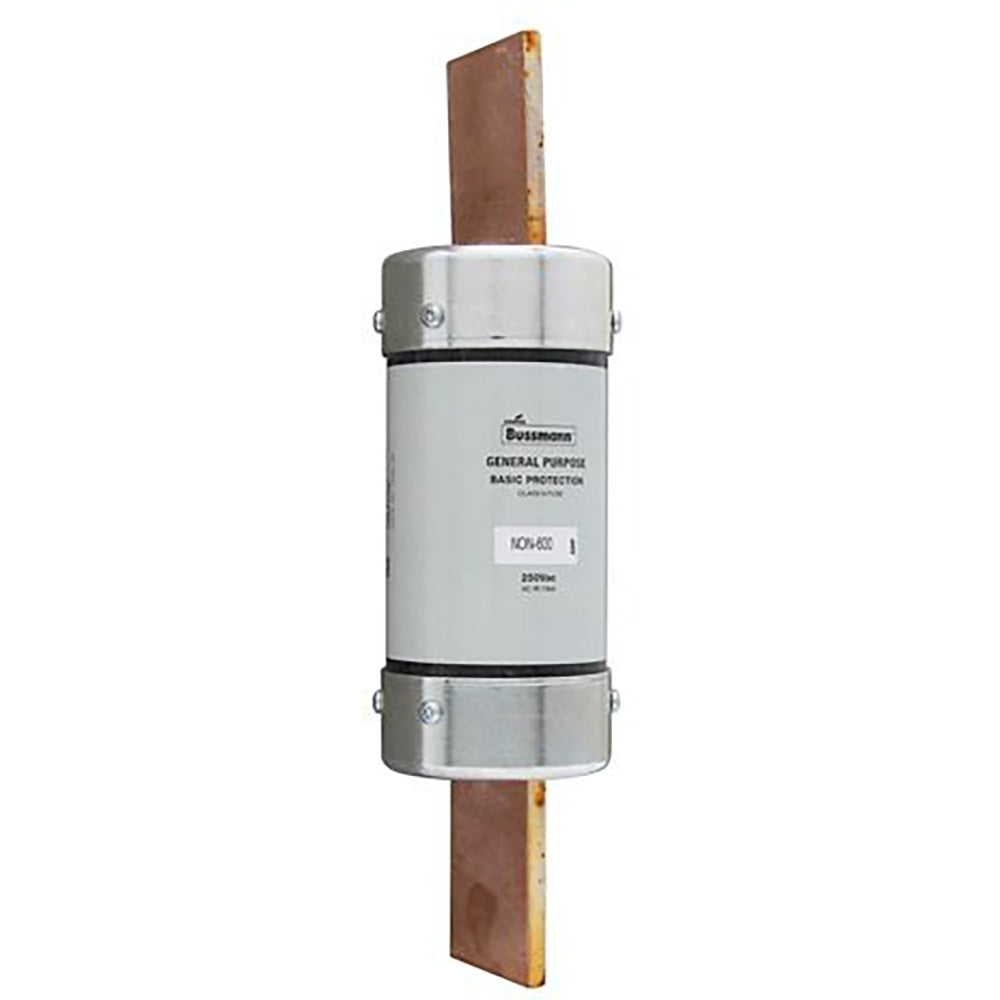

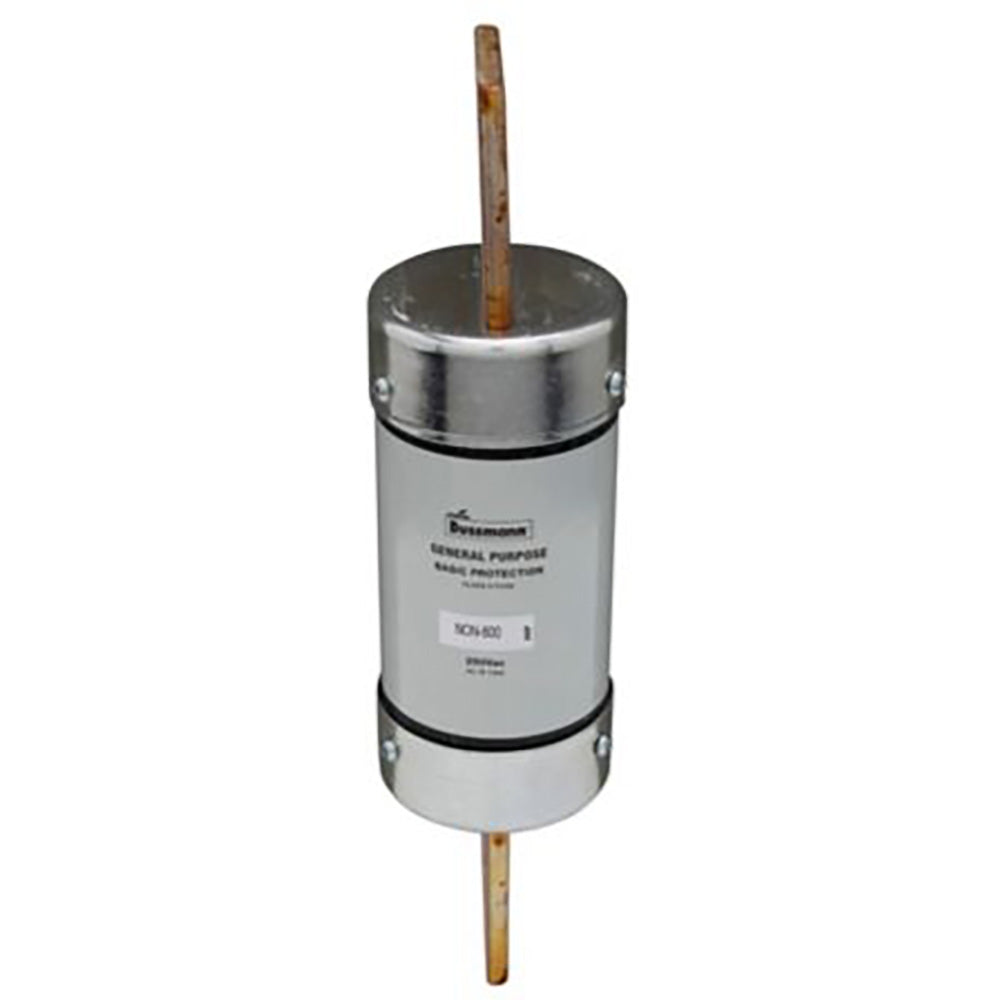

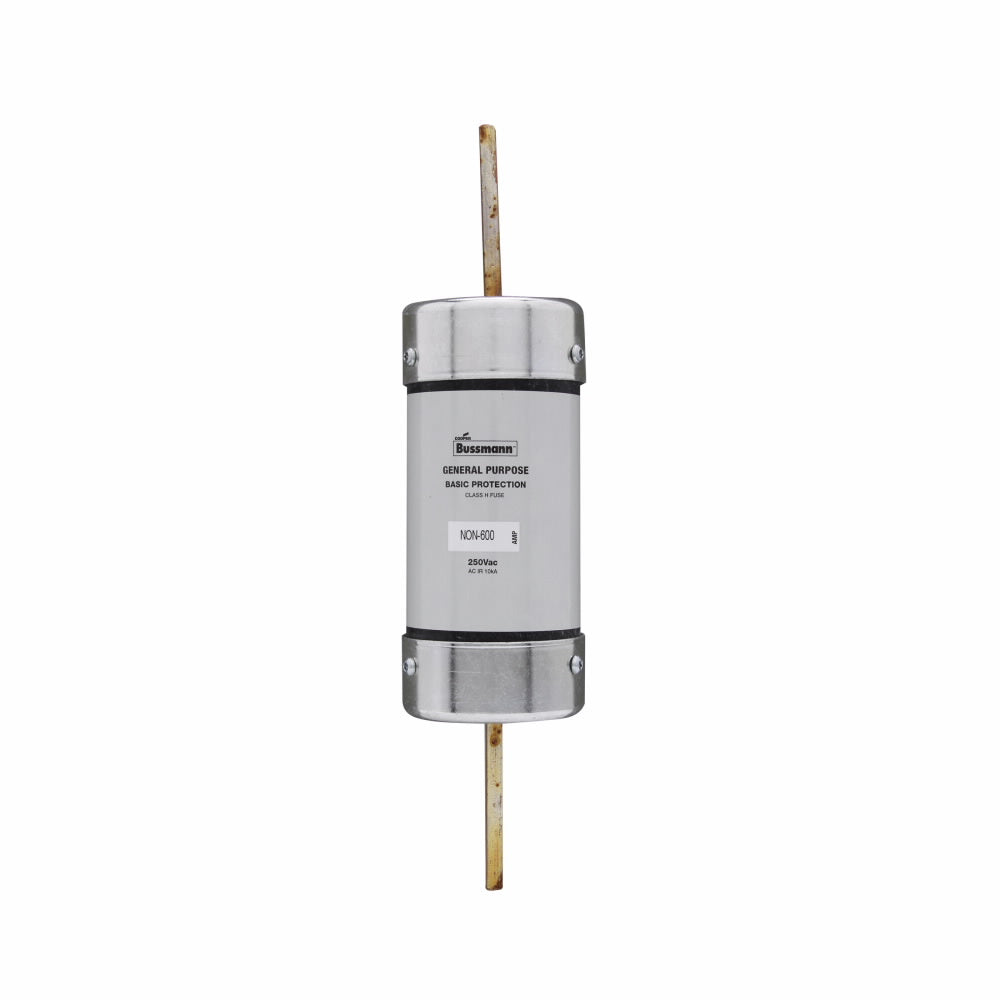

Bussmann NON-500 - Class H Fuse 500A 250V (10kA AIC)

Bussmann
Price
Save $885.59
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann NON-500 is a Class H, low-voltage fuse designed for providing high-current circuit protection in industrial power distribution systems. It features a 500A current rating and a 250V AC voltage rating, with an interrupting capacity of 10kA to safely clear high fault currents. The fuse is constructed as a single-barrel unit with a 2.59-inch diameter and an overall length of 10.38 inches, contributing to a robust physical profile with a weight of 2.68 lb. It is engineered to meet industry standards for Class H fuse performance, making it suitable for protecting feeders, mains, and motor circuits in panelboards and switchgear.

Key Features & Specifications
  • Type: Class H, one-time fuse, low-voltage, single barrel
  • Voltage Rating: 250V AC
  • Current Rating: 500A
  • Dimensions: 10.38 in L x 2.59 in H x 2.59 in W
  • Standards: Class H fuse standards
  • Applications: Industrial feeder, mains, and motor circuit protection in panelboards and switchgear
  • AIC rating: 10kA @ 250V
  • Diameter: 2.59 in
  • Class Rating: H
  • Barrels: 1
  • Weight: 2.68 lb


Product Identification
  • UPC: 051712305006
  • GTIN: 00051712305006
