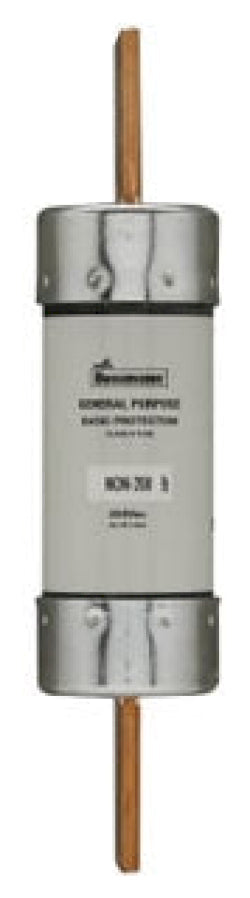

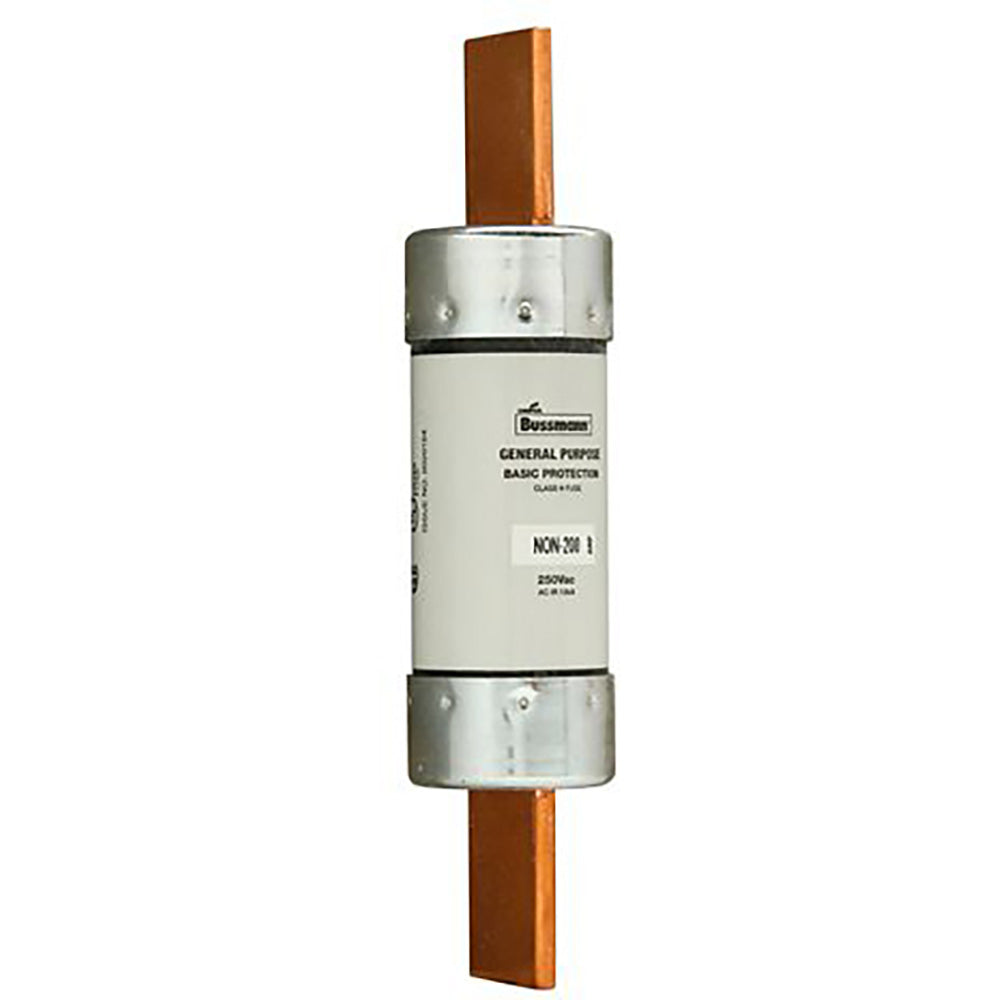

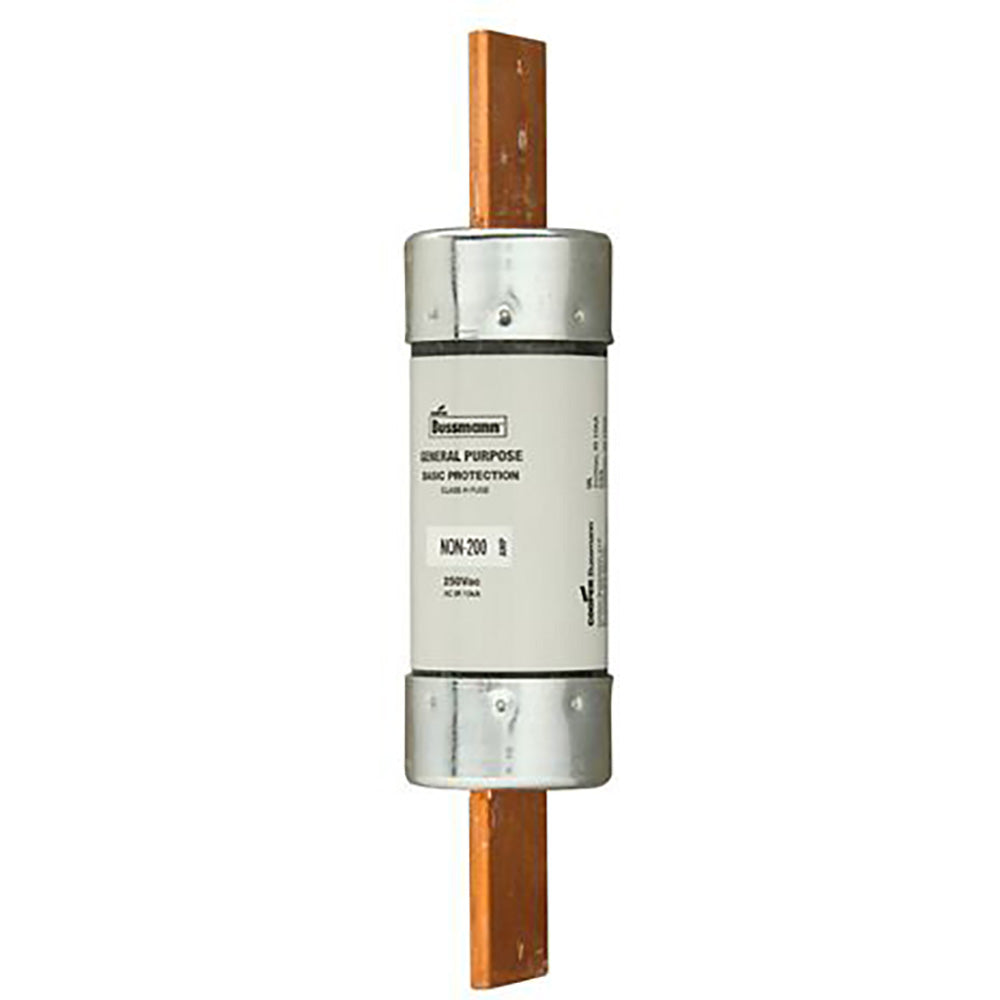

Bussmannn NON-150 - Class H Fuse 150A@250V (10kA AIC Rating)

Bussmannn NON-150 is a Class H low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 150A current rating with a 10kA interrupting capacity at rated voltage, housed in a durable single-barrel construction measuring 7-1/8 inches in length and 1.56 inches in diameter. The fuse meets multiple safety certifications including UL, CSA, and CE standards with its robust design compliant with STD 248-6 specifications. Typical applications include motor branch circuits, transformer protection, and feeder circuits in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: Class H NON-series low-voltage fuse
• Voltage: 250V AC
• Current: 150A
• Dimensions: 7-1/8" length x 1.56" diameter
• Weight: 1.8 lb
• Standards: UL Listed (File E4274), CSA Certified (Class 1421-01, File 53787), CE, Guide JDDZ
• AIC Rating: 10kA@250V
• Construction: Single-barrel design
• Country of Origin: Mexico

Product Identification

• UPC: 051712101707
• GTIN: 00051712101707
