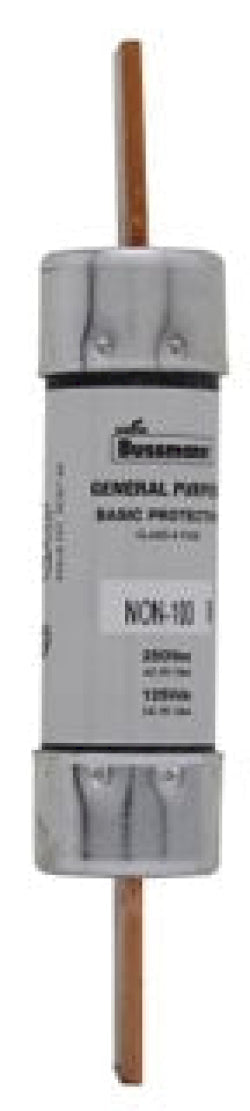

Bussmann NON-100 - Class H Renewable Fuse 100A (10kA Interrupting Rating)

Bussmann NON-100 is a Class H low-voltage fuse designed for circuit protection in industrial applications. It features a 100A current rating and 250V voltage rating with an interrupting capacity of 10kA. The single-barrel construction measures 5-7/8 inches in length with a 1.06-inch diameter and weighs 1.278 lb. This fuse complies with UL, CSA, and CE standards including UL File E4274 and CSA File 53787. Typical applications include motor branch circuits, feeder circuits, and industrial control panels requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Class H renewable fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 100A
• Dimensions: 5-7/8 inches length, 1.06 inches diameter
• Standards: UL Listed (File E4274), CSA Certified (Class 1421-01, File 53787), CE, Guide JDDZ, STD 248-6
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 10kA@250V
• Class Rating: H
• Barrels: 1
• Weight: 1.278 lb
• Certification: CE, UL Listed, Guide JDDZ, File E4274, STD 248-6, CSA Certified Class 1421-01, File 53787

Product Identification

• UPC: 051712101684
• GTIN: 00051712101684
