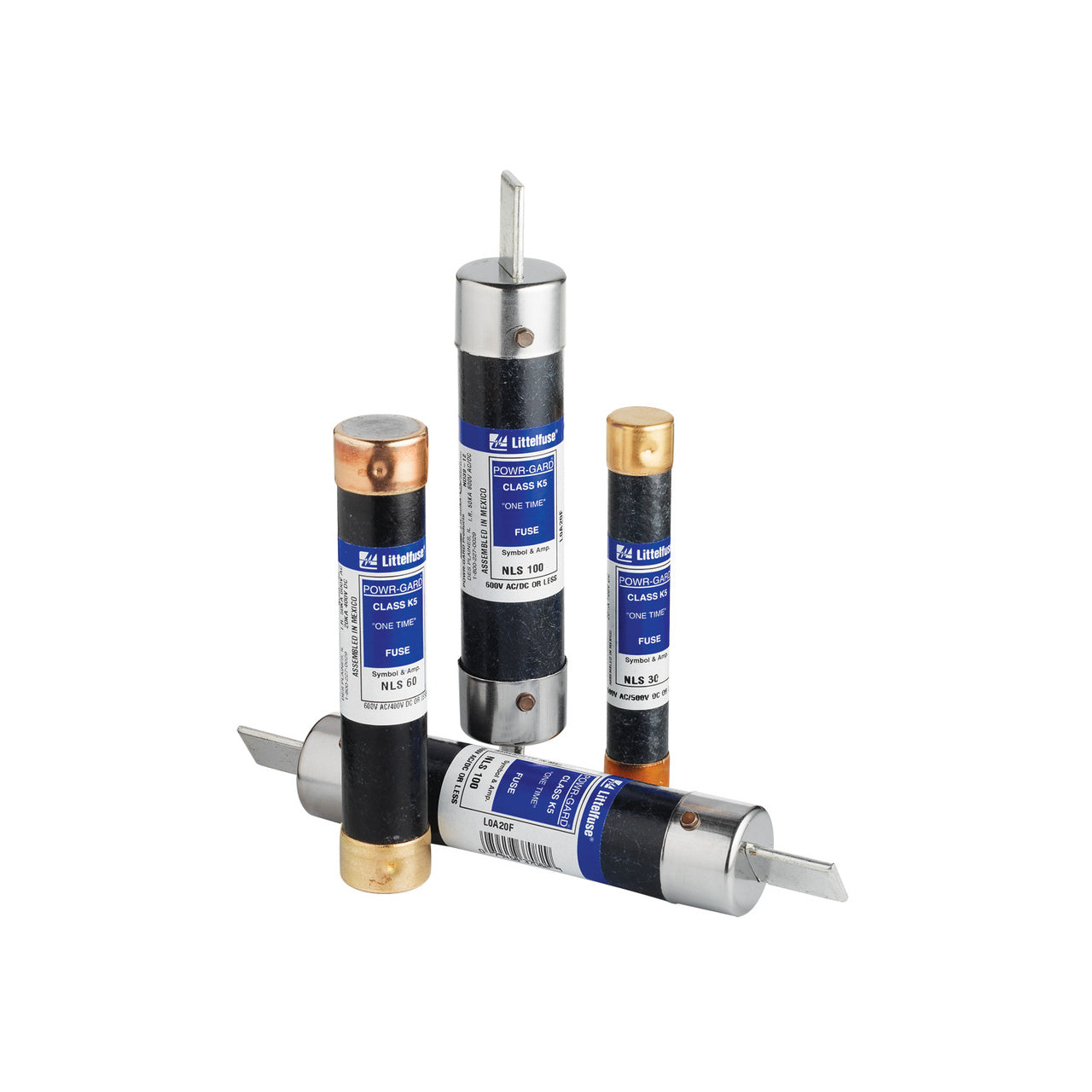

Littelfuse NLS006 - Low Voltage Fuse 6A 600V (50kA Interrupting Capacity)

Littelfuse NLS006 is a low voltage current-limiting fuse designed for industrial circuit protection applications requiring high interrupting capacity. The fuse features a 600V AC voltage rating with a 6A current rating and provides 50kA interrupting capacity at 600V for reliable short-circuit protection. Constructed as a single-barrel Class K5 fuse with a 1.31-inch diameter, the unit weighs 5.19 lb and meets industry standards for current-limiting performance. This fuse is UL/CSA certified and designed for use in industrial control panels, motor circuits, and feeder protection applications where high fault current interruption is critical.

Key Features & Specifications

• Type: Current-limiting low voltage fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 1.31-inch diameter
• Standards: UL/CSA certified
• Applications: Industrial control panels, motor circuits, feeder protection
• AIC rating: 50kA@600V
• Class Rating: K5
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945837058
• GTIN: 00079458370584
