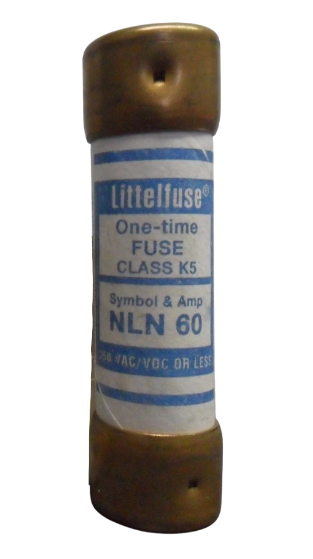

Littelfuse NLN060 - Class K5 Fuse 60A@250V (50kA AIC)

Littelfuse NLN060 is a low-voltage fuse designed for circuit protection in industrial applications. This 60A, 250V fuse features a K5 class rating with a 50kA interrupting capacity at rated voltage, housed in a compact 0.81-inch diameter barrel construction weighing 0.94 lb. UL Listed and CSA certified to Standard 248-9, it provides reliable overcurrent protection for motor circuits, transformers, and power distribution systems.

Key Features & Specifications

• Type: NLN class K5 time-delay fuse with single barrel design
• Voltage Rating: 250V AC
• Current Rating: 60A
• Dimensions: 0.81" diameter
• Standards: UL Listed/CSA Certified per Standard 248-9
• Applications: Motor protection, transformers, power distribution
• AIC rating: 50kA@250V
• Class Rating: K5
• Barrels: 1
• Weight: 0.94 lb

Product Identification

• UPC: 079458360783
