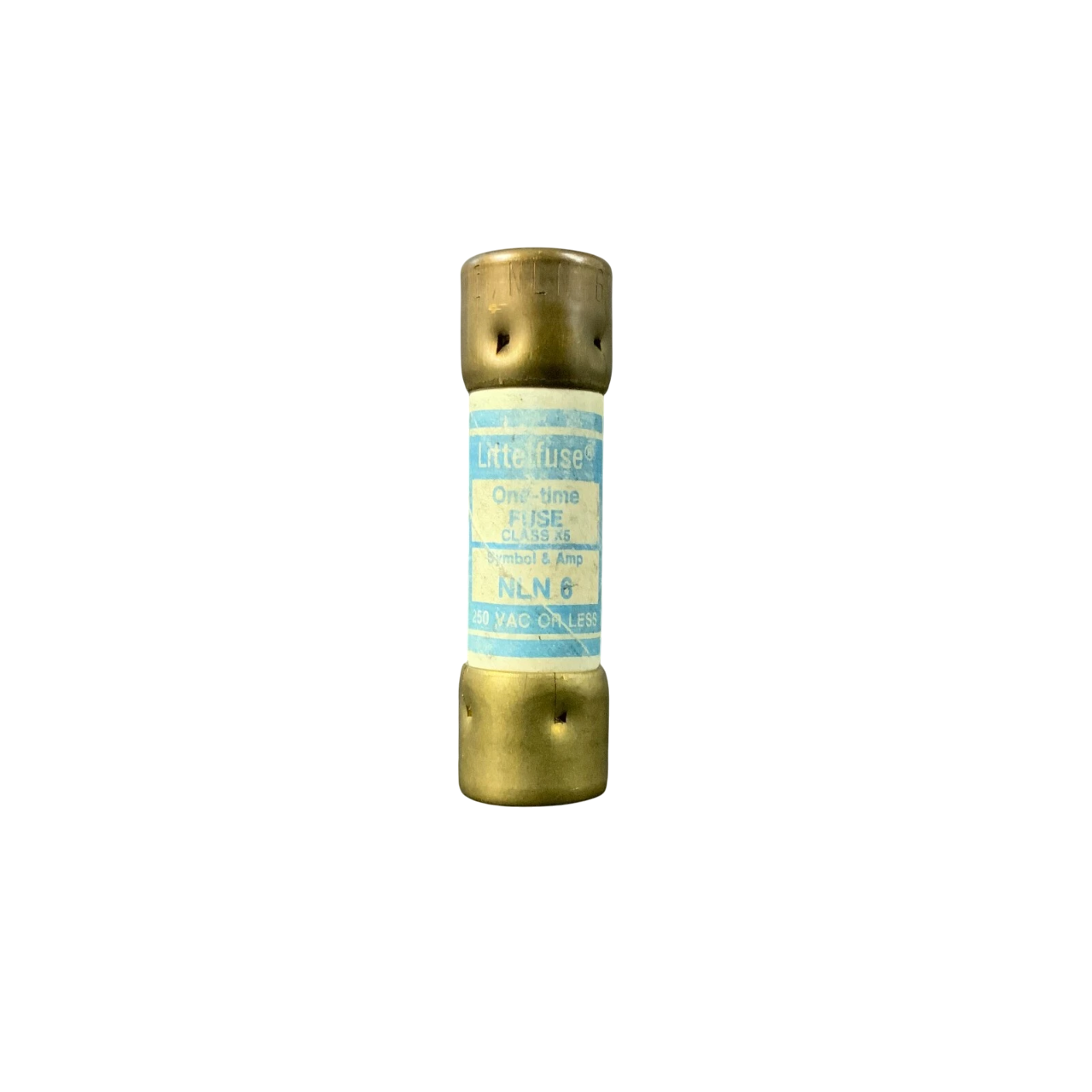

Littelfuse NLN006 - Low Voltage Fuse 6A 250V (50kA AIC)

Littelfuse NLN006 is a low-voltage fuse designed for circuit protection in industrial applications. This UL-listed/CSA-certified NLN-class fuse features a 250V AC/DC voltage rating and 6A current rating with a 50kA interrupting capacity at 250V. The compact cylindrical design measures 0.56" in diameter and weighs 0.45 lb, constructed as a single-barrel K5-class fuse meeting Standard 248-9 requirements. Typical applications include motor control centers, industrial control panels, and power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: NLN-class low-voltage fuse, single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 6A
• Dimensions: 0.56" diameter
• Standards: UL Listed/CSA Certified (Standard 248-9)
• Applications: Industrial control panels, motor protection, power distribution
• Class Rating: K5
• AIC rating: 50kA@250V
• Weight: 0.45 lb
• Barrels: 1

Product Identification

• UPC: 079458360585
