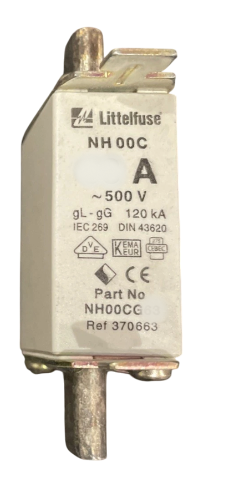

Littelfuse NH00CG100 - NH00C Fuse 100A 500V (120kA AIC)

Littelfuse NH00CG100 is a low-voltage NH00C fuse designed for overcurrent protection in industrial electrical systems. It features a 500V AC/DC voltage rating and 100A current rating with a 120kA interrupting capacity at 500V for reliable circuit protection. The fuse employs a single-barrel knife-blade connection design with gL/gG class rating for full-range protection against overloads and short circuits. It complies with international standards for low-voltage fuses, ensuring compatibility with industrial control panels and power distribution equipment. Typical applications include motor protection, transformer circuits, and feeder protection in commercial/industrial facilities.

Key Features & Specifications

• Type: NH00C cartridge fuse, gL/gG class, single-element construction
• Voltage Rating: 500V AC/DC
• Current Rating: 100A
• AIC Rating: 120kA@500V
• Connection: Knife blade
• Barrels: 1
• Standards: IEC 60269, UL/CSA certified
• Applications: Motor circuits, transformers, industrial power distribution
