Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)
Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)
Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)
Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)
Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)
Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)

Federal Pacific NA2P90 - 2-Pole 90A Circuit Breaker (10kA AIC, 240V)

Federal Pacific
Price
Save $-286.15
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

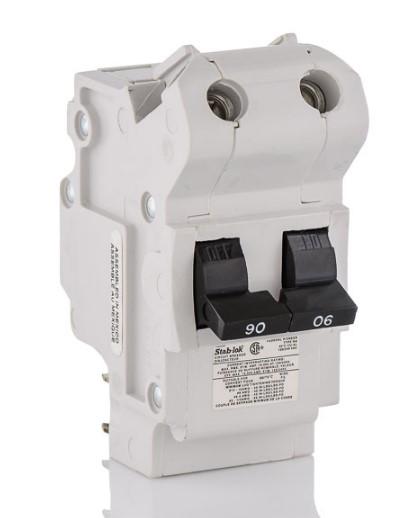

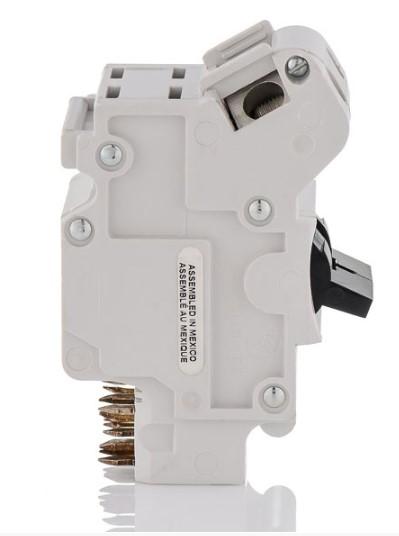

Federal Pacific NA2P90 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 90A current rating and a 240V AC voltage rating, housed within a compact plug-in unit measuring 136.65 mm in depth and 143.26 mm in width with a weight of 3 lb. This CSA-certified, thermal-magnetic breaker offers 10kA interrupting capacity and utilizes a long-time and instantaneous (LI) trip function for coordinated protection. Its design is engineered for integration into single-phase applications, typically protecting feeder and branch circuits utilizing copper conductors from AWG 4 to 2/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Stab-Lok Family, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Dimensions: 136.65 mm (Depth) x 143.26 mm (Width)
  • Weight: 3 lb
  • Standards: CSA Certified
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection
  • Phase: 1
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: AWG 4 to AWG 2/0 Copper
  • Item Subcategory: Molded Case


Product Identification
  • Manufacturer: Federal Pacific
  • Model: NA2P90
