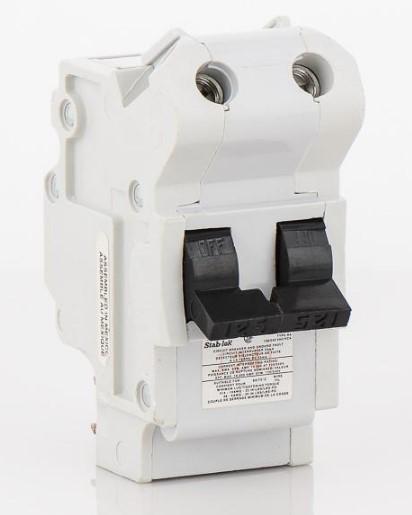

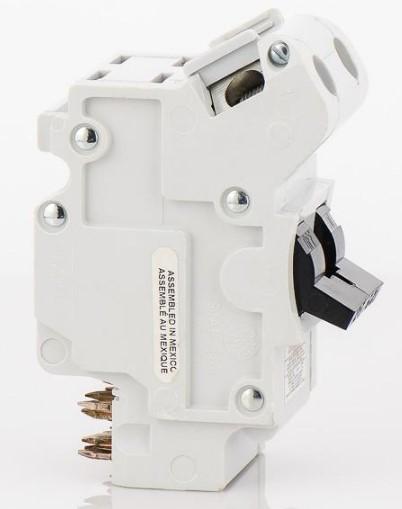

American/Federal Pacific NA2P125 - Molded Case Circuit Breaker 125A 2-Pole

Price
Regular price $669.68
Regular price Sale price $669.68
Save $-669.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
American/Federal Pacific NA2P125 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 125A current rating and a 240V AC voltage rating, housed within a compact plug-in unit measuring 78.49 mm in depth and 112.78 mm in width with a weight of 3 lb. This CSA-certified thermal magnetic breaker utilizes a long-time and instantaneous (LI) trip function and offers a 10kA interrupting capacity at 240V for robust fault protection. Its design is engineered for integration into Stab-Lok panelboards, protecting conductors from size AWG 4 to AWG 2/0 copper in commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 125A
  • Dimensions: 3.09 in (78.49 mm) Depth x 4.44 in (112.78 mm) Width
  • Weight: 3 lb
  • Standards: CSA Certified
  • Applications: Commercial and Industrial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 125A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Wire Size: AWG 4 to AWG 2/0 Copper
  • Certification: CSA
  • Family: Stab-Lok
  • Item Subcategory: Molded Case
