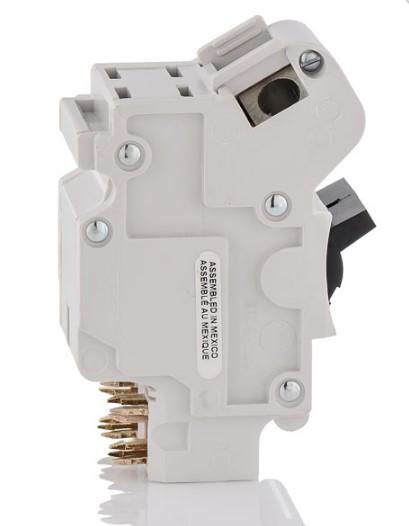

Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole
Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole
Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole
Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole
Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole
Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole

Federal Pacific NA2P100 - Molded Case Circuit Breaker 100A 2-Pole

Federal Pacific
Price
Save $-598.50
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Federal Pacific NA2P100 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact plug-in unit measuring 78.49 mm in depth and 112.78 mm in width with a weight of 3 lb. This CSA-certified thermal magnetic breaker utilizes a long-time and instantaneous (LI) trip function and offers a 10kA interrupting capacity at 240V for robust fault protection. Its design is engineered for integration into Stab-Lok panelboards, typically safeguarding circuits with conductor sizes from AWG 4 to AWG 2/0 copper in industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 78.49 mm (Depth) x 112.78 mm (Width)
  • Standards: CSA Certified
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 100A
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Wire Size: AWG 4 to AWG 2/0 Copper
  • Certification: CSA
  • Family: Stab-Lok
  • Item Subcategory: Molded Case
  • Weight: 3 lb


Product Identification
  • Manufacturer: Federal Pacific
  • Model: NA2P100
