Eaton Bussmann MV155F2DBX125E - Medium Voltage Fuse 125A 15.5kV

Bussmann
Price
Save $4,374.89
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

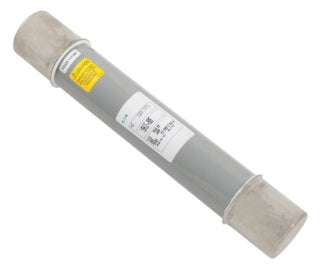

Eaton Bussmann MV155F2DBX125E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 15.5 kV voltage rating and a 125A continuous current rating, housed within a robust two-barrel construction measuring 23 inches in height with a 15-inch clip center spacing. The fuse is engineered to ANSI standards with an E classification and provides a 50 kA interrupting rating at 15.5 kV for reliable short-circuit protection. Its design is suitable for demanding applications in utility and industrial switchgear, ensuring system integrity.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Two-Barrel Construction
  • Voltage Rating: 15500 V AC
  • Current Rating: 125 A
  • Dimensions: 0.75 in x 23 in x 0.75 in (Length/Depth x Height x Width)
  • Standards: ANSI Certified, Class E Rating
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • AIC rating: 50 kA @ 15.5 kV
  • Diameter: 2 in
  • Barrels: 2
  • Clip Center: 15 in
  • Weight: 19.2 lb


Product Identification
  • UPC: 05171226909
  • GTIN: 00051712269094
