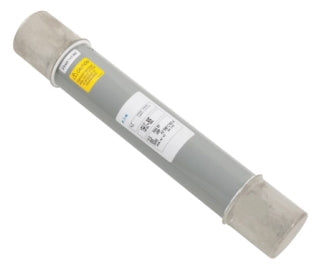

Eaton Bussmann MV155F1DBX30E - Medium Voltage Fuse 30A 15.5kV
MV155F1DBX30E Bussmannn MV155 Medium Voltage Fuse 15500V 30A Fuse - Essential Electric Supply
Eaton Bussmann MV155F1DBX30E - Medium Voltage Fuse 30A 15.5kV

Eaton Bussmann MV155F1DBX30E - Medium Voltage Fuse 30A 15.5kV

Bussmann
Price
Save $3,607.44
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann MV155F1DBX30E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It is rated for 30A continuous current at 15.5kV with an interrupting rating of 50kA, ensuring reliable clearing of high fault currents. The fuse features a single-barrel, Class E construction with ANSI certification and measures 23 inches in height with a 15-inch clip center spacing for standardized mounting. This unit is engineered for demanding applications such as in switchgear, motor starters, and capacitor banks, providing robust overcurrent protection in medium voltage circuits.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Single-Barrel, Class E Fuse
  • Voltage Rating: 15500V AC
  • Current Rating: 30A
  • Dimensions: 0.75 in x 23 in x 0.75 in (Depth x Height x Width)
  • Standards: ANSI Certified
  • Applications: Transformer, Motor, and Feeder Protection; Switchgear; Capacitor Banks
  • AIC rating: 50kA @ 15.5kV
  • Class Rating: E
  • Barrels: 1
  • Clip Center: 15 in
  • Diameter: 2 in
  • Weight: 10.25 lb


Product Identification
  • UPC: 051712269315
  • GTIN: 00051712269315
