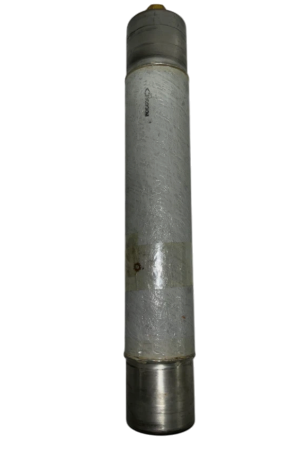

Eaton Bussmann MV155F1DBS50E is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems up to 15.5kV. It features a 50A current rating and a high interrupting capacity of 50kA at its rated voltage, housed within a robust, single-barrel ferrule-connected construction measuring 23 inches in height with a 3-inch diameter. The fuse is built to Class E standards and is engineered for reliable performance in demanding applications such as transformer protection, motor circuits, and feeder protection within switchgear and control equipment.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Class E, Single Barrel, Ferrule Connection
  • Voltage Rating: 15500V AC
  • Current Rating: 50A
  • Dimensions: 0.75 in x 23 in x 0.75 in (L/D x H x W)
  • Standards: Class E Rating
  • Applications: Transformer, Motor, and Feeder Protection in Industrial Power Systems
  • AIC rating: 50kA @ 15.5kV
  • Connection: Ferrule
  • Barrels: 1
  • Clip Center: 15 in
  • Diameter: 3 in
  • Weight: 1.1 lb


Product Identification
  • UPC: 005171255909
  • GTIN: 00051712559096
