Bussmann MV055F1DAX50E - Medium Voltage Fuse 50A 5.5kV (50kA AIC)
MV055F1DAX50E Bussmannn MV055 Medium Voltage Fuse 5500V 50A Fuse - Essential Electric Supply
Bussmann MV055F1DAX50E - Medium Voltage Fuse 50A 5.5kV (50kA AIC)

Bussmann MV055F1DAX50E - Medium Voltage Fuse 50A 5.5kV (50kA AIC)

Bussmann
Price
Save $2,716.25
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

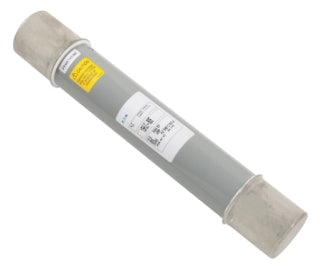

Bussmann MV055F1DAX50E is a medium voltage fuse designed for overcurrent protection in industrial power distribution systems up to 5.5kV. It features a 50A current rating and a high 50kA interrupting capacity at its rated voltage for reliable fault clearing. The fuse is constructed as a single-barrel, Class E device with ANSI certification, measuring 15.86 inches in height with a 12-inch clip center for standardized mounting. This unit is engineered for demanding applications such as motor protection, transformer protection, and feeder circuit protection in medium voltage switchgear and control equipment.

Key Features & Specifications
  • Type: Medium Voltage (MV055), Single-Barrel, Current-Limiting Fuse, Class E
  • Voltage Rating: 5500V AC
  • Current Rating: 50A
  • Dimensions: 3 in (Depth) x 15.86 in (Height) x 3 in (Width)
  • Standards: ANSI Certified
  • Applications: Motor Protection, Transformer Protection, Feeder Circuit Protection
  • AIC rating: 50kA @ 5.5kV
  • Class Rating: E
  • Barrels: 1
  • Clip Center: 12 in
  • Diameter: 2 in
  • Weight: 0.65 lb


Product Identification
  • UPC: 051712269636
  • GTIN: 00051712269636
