Eaton Bussmann MV055F1DAX175E - Medium Voltage Fuse 175A (5500V, 50kA AIC)
MV055F1DAX175E Bussmannn MV055 Medium Voltage Fuse 5500V 175A Fuse - Essential Electric Supply
Eaton Bussmann MV055F1DAX175E - Medium Voltage Fuse 175A (5500V, 50kA AIC)

Eaton Bussmann MV055F1DAX175E - Medium Voltage Fuse 175A (5500V, 50kA AIC)

Bussmann
Price
Save $2,389.43
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

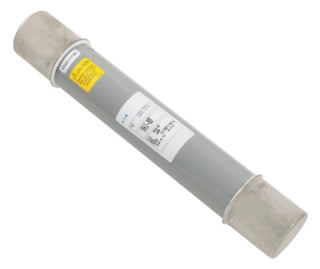

Eaton Bussmann MV055F1DAX175E is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. It provides a 175A current rating and 5500V voltage rating for robust protection, constructed as a single-barrel, Class E fuse with ANSI certification and a 50kA interrupting rating at 5.5kV. The unit features a 2-inch diameter and compact 3" x 15.86" x 3" footprint with a 12-inch clip center spacing for standardized mounting, ensuring reliable performance in demanding applications such as motor protection and feeder circuits.

Key Features & Specifications
  • Type: Medium Voltage Fuse, MV055, single-barrel construction
  • Voltage Rating: 5500V
  • Current Rating: 175A
  • Dimensions: 3 in (Length/Depth) x 15.86 in (Height) x 3 in (Width)
  • Standards: ANSI certified
  • Applications: Industrial power distribution, motor protection, feeder circuits
  • AIC rating: 50kA at 5.5kV
  • Class Rating: E
  • Diameter: 2 inches
  • Barrels: 1
  • Clip Center: 12 inches
  • Weight: 4 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171255290
  • GTIN: 00051712552905
