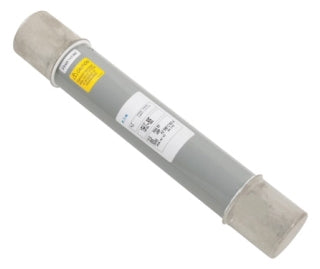

Bussmann MV055F1DAX150E - Medium Voltage Fuse 150A 5500V (Class E, 50kA AIC)

The Bussmann MV055F1DAX150E is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. It features a 150A current rating and 5500V voltage rating with a 50kA interrupting capacity at 5.5kV, providing reliable fault protection. The fuse construction includes a single-barrel design measuring 15.86 inches in height with 3-inch square cross-section dimensions and 12-inch clip center spacing. Manufactured to ANSI standards with Class E rating, this fuse meets rigorous industry requirements for medium voltage applications. Typical installations include motor control centers, transformers, and switchgear in industrial facilities requiring robust circuit protection.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 150A
• Dimensions: 15.86" height × 3" width × 3" depth
• Standards: ANSI certified, Class E rated
• Applications: Industrial power distribution, motor control centers, transformers, switchgear
• AIC rating: [email protected]
• Diameter: 2 inches
• Barrels: 1
• Clip Center: 12 inches
• Weight: 9 lb
• Family: MV055
• Country of Origin: Mexico

Product Identification

• UPC: 05171241421
• GTIN: 00051712414210
