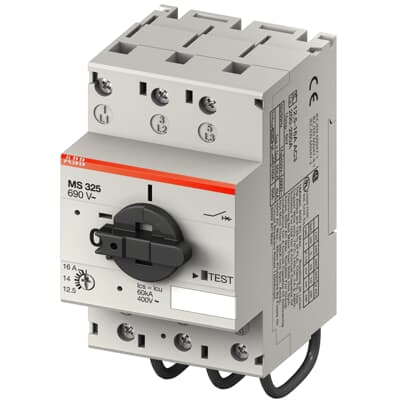

ABB MS325-20 - Motor Starter 20A 690V AC
ABB MS325-20 - Motor Starter 20A 690V AC

ABB MS325-20 - Motor Starter 20A 690V AC

ABB
Price
Save $71
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
ABB MS325-20 Motor Starter is a compact motor control and protection device designed for safeguarding motors against overloads and short circuits. It operates at a voltage rating of up to 690V AC and supports a current rating of 20A, providing reliable thermal and magnetic protection. The unit weighs 0.75 lb and features a robust construction suitable for industrial environments, with a manual motor starter configuration that integrates a switch disconnector function. It complies with international standards such as IEC 60947-2 and IEC 60947-4-1, ensuring safe and efficient operation in applications like conveyor systems, pumps, and fans.

Key Features & Specifications
  • Type: Manual Motor Starter with thermal and magnetic protection
  • Voltage Rating: 690V AC
  • Current Rating: 20A
  • Weight: 0.75 lb
  • Standards: IEC 60947-2, IEC 60947-4-1
  • Applications: Conveyor systems, pumps, fans, industrial machinery
  • Switch Type: Rotary handle
  • Configuration: 3-pole
  • Coil Voltage Maximum: Not applicable (manual operation)
  • Temp Rating: -25°C to 60°C
  • Phase: 3-phase
  • Amperage: 20A
  • Poles: 3
  • Protection: Overload and short circuit
  • Functions: Motor disconnect and protection
  • Frame Size: MS325
  • Trip Type: Thermal-magnetic
  • Breaker Type: Manual motor starter
  • Mounting: DIN rail or screw
  • Hz: 50/60 Hz
  • Horse Power: 7.5 HP at 400V
  • Enclosure: Open type
  • Nema Rating: Not rated
  • Certification: CE, CCC
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Screw terminals
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-wire
  • Installation Type: Panel or enclosure
  • Item QTY: 1
  • Breaker Frame: MS325
  • Current Rating: 20A


Product Identification
  • UPC: Not provided
  • GTIN: Not provided
